Specifications:
Brand Name: ZOHD

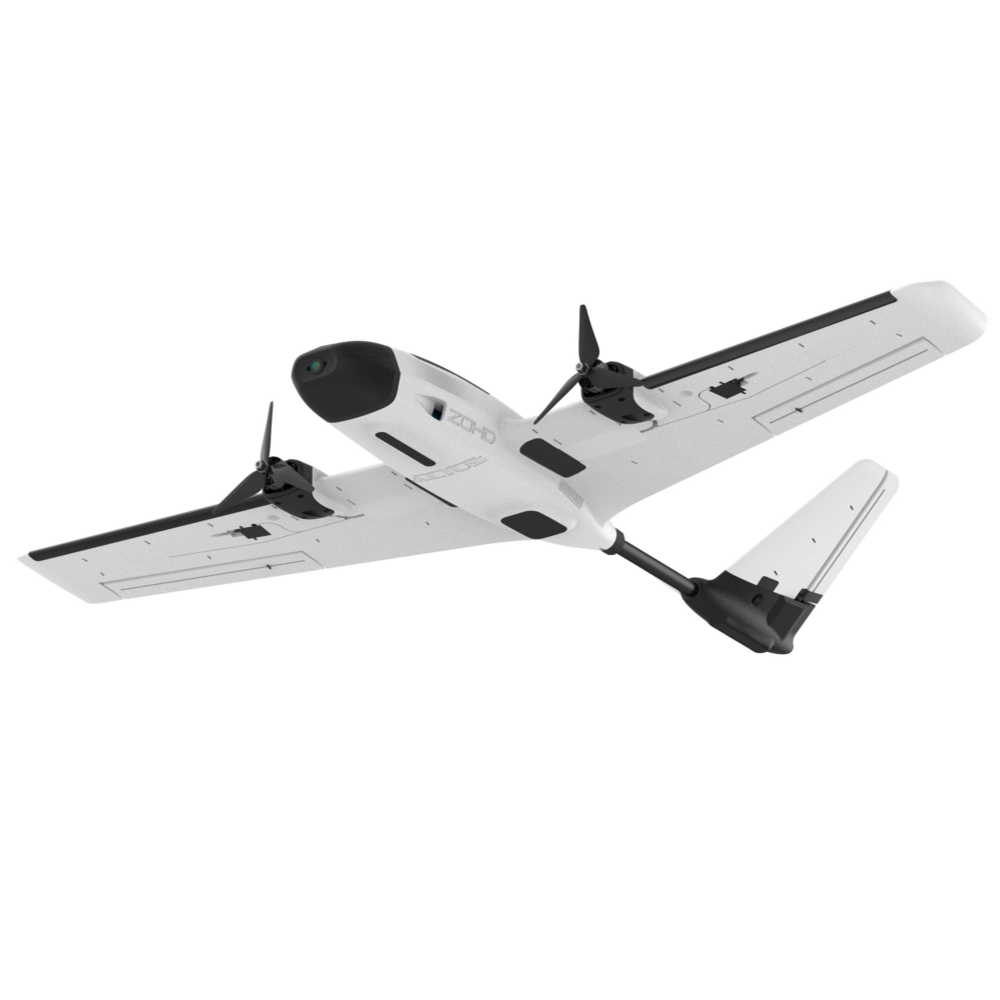

Item Name: Altus
Material: High-Quality EPP
Wingspan: 980mm (38.58′)
Length: 770mm (30.31′)
Version: KIT, PNP (optional)
KIT Empty Weight: 365g
PNP Empty Weight: 545g
Recommended ZOHD Power Combo Configuration
– Twin Motor: 2204-1870KV
– Twin ESC: 30A w/5V 2A BEC
– Servos: 4pcs 9g metal gear servo
– Propeller: 3 blades R42
– Recommended Battery: Lipo 4S 2200-3700mAh or ZOHD Lionpack 18650 4S2P 7000mAh, Click Here
– Radio System: 2.4GHz 6CH
Recommended Flying Capability:
– Min. recommended speed: 30km/h
– Max. Speed (with ZOHD power combo): 120km/h
– Cruise speed (with ZOHD power combo): 70km/h @ 5A approx.
– Max recommended takeoff weight (with ZOHD power combo): 1200 grams approx.
– Recommended max. Throws: 12mm
Features:
– Versatile Power Combo: The Altus is equipped with a powerful Twin Motor (2204-1870KV and Twin ESC (30A w/5V 2A BEC), ensuring dynamic flights and impressive speeds up to 120km/h.
– Easy Assembly, Portable Design: Experience glue-free assembly and the convenience of a detachable main wing and tail wing, making the Altus a portable companion for outdoor adventures.
– HD Camera Compatibility: Capture breathtaking moments with the nose camera bay compatible with popular HD Action cameras, compatible with GoPro, DJI, and RunCam, supported by specially designed foam for a secure fit.
– Aerodynamic Excellence: Thanks to the aerodynamically designed FPV gear pockets in both wings, reducing, interference and maintaining stability during flights. The Altus features a highly efficient NACA air cooling system to keep your FPV gear performing at its best.
– Construction: Molded with tough EPP material and reinforced with a built-in CF spar, the Altus promises super stable flying capabilities and remarkable crash resistance, ensuring durability for countless flights.
– Precision Control: Enjoy precise control with the built-in CF rod in the control surface and a high-accuracy ball link control system, providing agile and quick responses to your commands.
– Extended Flight Time: The large battery bay accommodates Lipo 4S 2200-3700mAh or ZOHD Lionpack 18650 4S2P 7000mAh，offering extended flight times for uninterrupted aerial exploration.
– Upgrade Ready: The Altus comes with a reserved VTOL capability for future upgrades, ensuring your FPV adventures are always at the forefront of technology.
English Manual, Click Here
KIT Version Included:
1x ZOHD Altus EPP RC Airplane KIT
KIT package size: 450*250*160cm
KIT package weight: 710g
Note: Motor, ESC, Servo, Propeller, Transmitter, Receiver, Battery, Charger, FPV Equipments and Glue are not included.
PNP Version Included:
1x ZOHD Altus EPP RC Airplane KIT
2x 2204-1870KV Motor
2x 30A w/5V 2A BEC ESC
4x servo
2x 3 Blades Propeller
PNP package size: 450*250*160cm
PNP package weight: 830g
Note: Transmitter, Receiver, Battery, Charger, FPV Equipments and Glue are not included.
