Description

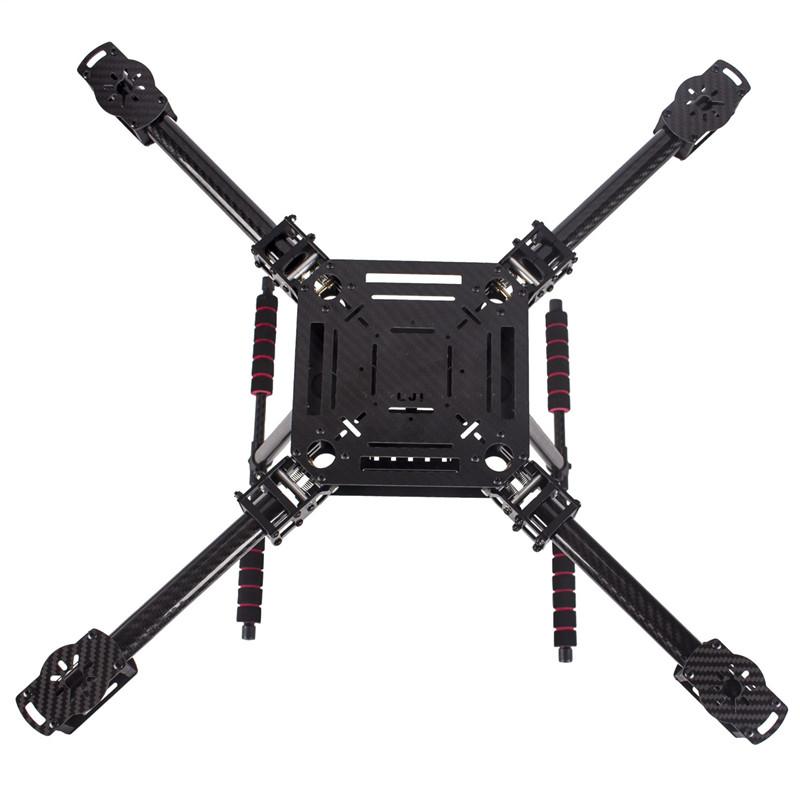

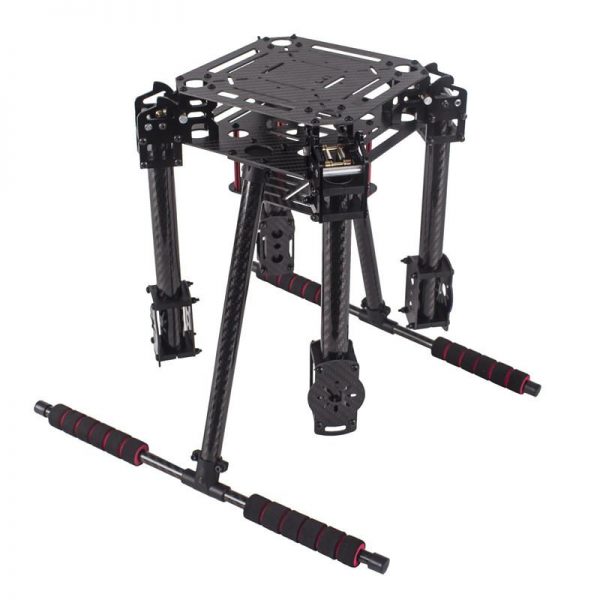

ZD550 550mm Wheelbase Carbon Fiber Umbrella Folding RC FPV Frame Kit with Landing Skid
Specification:
Item name: ZD550 frame kit
Diagonal wheelbase: 550mm
Landing gear height: 260mm
Material of the main board : 3k full carbon fiber
thickness of the main board : 1.5mm
Center board : 150x150mm
Cemter board center high: 36mm
Hanging expansion board height: 45mm Width: 45mm
Weight: 630 ±2 g
Recommended configuration: (Not inlcuded)
Motor: 3508 380KV / 4110 420KV
Prop: 12-15 inch CW CCW
ESC: 30A(2-6s); 40A (2-4S)
Flight control: APM opensource flight control
Battery: 4-6S Lipo
Package Included:
1 x Frame Kit
