Description

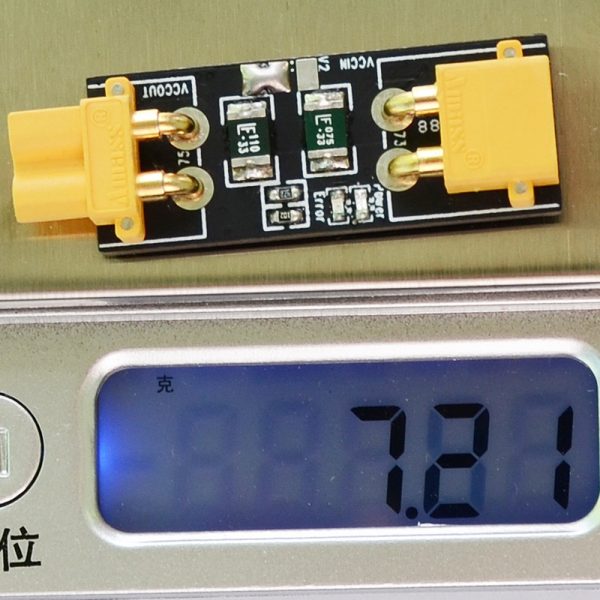

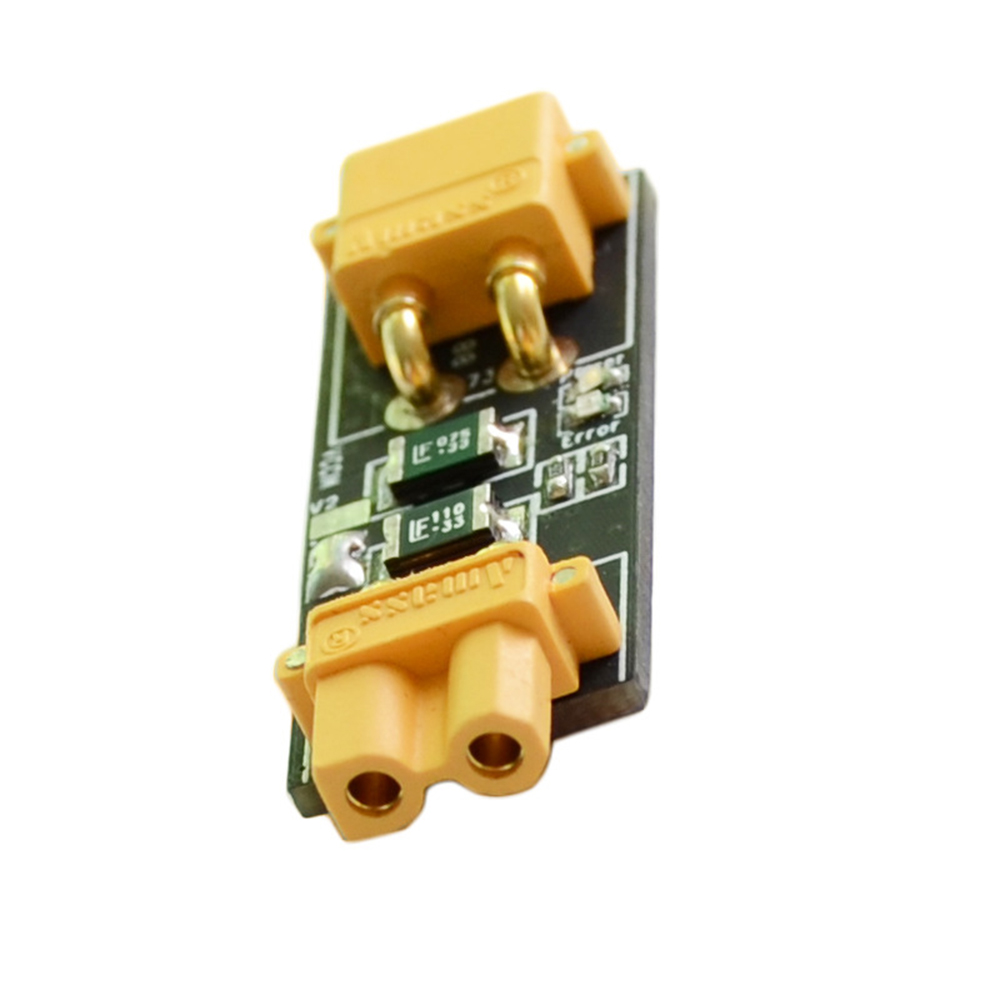

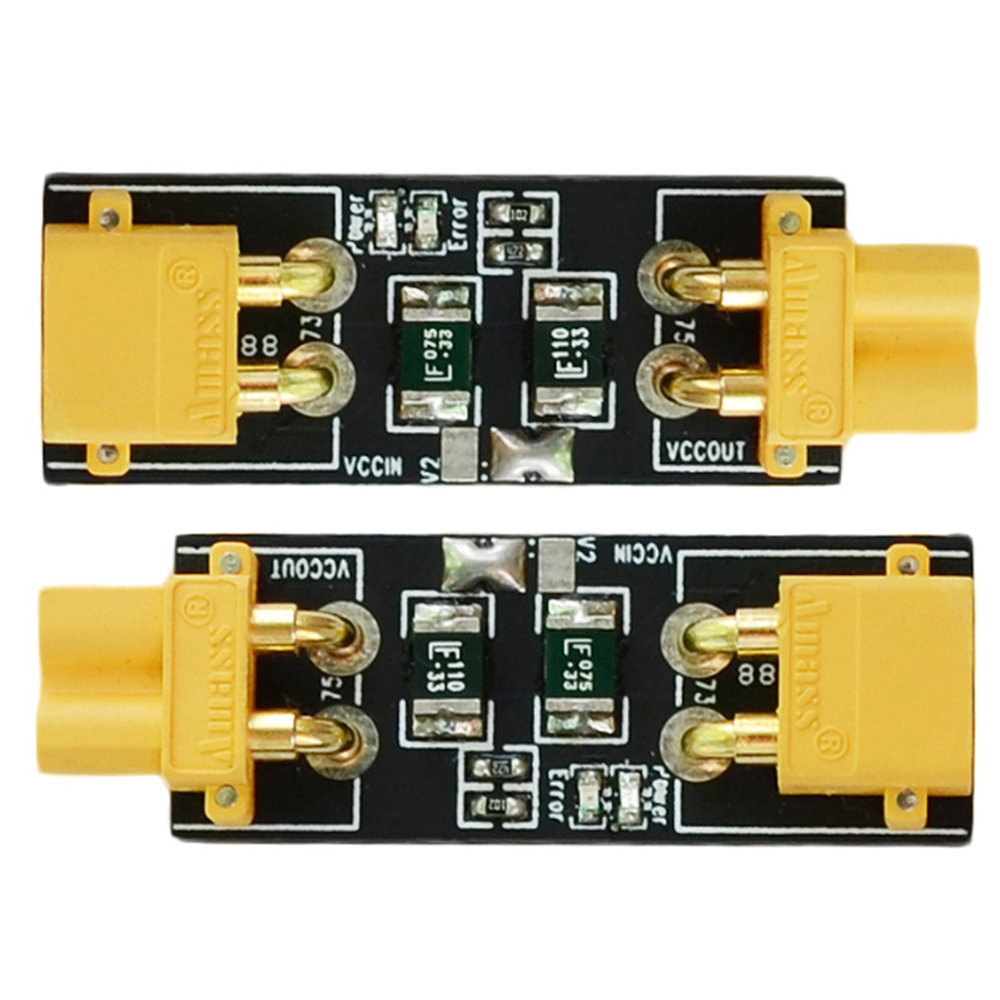

YRRC 1-6S 33V Amass XT30 Smoke Stopper Connecting Line Short Tester Circle Breaker, it helps to connect the line or circle correctly, reduce connection error and explosion caused by the error connection, but the smoke stopper could not 100% to detected the connection error danger, Try to connect line correctly or do not connect circle go-as-your-please.
Descrption:
Brand: YRRC
Product: XT30 Smoke Stopper Circle Breaker
Battery: 1-6s Capable(33v max)
0.5A Hold current,1A Trip Current
1.1A Hold current,2.2A Trip Current
0.5S Trip time
How to use it:
– Green Light means it is ok
– Green Light dim or blinking,it means Fuse tripped.
– Red Light means connection error
– Red Light dim or blinking, it means Fuse tripped
– Optional 0.5A Hold Current, 1A Trip Current
– Optional 1.1A Hold Current, 2.2A Trip Current
Unplug for 10 seconds can reset the Solid State Smoke Stopper.
Package:
1* YRRC XT30 Smoke Stopper
