Description
Yelo 125mm 2.5mm Arm 2.5 Inch Carbon Fiber Toothpick Frame Kit for RC Drone FPV Racing
Specification:
Model: Yelo
Item Name: 125mm Wheelbase 2.5 Inch Racing Frame Kit
Wheelbase: 125mm
Material: Carbon Fiber
Arm Plate Thickness: 2.5mm
Bottom Plate Thickness: 2.5mm
Top Plate Thickness: 1.5mm
Side Plate Thickness: 1.5mm
Camera Mounting Width: 14mm
Inner Standoff Height: 23mm
Motor Mounting Hole: 9x9mm

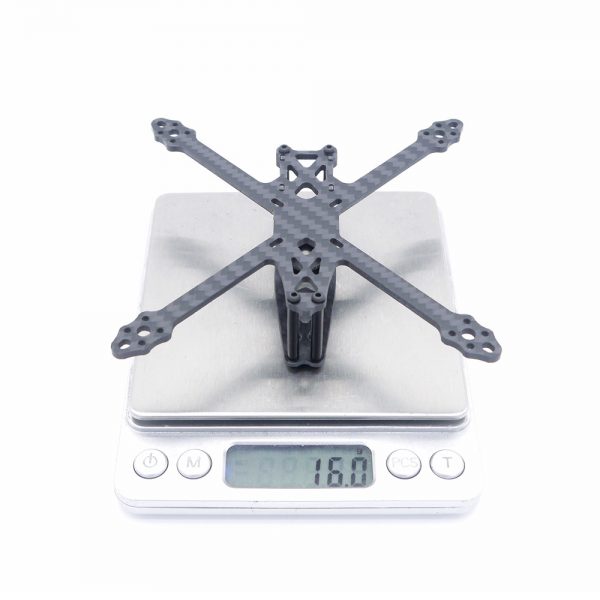

Weight: 16g
Recommend Parts:
Flight Controller : 16x16mm / 20x20mm F3/ F4 FC
Brushless ESC: 12-20A ESC
Brushless Motor: 11xx serise motor ( 9x9mm mounting hole)
Propeller: 2.5 Inch Max.
Lipo Battery: 2-3S Lipo
The following Parts are Compatible: ( Not Included)
FC & ESC Stack: 16x16mm iFlight SucceX F4 FC & 12A ESC
Brushless Motor: T-MOTOR F15 1106 6000KV 2-3S Motor
Propeller: 4 Pairs Gemfan RotorX 2535 2.5 Inch 2 to 4-Blade Propeller
FPV Camera: RunCam Nano 2 700TVL 1.8mm/2.1mm FPV Camera
Lipo Battery: Gaoneng GNB 7.4V 450MAH 80C 2S Lipo Battery XT30 Plug
Package Included:
1x Yelo 125mm Frame Kit
