Description
Description:
Brand: Yahboom

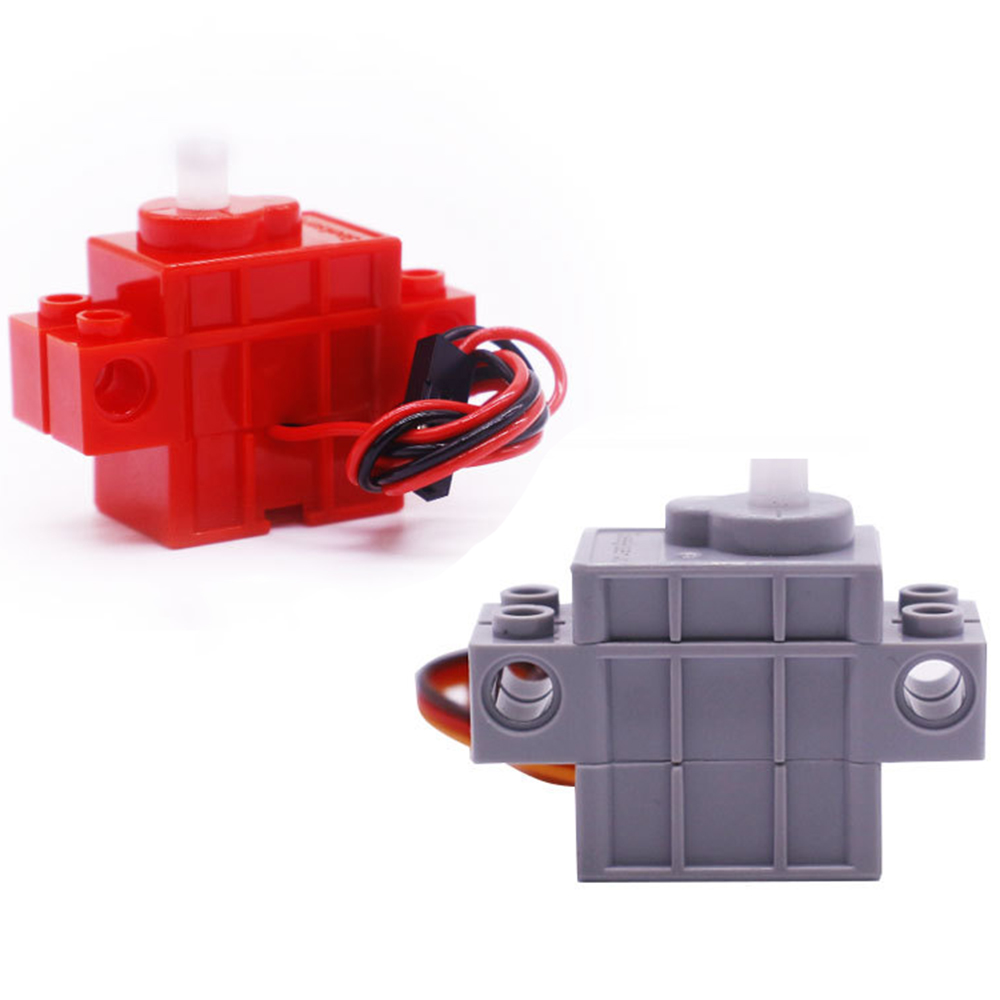

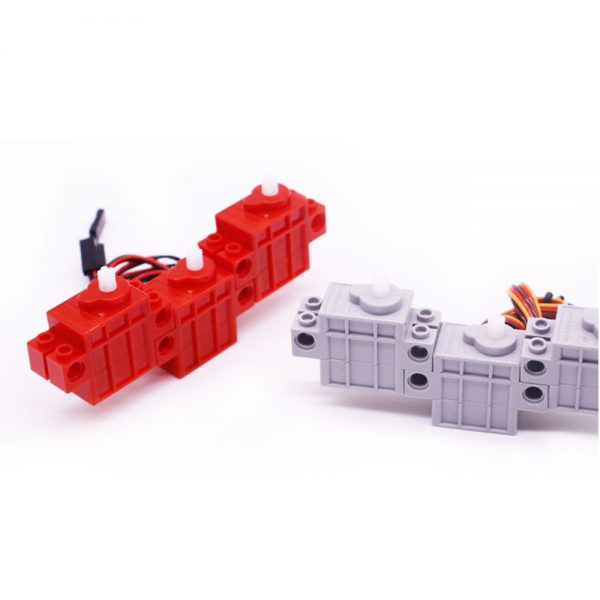

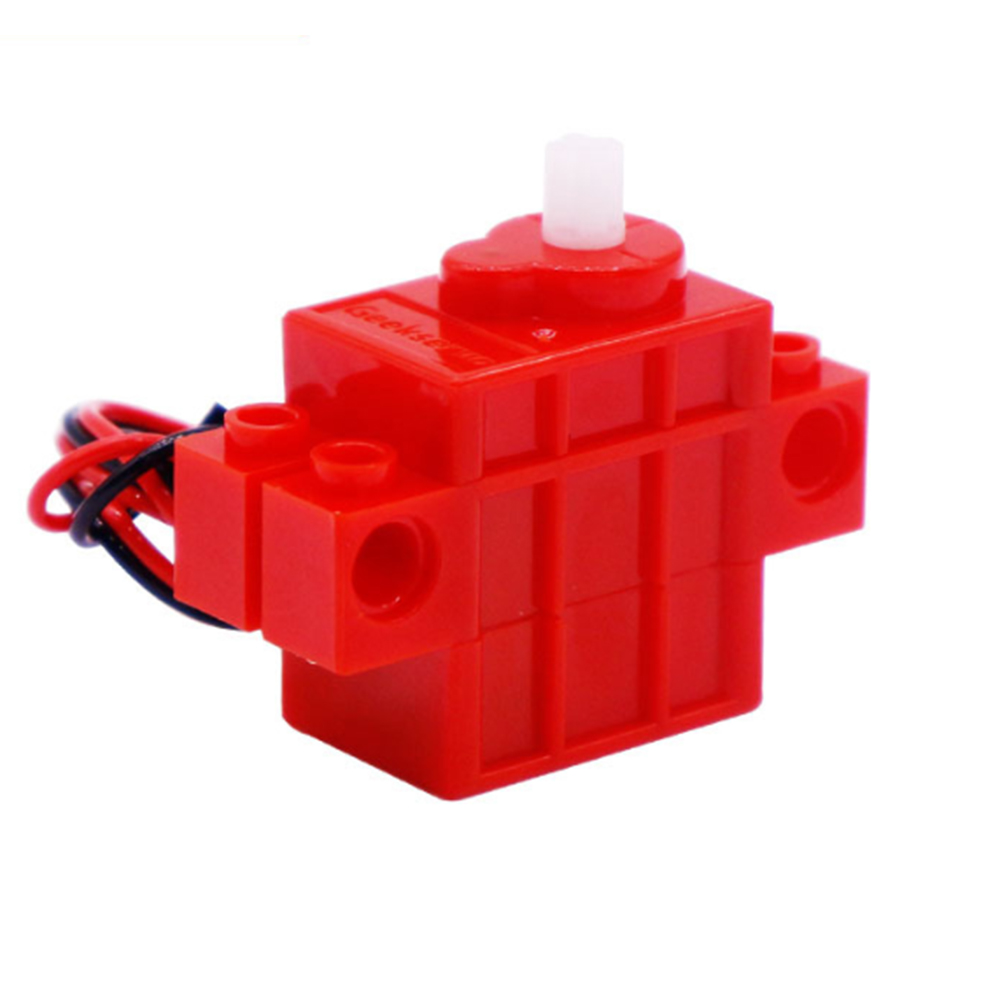

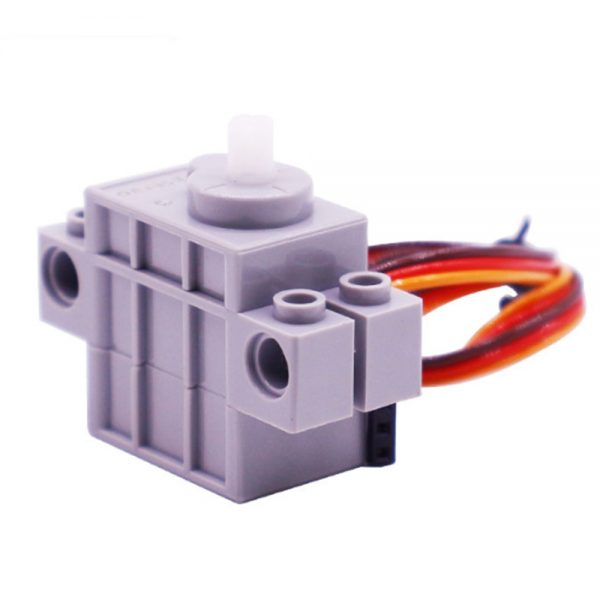

Product: 9g Micro Servo
Color: Red Motor/Gray Servo
Operating Voltage: 3.3V-6.0V
Rated Voltage: 4.8V
Rated Current: 200MA
Stall Current: 700MA
Torque(max): 500g.cm
Rotation(gray): 0-270°
Angle Speed: 60°/0.12s
Rotating Speed(Red): 70rpm(at 3.0V)
Pulse(Gray):
-45°(600us)
90°(1500us)
225°(2400us)
Package:
1* Yahboom 9g Micro Servo/Motor
