XXD A2212 1000KV Brushless Motor with 30A ESC Servo Tester Power Supply for F450 S500 Quadcopter

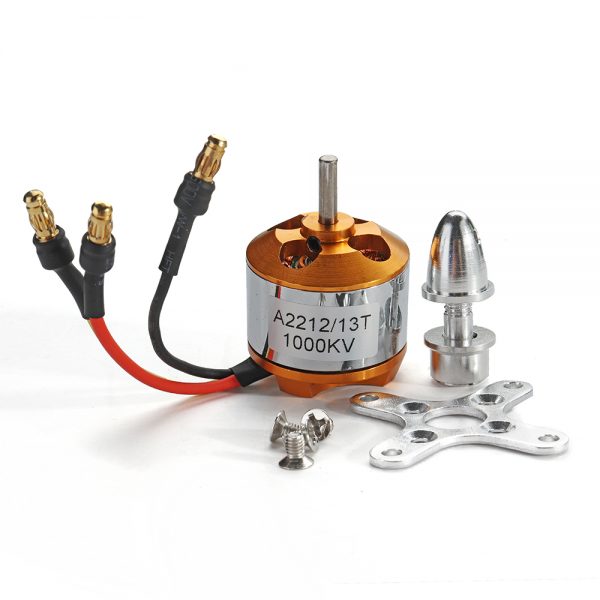

Mode: A2212

KV:1000 KV

Max Efficiency: 80%

Max Efficiency Current: 4-10A (>75%)

Current Capacity: 12A/60s

No Load Current @ 10V: 0.5A

No. Of Cells: 2-3 Li-Poly

Motor Dimensions: φ27.5 x 27mm

Shaft Diameter: φ3.17mm

Weight: 48g

Suitable for RC FPV Racing Drone





Output: Continuous 30A, burst 40A up to 10 Secs.

Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery

BEC: 2A / 5V (Linear mode).

Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.(BLM: Brushless Motor)

Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in

Weight: 25g / 0.9oz





Voltage consumption: DC4.8-6V

Size: 48 x 42 x 17mm

Color: Blue

Net weight: 7g

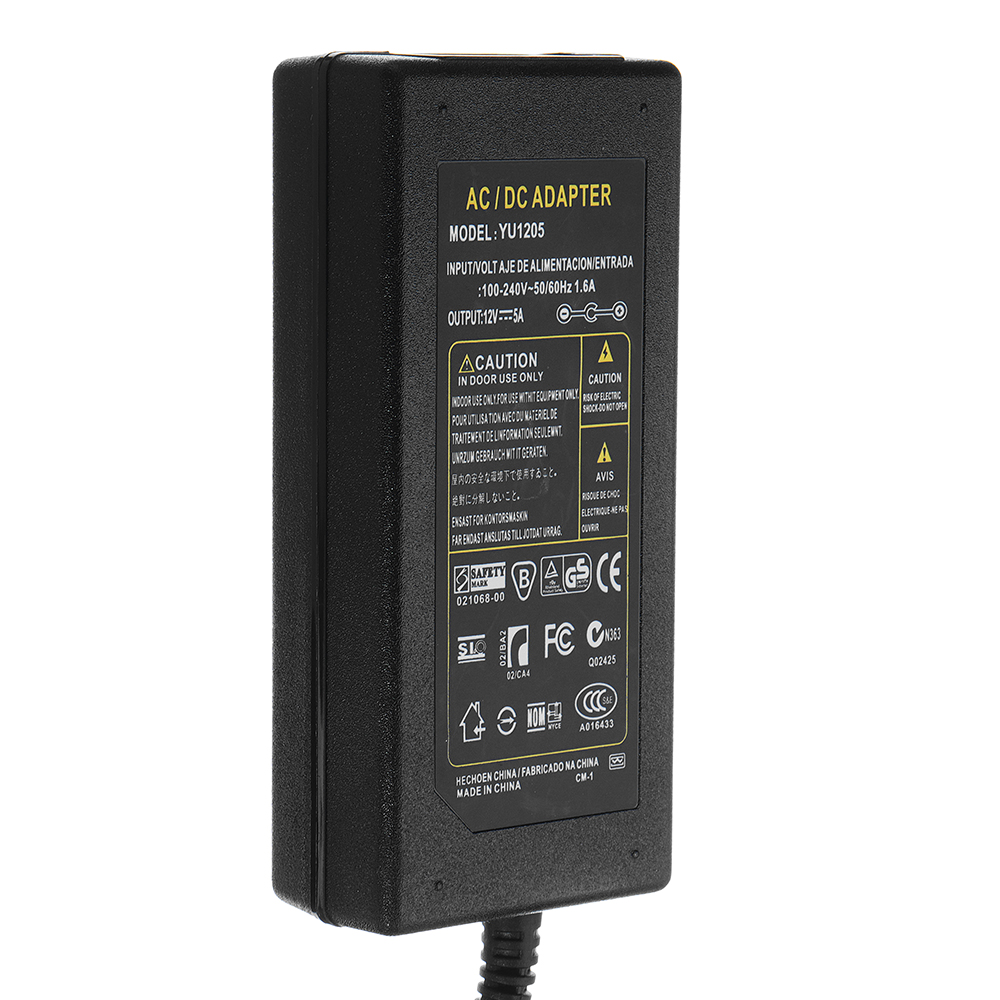

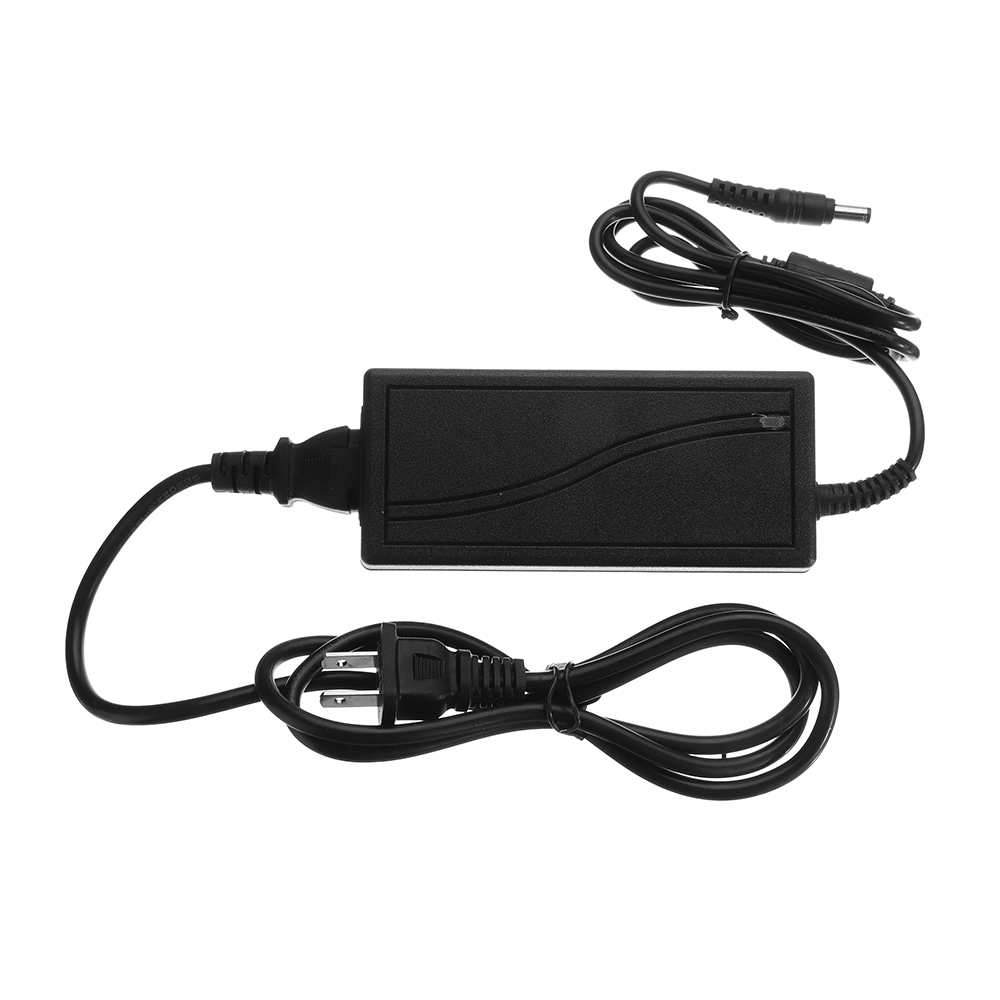

Input:100V-240V 50/60Hz 1.6A

Output: 12V 5A





1.Safety Arming Feature: Regardless the throttle stick position, the motor will not spin after battery connected.

2.Throttle Calibration: Throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.

3.Programmable Items:

 Brake Setting: brake enabled / brake disabled.

 Battery Type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).

 Low Voltage Protection Mode(Cutoff Mode): Gradually reduce the output power / Cutoff the output power.

 Low Voltage Cutoff Protection Threshold (Cutoff Threshold): low / medium / high.

 Start Mode: normal / soft / very soft.

 Timing: low / medium / high.

 Reset: reset all the programmable items to their default settings.

4.Full Protection Features: Low voltage cutoff protection / Over-heat protection / Throttle signal lost protection.





CCPM Servo Consistency Master / Servo tester

The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

There are 3 modes to check servos or ESC:

Manual mode: turn the knob with different speed, check the reaction time.

Neutral mode: make the servo go back to the neutral point.

Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.

It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.

You can also connect 1-3 ESC to test and compare their reaction time respectively.

It can connect 3 servos of the CCPM helicopters and select servos.

It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

Packaging included:


1X XXD A2212 1000 KV Brushless Motor
1X 30A ESC
1X Servo Tester
1X Power Supply
1X 1047 Propeller
