Description
XT60 Male Female Bullet Connector Plug For Lipo Battery RC Drone FPV Racing Multi Rotor
Description:
Item No: XT60

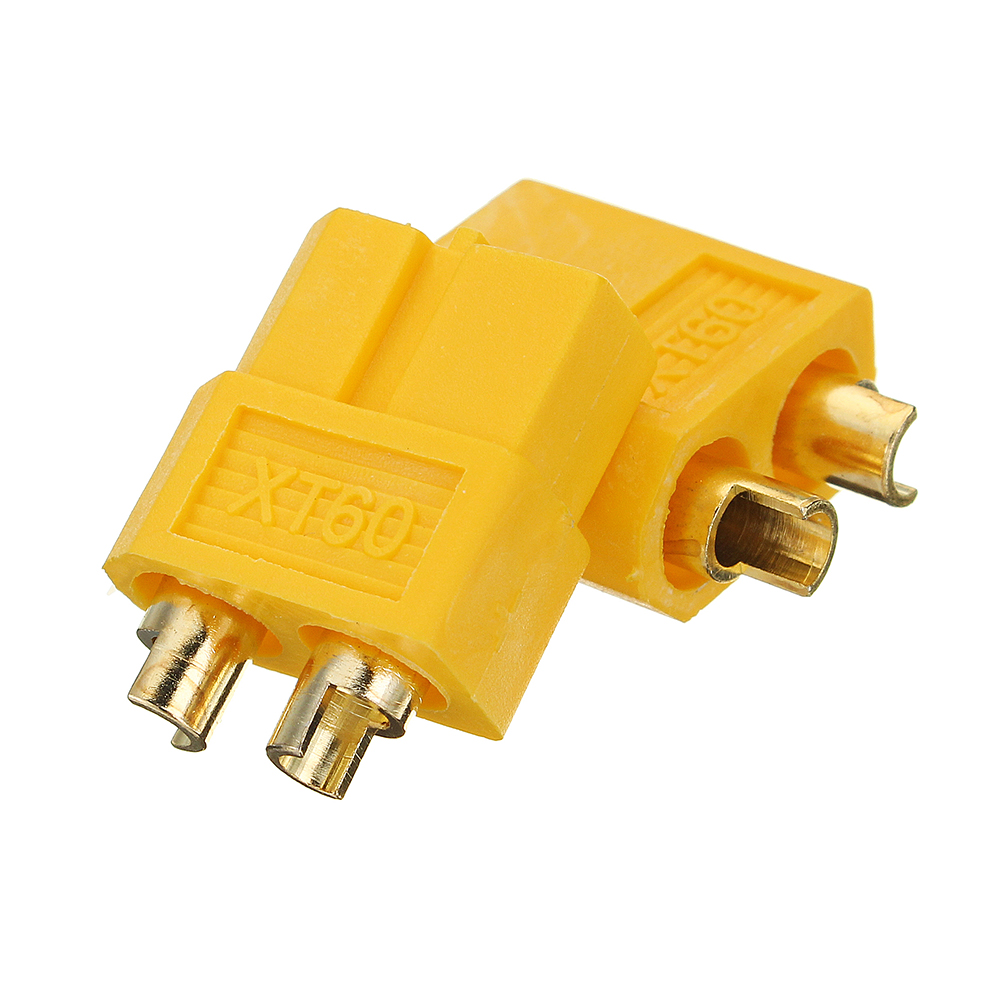

Item name: XT60 Male Female Bullet Connector
Application scope: battery, electronic speed controller and charger.
Amperage rating: 30Amps
Bullet connector: 3.5mm
Weight: 6.7g/set
Features:
A new generation of model plug patent product, female end for battery and male end for charger.
The design of jacket rear concave can make the shrink tube inserted more deeply to protect joints from water vapor against and easy to solder.
Precision molds processing, connect closely without any gaps, well leakproofness.
Clear "+"-" sign
Gold plating, use the large flow-line design banana plug and have a larger contact area, although 3.5mm banana plug, can be sustained a constant current 80A, 120A high current peak.
New style housing and groove slot design looks more beautiful make the connection stronger and avoid any mistake.
Non-slip insulator, easy to connect.
180 degree outward design of tail make wire can be easily soldered.
Package included:
1 x XT60 Male Connector
1 x XT60 Female Connector
