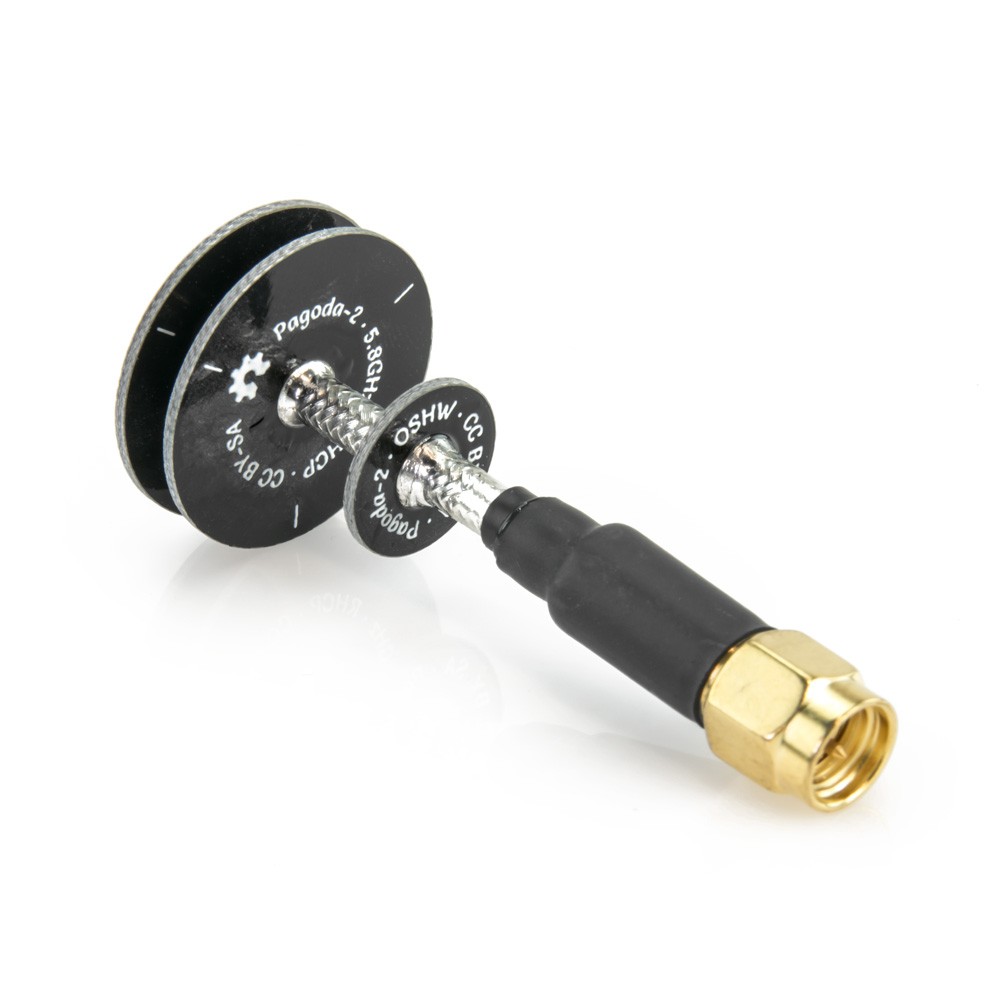

XILO Pagoda 2 5.8GHz Circular Polarized Omni Directional FPV Antenna LHCP/RHCP for RC Drone
The XILO Pagoda 2 Antenna is an omnidirectional circularly polarized 5.8GHz FPV antenna with solid all-around performance while maintaining a small profile.
The XILO Pagoda 2 Antenna has an excellent omnidirectional radiation pattern along with a good axial ratio, giving you reliable, even coverage.
Keeping with the XILO spirit, this antenna focuses on simple effective design for great performance, all while keeping costs as low as possible.
More information on the Pagoda 2 Antenna design can be found here.
Description:
Brand: XILO
Gain: ~2dbic
Brand: XILO
Gain: ~2dbic
Axial ratio: < 1.3
Bandwidth: 5.5GHz-6.05GHz
Radiation Efficiency: 95%
SWR: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Weight: 7.5g
Size: 54mm x 22.5mm
Cable: Semi-rigid RG402
Connector: SMA (crimp shield + heat shrink)
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
Polarization
Right Hand Circular (RHCP)/Left Hand Circular (LHCP)
Package Included:
1x XILO Pagoda 2 5.8GHz Antenna (LHCP/RHCP)
