Description
Description:
| Item | Specification | |

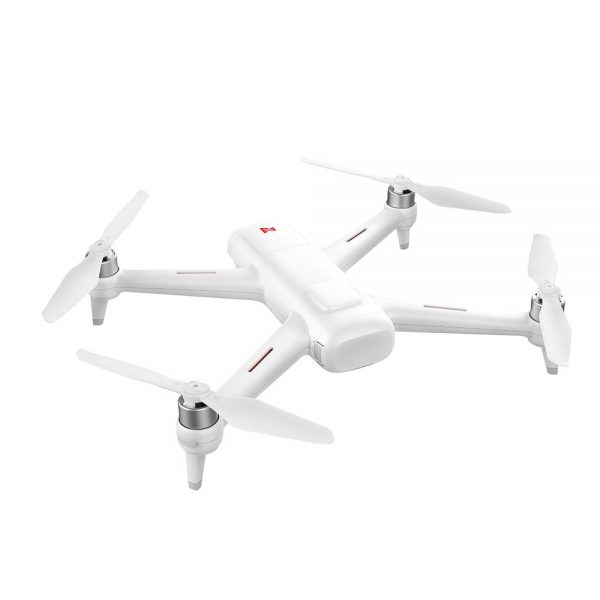

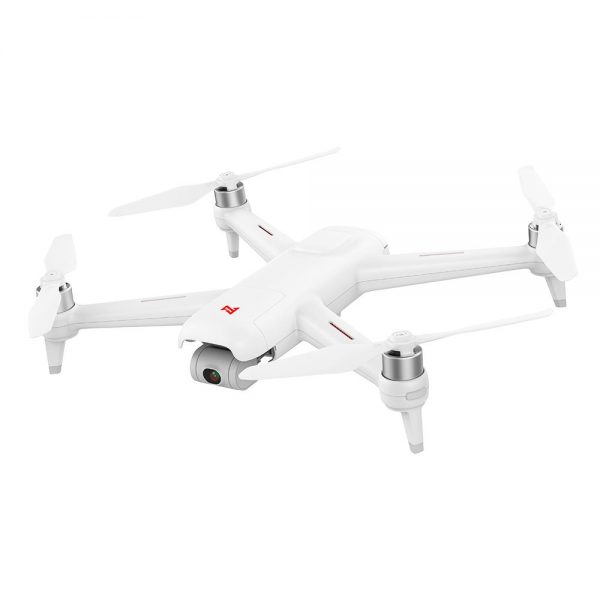

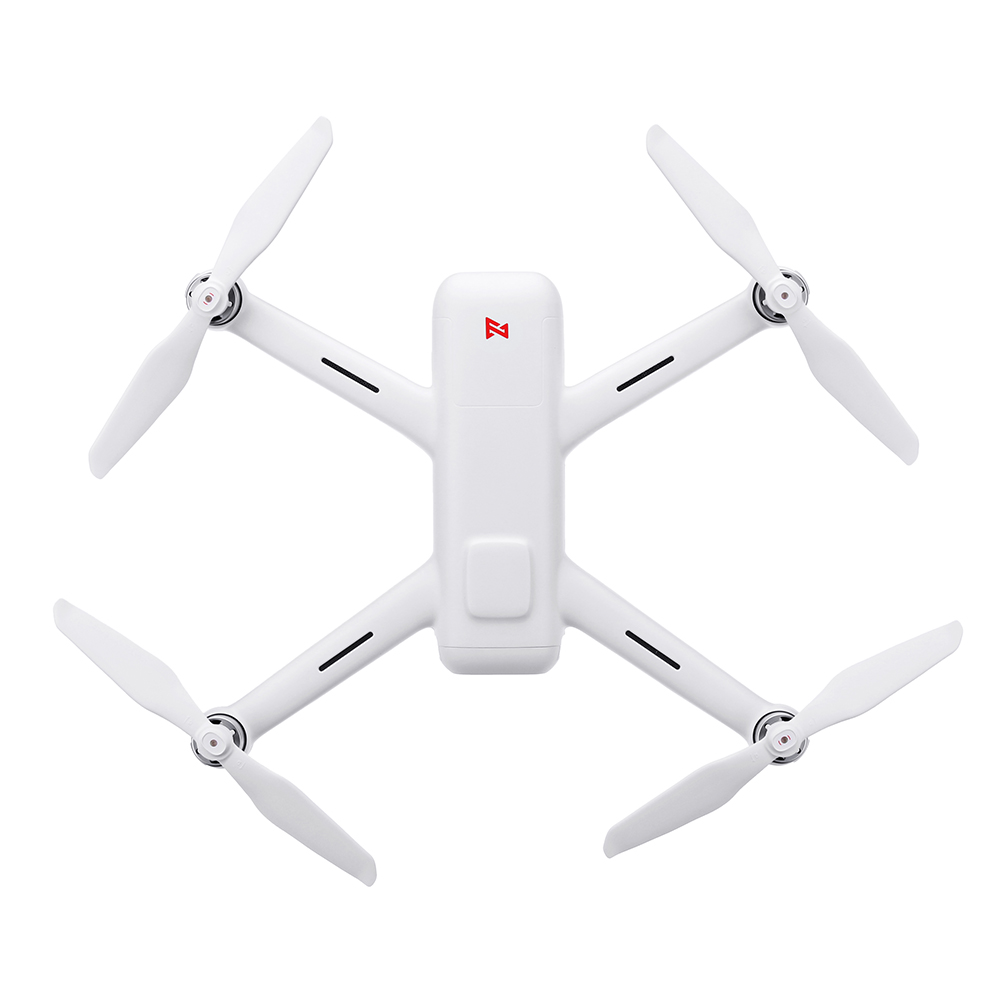

| FIMI A3 RC Quadcopter | Model: A3 Color: White Dimension: 285*229*69mm Diagonal Size: 323mm Weight: 560g Hover Accuracy: when GPS Positioning is active, Vertical: ± 0.5 m & Horizontal: ± 1.5 m Max ascending speed: 6 m/s
Max descending speed: 5 m/s Max cruising speed: 18 m/s Max R/C distance: about 1km Flying Limited Altitude: 500 m Flight time: 25mins (25mins flight time if fully charged by 4.35HV balance charger; about 21mins flight time if charged by original charger) Wind resistance: ≤ 4 Satellite positioning systems: GPS+GLONASS Operating frequency: 2.4-2.483GHz; 5.725-5.850 GHz (40CH) Battery: 11.1V 2000 mAh 3S Lipo Battery Package Weight: 1.68kg Package Size: 344×292.5x107mm |
|
| Remote Controller |
Sceen resolution: 480*272
Screen size: 4.3inch Frequency: 2.4-2.483GHz; 5.725-5.850 GHz (40CH) Max R/C distance: About 1000m
Built-in Battery: 2950 mAh lipo battery with about 2.5h working time Voltage: 3.7V Charge port type: Micro USB DVR: 720*480 video resolution |
|
| Gimbal | Controlled Rotation Scope: 0° ~ -90° Pitch angle Stabilizaton: 2-aixs mechanical and 3-aixs electronical gimbal |
|
| HD 1080P Camera | Lens: FOV 80°
Aperture: f2.0
Focal Distance: 3.54 mm
Equivalent Focal Distance: 27mm
Sensor: 1/3.2" CMOS
ISO Range: 100 – 3200 for video; 100 – 1600 for picture
Shutter Speed: 4 ~ 1/8000 s
Max Bitrate: 60Mbps
Max Photo Resolution: 8M 3264*2448
Video Resolution: 1920×1080 30 fps / 1920×1080 25 fps
File System: FAT32 / exFAT
Image Format: JPG
Video Format: MP4
DVR: 1920×1080 30 fps / 1920×1080 25 fps |
|
| Adapter | Rated Output: 14V 0.8A Rated Input: 100-240V ~ 50/60Hz 0.3A Rated Output Power :11.2W |
|
| Balance Charger |
Rated Output: 11.1V 0.8A
Rated Input:14V 0.8A
Applicable Battery: 3S
Charging Limit Voltage: 12.75 V
Rated Voltage: 11.1 V
Rated Capacity: 2000 mAh / 22.2 Wh
Weight: about 162g
|
|
| Propeller |
Item Name: Quick-release propeller
Length: 7.5inch
Pitch: 3.6inch
|
|
Remarks: The flight time is tested with constant speed in breeze, the maximum flight time is 21mins for the single cell voltage at 4.2V;
4.35V HV Lipo Battery Charger Link: URUAV 2-3S HV 1.5A Lipo Battery Charger (Tested by FIMI)
Feature:
1. HD 1080P camera powered by Ambarella ISP processor and Sony CMOS sensor, provides perfect HD picture and video.
2. The 2-aixs mechanical and 3-aixs electronical gimbal provides stable and smooth footage in any situation.
3. With lightweight design, the drone flies faster.
4. Wth quick-release propellers, fast and powerful propulsion with durable,well balanced design.
5. Flight time is up to 25mins with 11.1V 2000mAh lipo battery.
6. 1km range 5.8G real time transmission system.

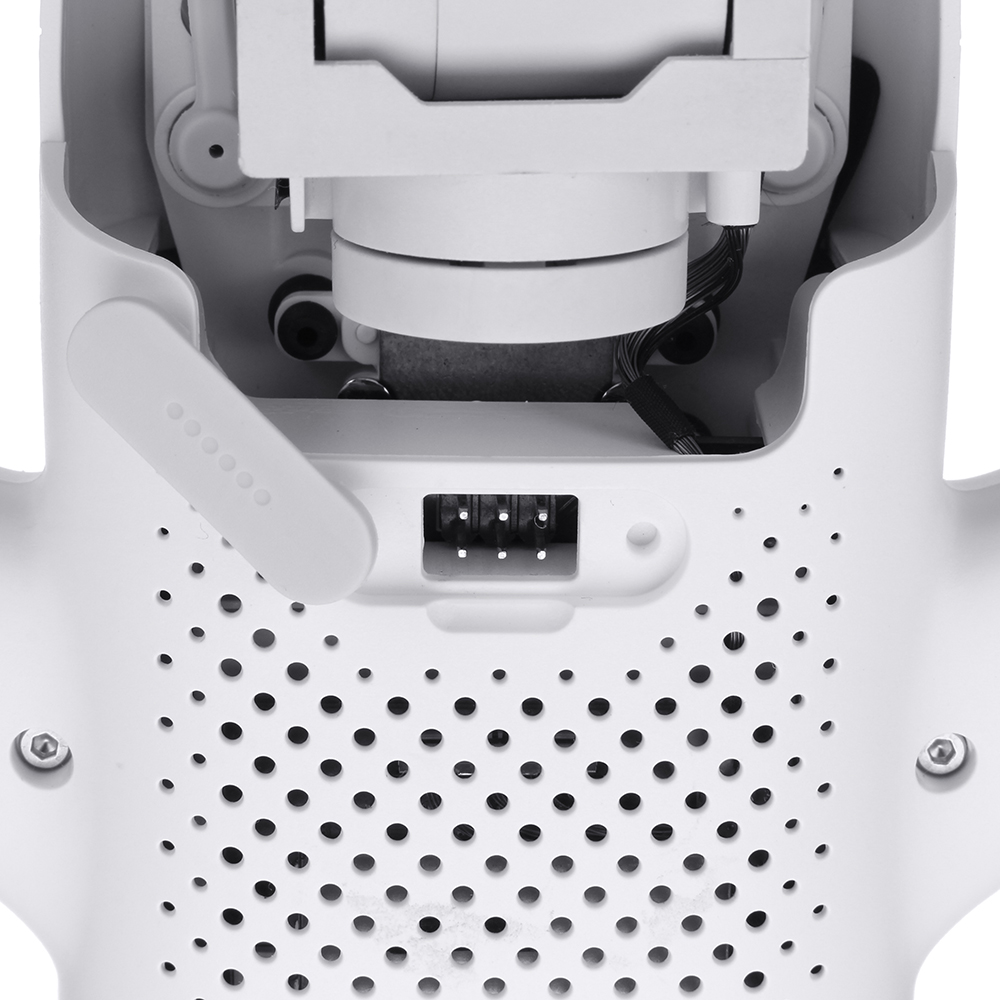

7. With DIY port, you can explore your way to play with the drone, like driving a servo, lighting a led.

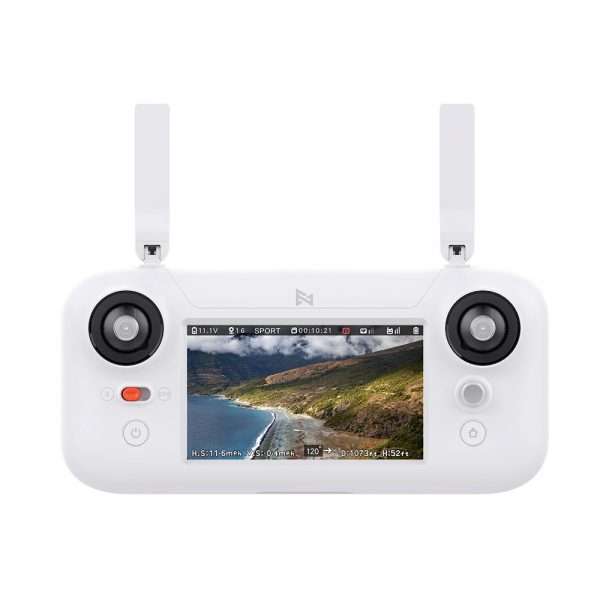

8. Remote Controller is built-in LCD screen, DVR, and User Interface.
9. Headless Mode,no need to adjust the position of aircraft before flying .
Functions: Up/down, Forward/backward, Turn left/right, Sideward flight, One key taking on/off, GPS mode, Headless mode, One key return, Follow me, Orbit, Fixed-wing mode, Dronie, DIY supported, Low battery protection, Automatic return losing signal, mode 1/ mode 2 switchable
Package Included:
1 x RC Quadcopter( with camera)
1 x Transmitter
1 x Gimbal
1 x 11.1V 2000mAh Lipo Battery
1 x USB Cable
6 x Propeller
1 x Charging Cable
1 x Balance Charger
1 x Manual(Download)
