Description
The Raspberry Pi 3 Main Board will be upgraded to 3B+ from Nov 21th, 2018
English version control software download click here.
More information, please click here
Note: You need to install obstacles Avoid Infra-red and Ultrasonic sensor to achieve line tracking function.(Sensors not included)
New package without CD. CD file Please click here.
Passcode: lq1y
Description

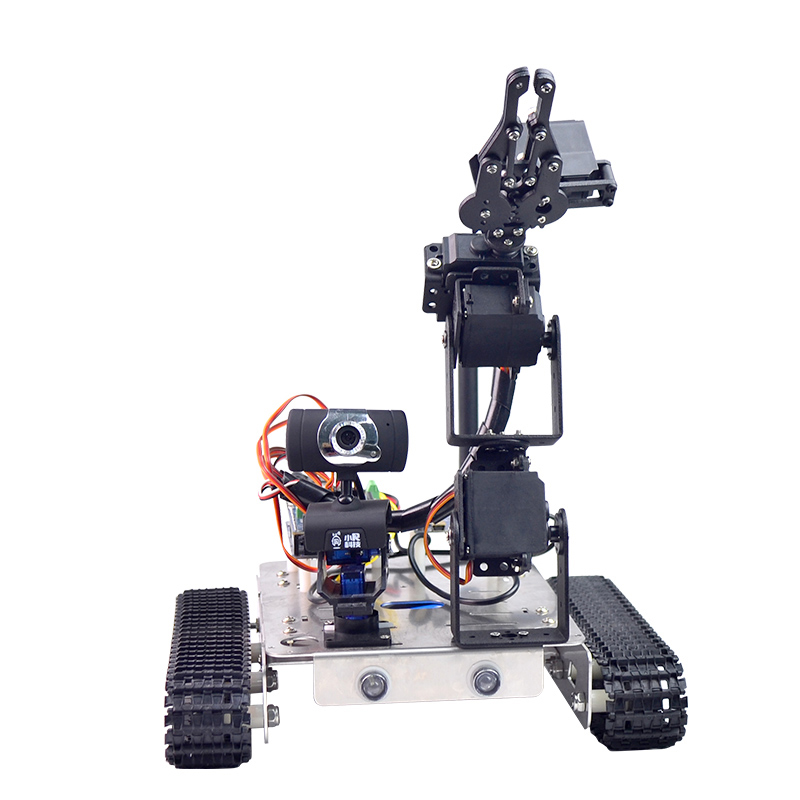

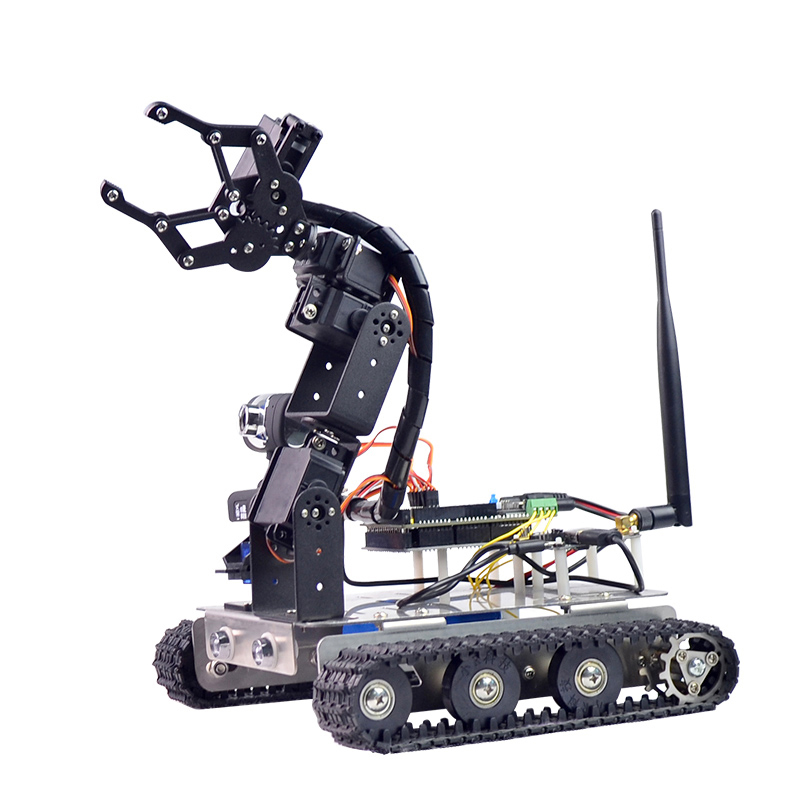

Name: Wifi video smart GFS robot
Motor chip: L298P 2 ways motor chip
Power: 12V lipo battery set (included)
Chassis: Metal
MPU: Arduino
Wireless range: support 802.11b/g/n Max 150Mbps
Signal: not over 80m (open distance)
Control: IOS app/Android app/ PC
Frequency: 2.400-2.4835GHZ
Camera: Adjustable
Size: 220x256x260mm
Weight: 1.85kg
http://120.24.65.205:8888/xrsoftware/
Package
1x metal chassis
1x Arduino main board/RaspberryPi3B+
1x PWR.AR2 motor power board
1x Camera
1x WiFi module(RasPi version not included)
1x 5Dbi Antena(RasPi version not included)
1x gimbal
2x servo
1x 2200mah battery
1x Charger
1x Screew set
1x 4DOF robot arm
3x cable
2x light
1x CD
1x Manual
,
,
,
,
,
,
,
,
,
,
,
