Description

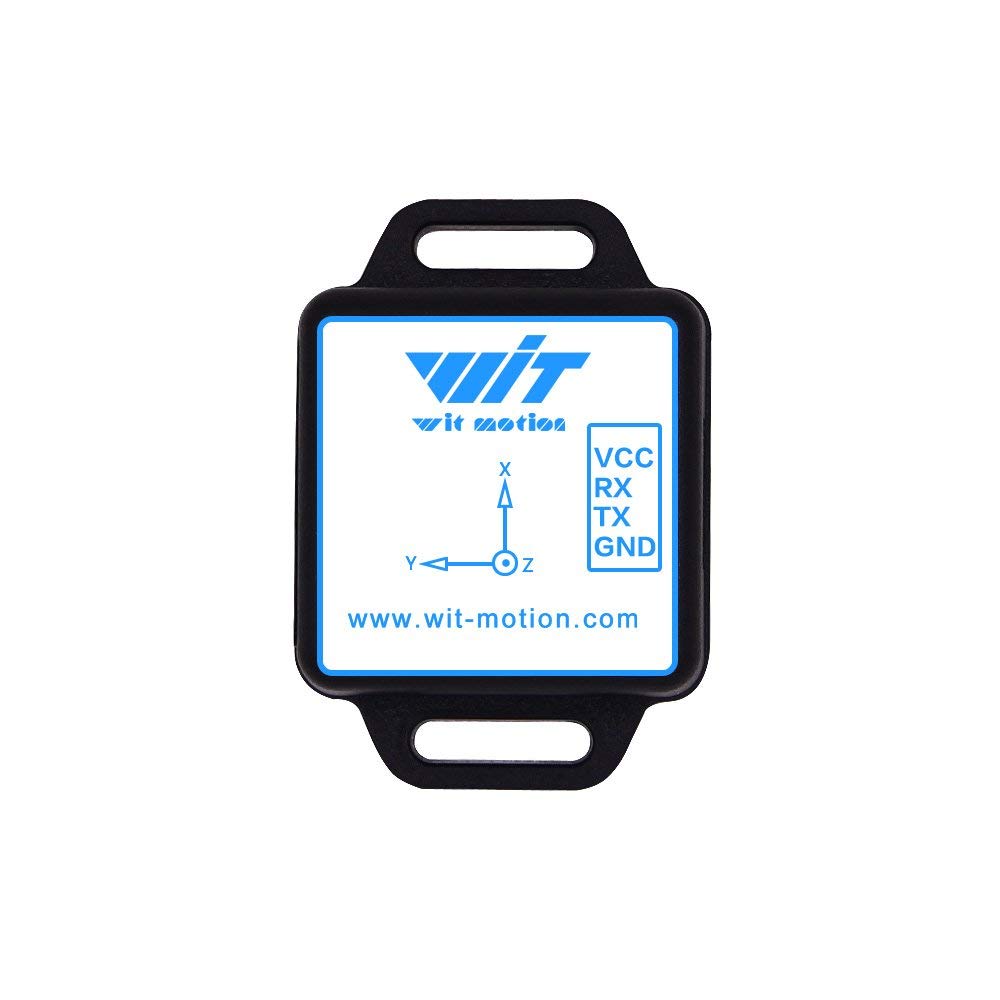

WIT MPU6050 3-Axis bluetooth Digital Accelerometer 6-Axis Gyro Gyroscope AHRS Transducer Tilt Vibration Sensor Arduino BWT61CL
Product features
High precision Pitch Roll Yaw angle output
Embeded Kalman fiter for high precision angle output
3 axis Accelerometer ,3 axis Angular velocity,
bluetooth Serial port communication wireless,also can connect with cable
Providing PC software ,APP and 51 STM32 arduino sample code
Product document: https://wiki.wit-motion.com/english
Product description
(1)BWT61CL Gyroscope is good solution for angle measuring, acceleration measurement and angular velocity measurement,It packs a 3-axis gyro and a 3-axis accelerometer.
(2) Kalman filter combines the gyro and accelerometer to get high precision angle measurement,it can be used such as four-axis flight control and self-balancing robot,
angle measurement and depth measuring and so on.
(3)The module can get accurate attitude in a dynamic environment. Attitude measurement precision is 0.05degrees, high stability.
(4)Using high-precision gyro accelerometer MPU6050, read the measurement data by serial port,No need to study complex I2C protocol of MPU6050 .
With advanced digital filtering technology, reduce the measurement noise and improve measurement accuracy.
(5)bluetooth serial port communication wireless,also can connect to other equipment with line.
Specification :
Input voltage: 3.3V-5V
Consumption current: typical 15mA
Volume: 36mm X 51.3mm X15mm
Measuring : Attitude angle: 3 axis Acceleration: 3 Axis Angular Velocity: 3 Axis
Range: Acceleration: ± 16g, angular velocity: ± 2000 ° / s.
The data output frequency 100Hz (baud rate 115200).
Data Interface: Serial (TTL level),
Baud rate 115200kps .
Provide single-chip analytical sample code.
Note:Angle of Z axis will have accumulated error, because there is no magnetic field correction
There is no battery in it.
Packing Included
1 x BWT61CL Module 1 PCS
Download
JY61 inclinometer TTL version
https://drive.google.com/file/d/0B8PmY6nhQadKWGNJbmNoRTBtNjA/view?usp=sharing
serial port tool:
https://drive.google.com/file/d/0B8PmY6nhQadKTXBjNUFmSktwQUE/view?usp=sharing
