Description

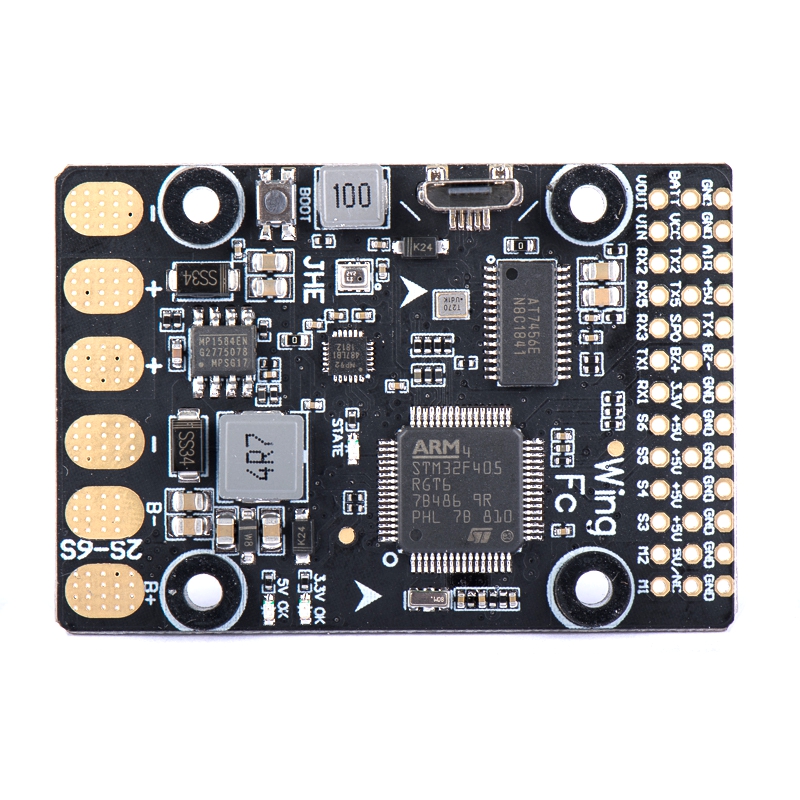

Wing FC-10 DOF Flight Controller INAV OSD Accelerometer Barometer Gyro Compass For RC Drone
STM32F405 MCU, the refresh rate is up to 168MHz, integrated MPU9250 nine axis sensors (three axis gyroscope + three axis accelerometer + three axis electronic compass) and barometer, built-in electronic compass (Compass), only need external GPS, can achieve fixed point fixed height, one key return and equal work energy, with very fast reaction, more suitable for high-speed competition. Aerobatic flight.
Features
Support INAV tuning to support OSD data return.
It has the function of partition board, and supports two simultaneous electrically adjustable output.
There are 4 PMW steering gear output to meet various fixed wing models.
It can connect to GPS and realize the function of positioning and returning. (GPS purchased separately).
Reserved BB ring interface, easy to achieve unlock, lock, search star, search and other prompts.
The built-in 5V/3A BEC output is convenient for power supply for all kinds of equipment.
Specification
Mounting:30.5 x 30.5mm,Φ4mm with Grommets Φ3mm
Dimensions:54 x 36 x 13 mm

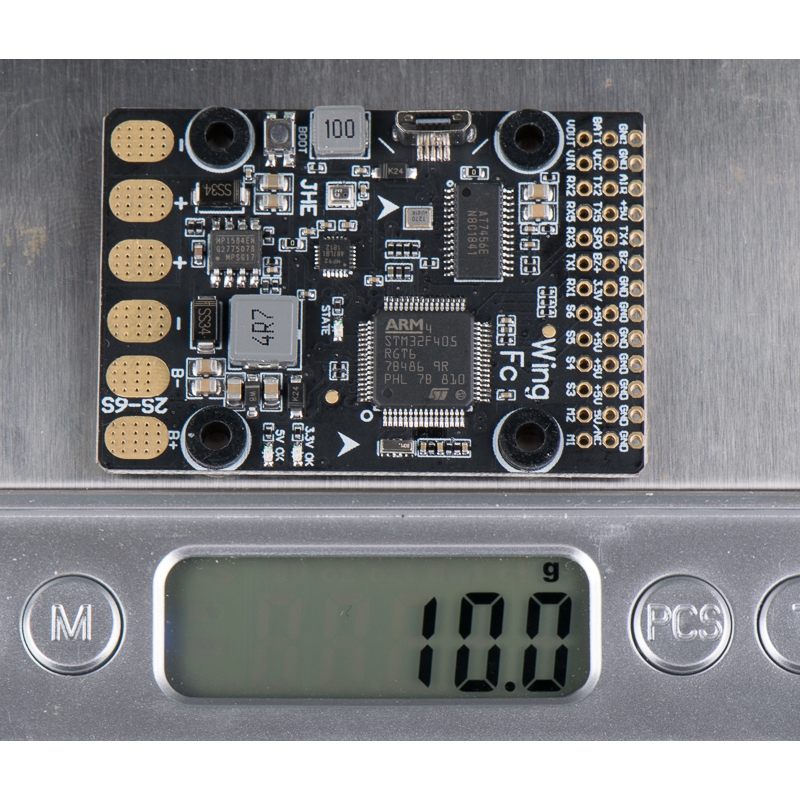

Weight:10g
MCU:168MHz STM32F405
IMU:MPU-9250 accelerometer/gyro/Compass (SPI)
Baro:BMP280 (I2C)
OSD:INAV OSD w/ AT7456E chip
Blackbox:NO

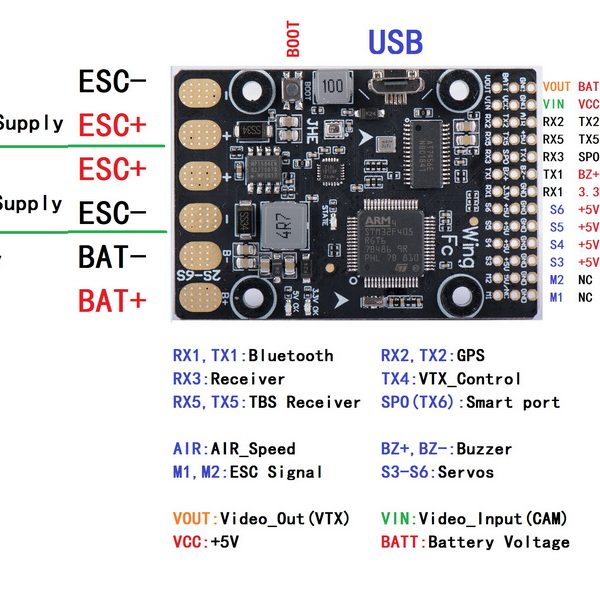

VCP & 6x UARTs
2x Motors,4x Servos outputs
Built in inverter for RC input (UART3-RX)
TBS Receiver:UART5-RX
Beeper:Yes
Default firmware : inav_1.9.0_FF_F35_LIGHTNING.HEX
Reference software : inav-configurator

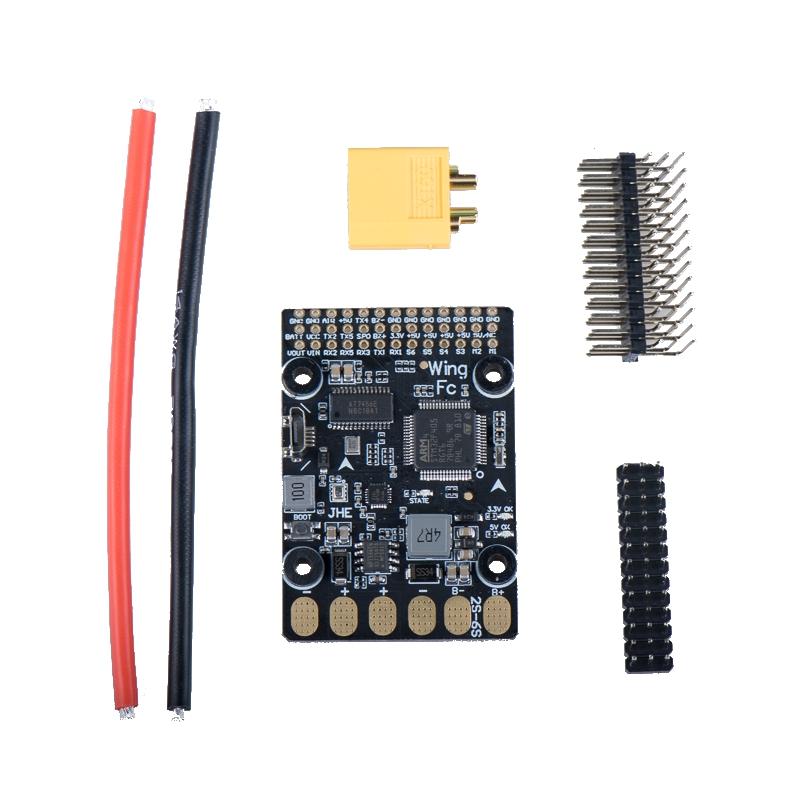

Packing Included
1 x Wing Fc-10 DOF FC
4 x M3 Dumping Balls
1 x XT-60
1 x 14 AWG Red
1 x 14 AWG black
2 x Pins
