Description

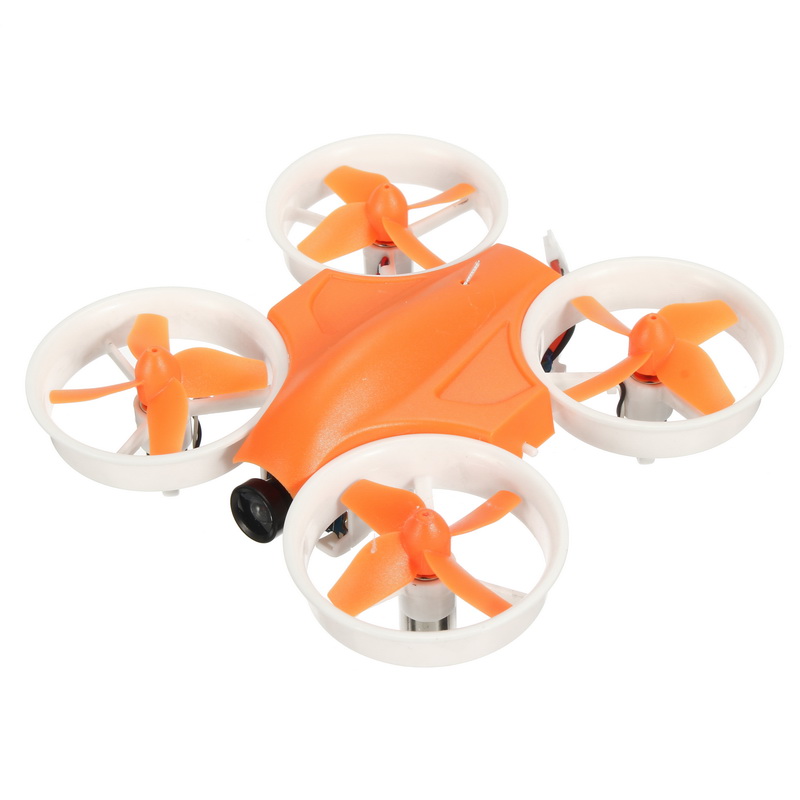

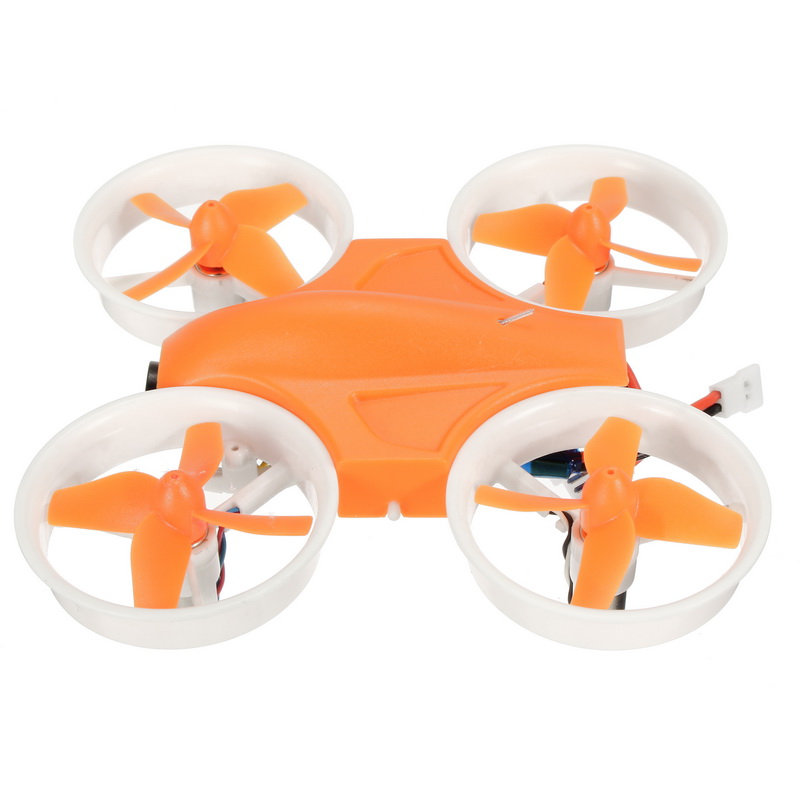

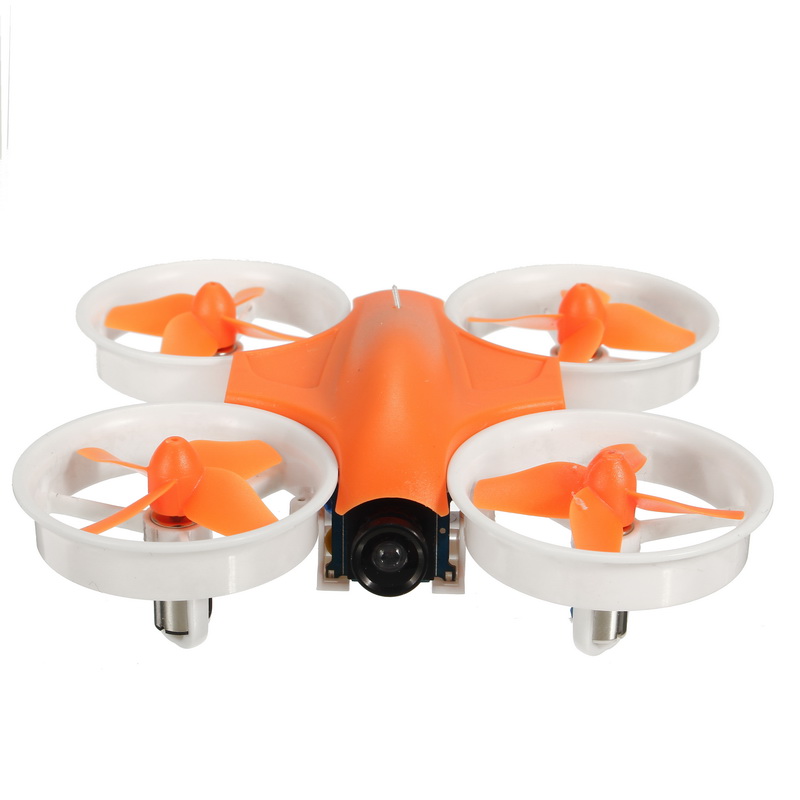

Warlark-80 80mm 600TVL FPV Racing Quadcopter Based On F3 Brushed Flight Controller With OSD
Specification:
Brand Name: WarLark
Wheelbase: 80mm
Weight: 36.6g (with battery but without canopy), 38g (with battery and canopy)
Flight controller: Scisky Micro F3 Brushed FC receiver VTX 25MW Camera
Firmware version: Cleanflight 1.3.0

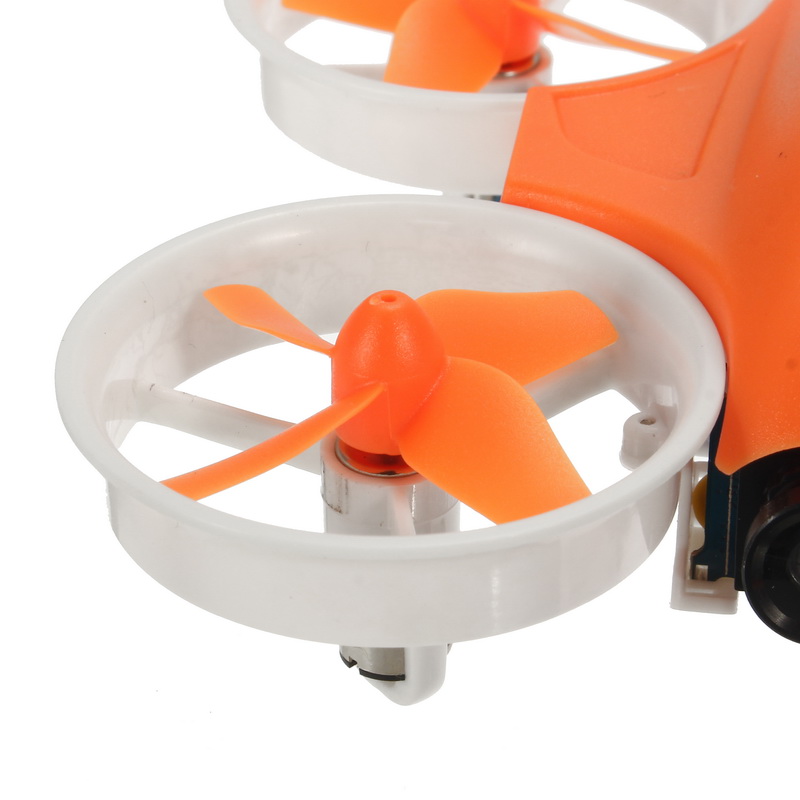

Motor: 716 Brush Motor
Prop Size: 35mm 4-blade prop

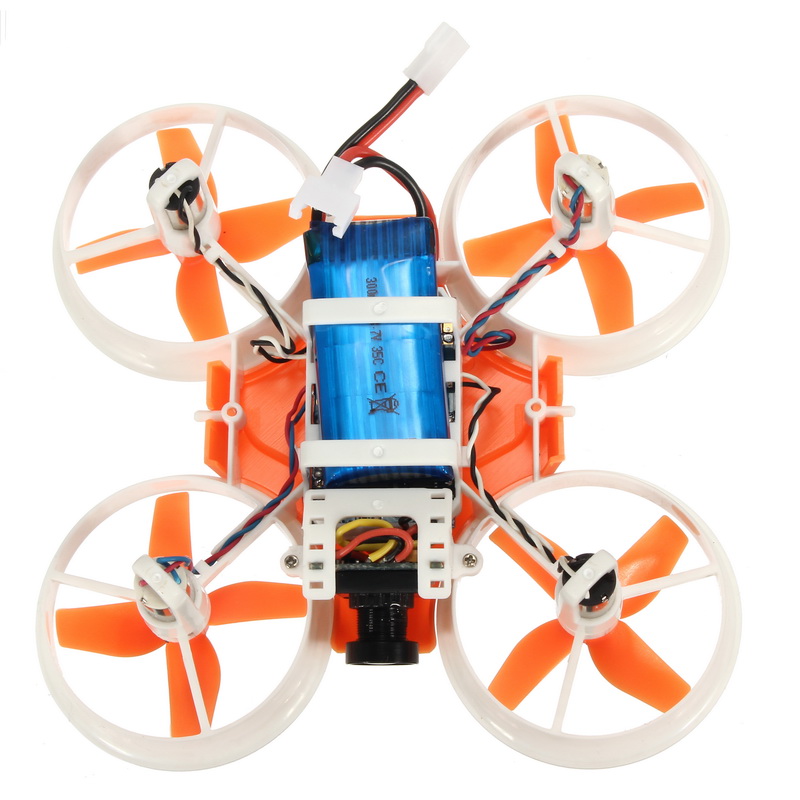

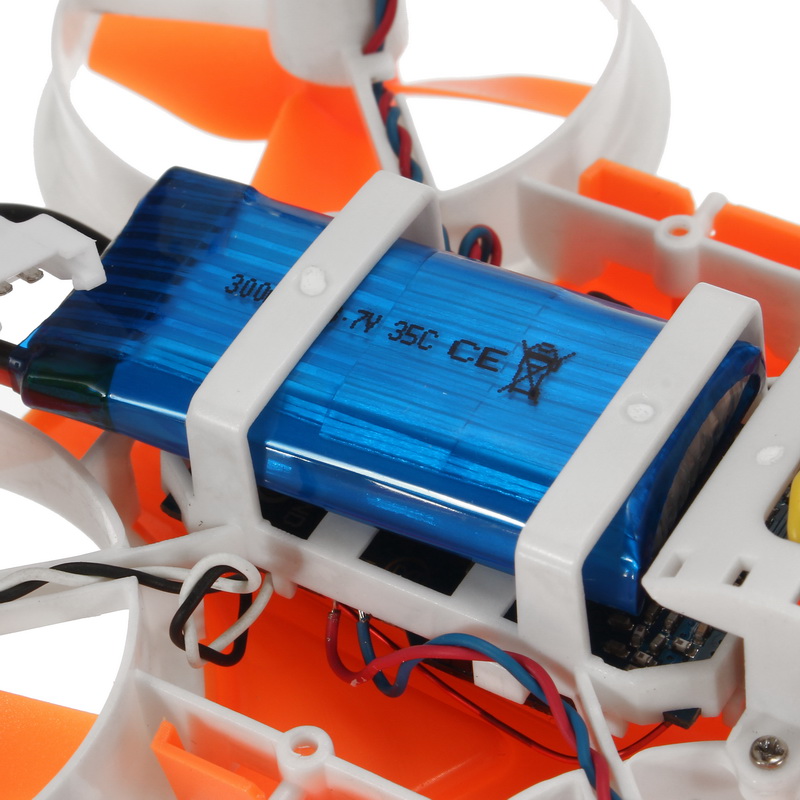

Battery:250mAh~300mAh 3.7V
Receiver: Built-in Frsky compatible 8ch SBUS receiver/ Flysky receiver/ DSMX/DSM2 receiver/Futaba SFHSS
OSD: VTX comes with an OSD

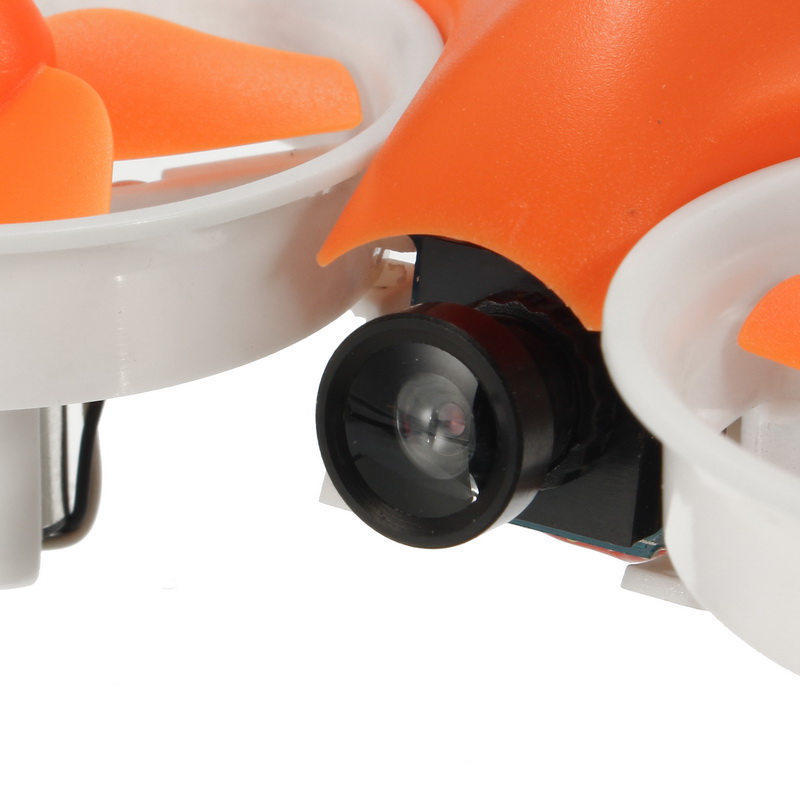

Camera: 600TVL HD CMOS 1/4 inch Camera
AV Wireless Transmitter: 5.8g 25mw 40CH
Flight time: 5 minutes
Features:
It comes fully assembled and tested, all the electric components (FC, motors, VTX, camera) is for plug and play, with optional receiver (DSMX/DSM2, FRSKY, FlySky, SFHSS compatible), very tiny but strong and neat construction. It flies stable and much of fun!
5.8G VTX channels list
|
LED1 |
LED2 |
LED3 |
LEDA LEDB LEDC |
|||||||
|
|
|
|
000 |
001 |
010 |
011 |
100 |
101 |
110 |
111 |
|
0 |
0 |
0 |
5740M |
5760M |
5780M |
5800M |
5820M |
5840M |
5860M |
5880M |
|
0 |
0 |
1 |
5865M |
5845M |
5825M |
5805M |
5785M |
5765M |
5745M |
5725M |
|
0 |
1 |
0 |
5733M |
5762M |
5771M |
5790M |
5809M |
5828M |
5847M |
5866M |
|
0 |
1 |
1 |
5705M |
5685M |
5665M |
5645M |
5885M |
5905M |
5925M |
5945M |
|
1 |
0 |
0 |
5658M |
5695M |
5732M |
5769M |
5806M |
5843M |
2880M |
5917M |
Note: 0 — LED_OFF 1 — LED_ON.
Package included:
1 x Warlark FPV quadcopter fully assembled
1 x 3.7V 300mah Lipo battery
2 x 35mm set(4 props/set)
1 x USB Charger
