Description

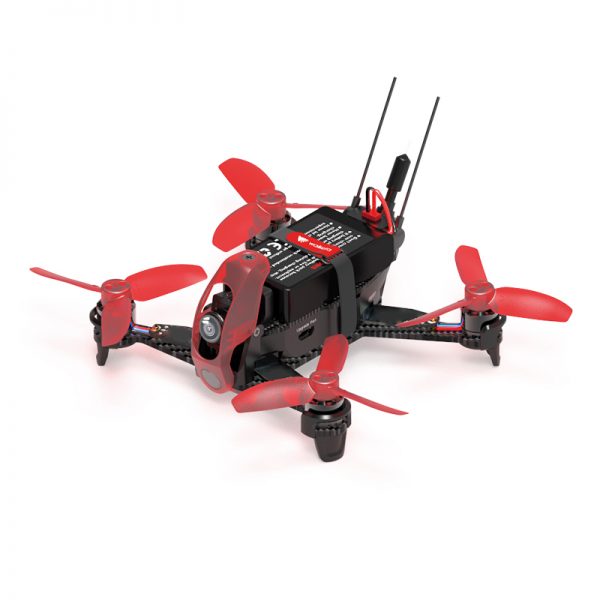

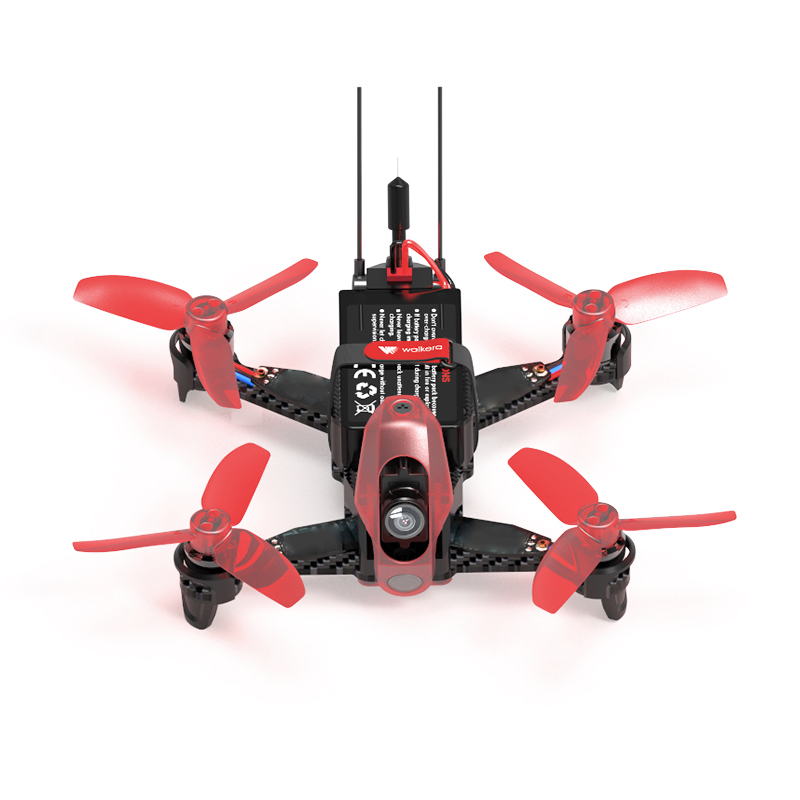

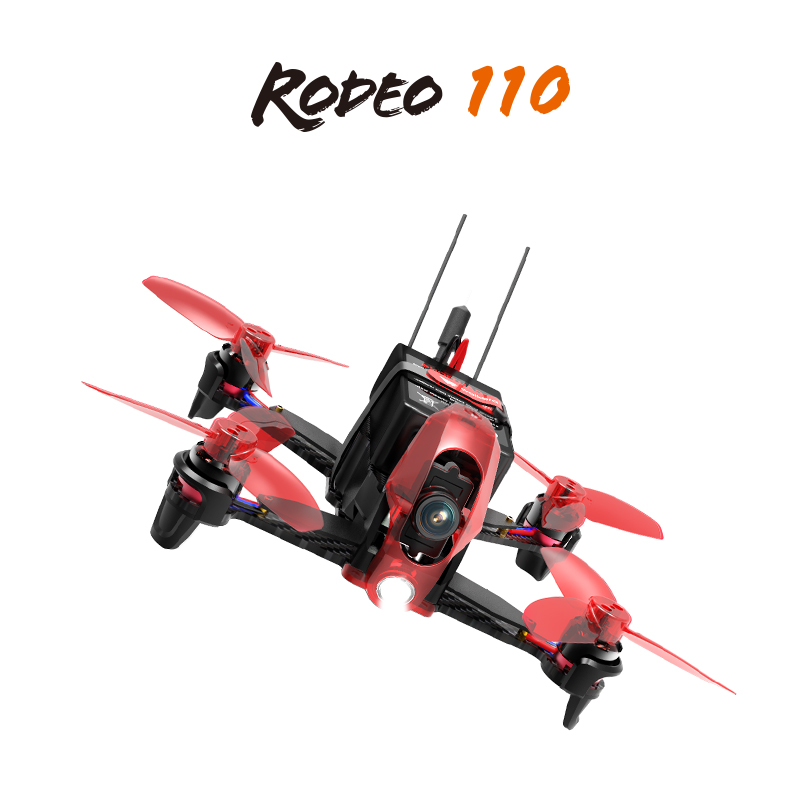

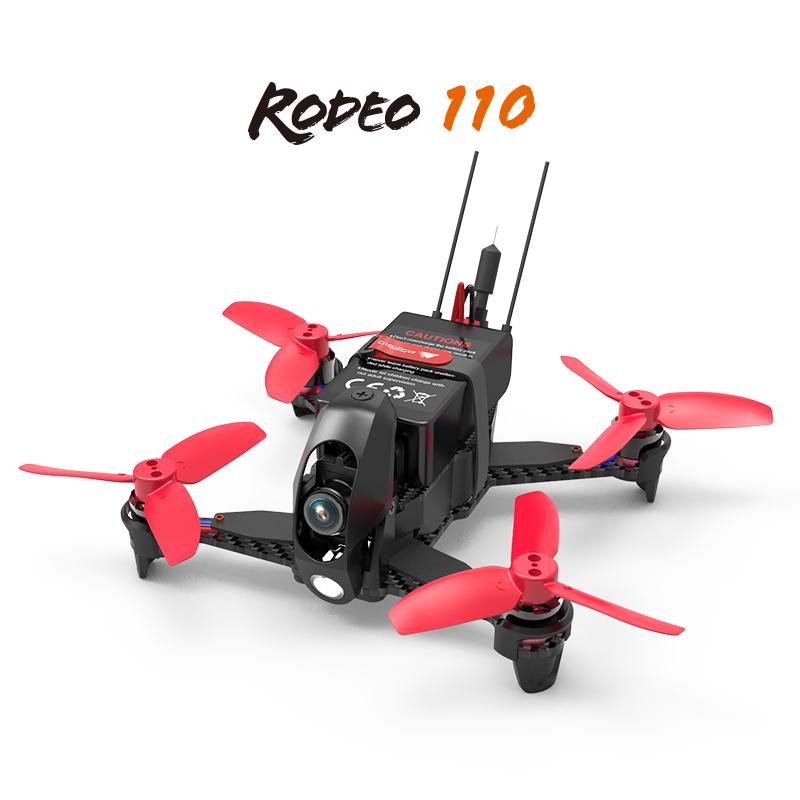

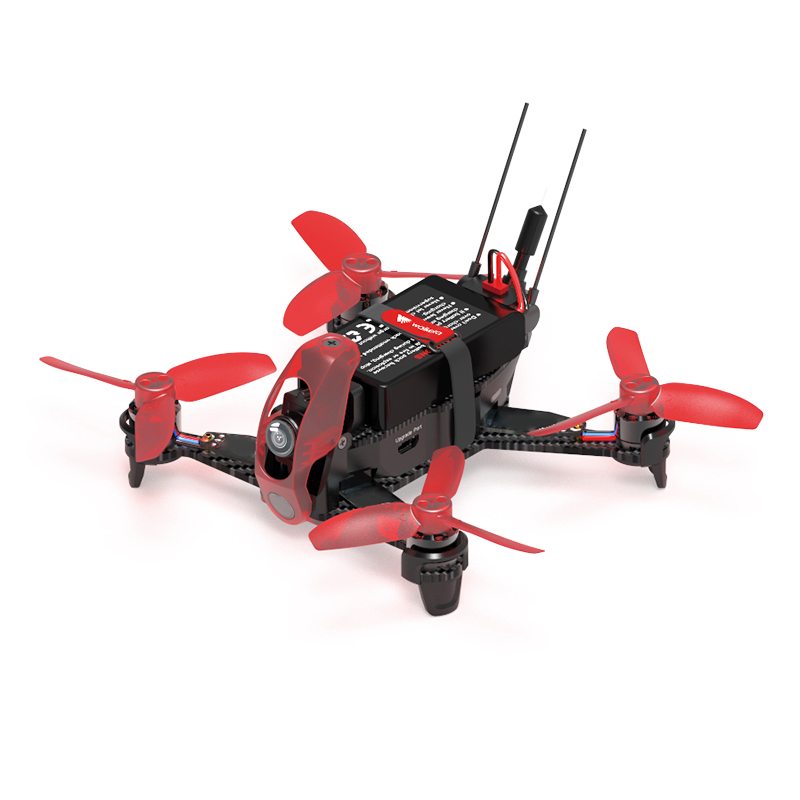

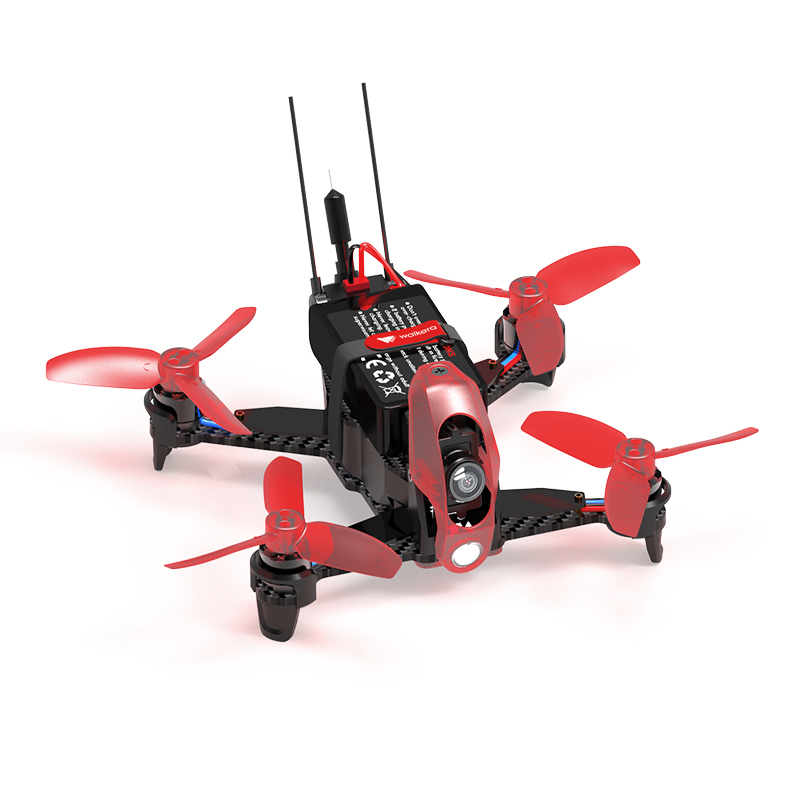

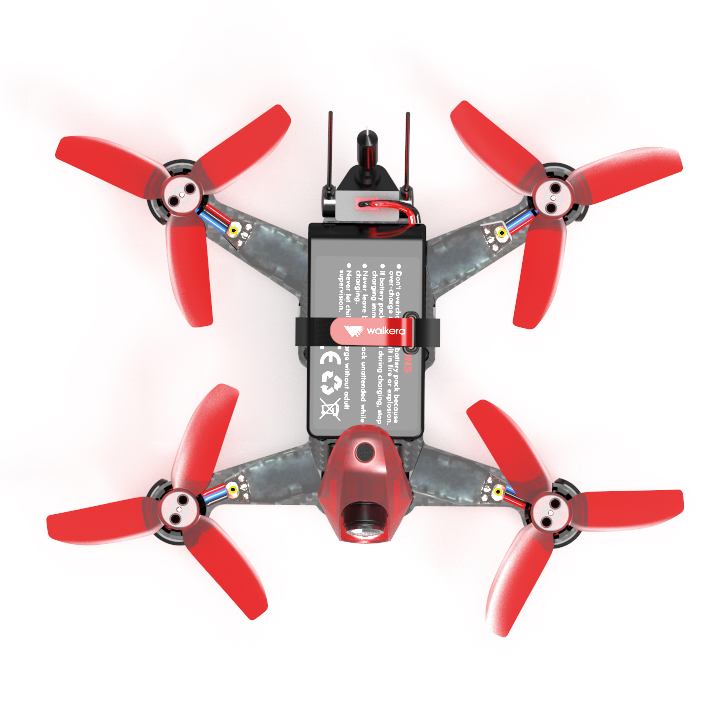

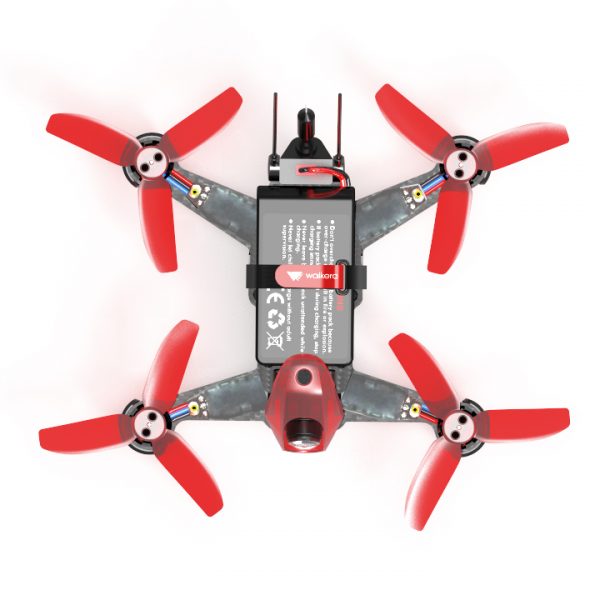

Walkera Rodeo 110 110mm FPV Racing Drone w/ 600TVL HD Camera 5.8GHz 40CH Transmission BNF RTF
Click here to dowmload?the manual
Specification: ?
| Specification | |
| Walkera Rodeo 110 | Size:101x117x55mm Weight:101g(not include the battery) |
| Remote Control | DEVO 7 2.4GHz DSSS Frequency Hopping ?100mW?Output Power ?230mA(100mW)?Current Consumption use 5# battery 8×1.5V or NiMH 8×1.2V 1600-2000mAh 1000-2000mS (the neutral point is 1500)?Output pulse |
| Receiver | Rodeo 110 |
| Flight Control | Rodeo 110 ?F3 |
| Transmission | 40 Channaels TX5834(FCC)/TX5835(CE)(Including?OSD) 25mW(CE)~100mW(FCC)~600mW (Can be Upgradeable)?Transmission power 500M (600mW)Transmission Distance |
| Camera | PAL/NTSC 600TVL HD Sony Resolution 1.0Vp-p/75?Video Output DC 12V?Power Input |
| Brushless Motor | WK-WS-13-002A |
| Brushless ESC | Rodeo 110 |
| Lipo Battery | 7.4V 850mAh 25C ?2S Li-Po |
| Flying Time | 6 ~?7 minutes |
| Working temperature | -10℃~ 40℃ |
Features:
1.Combined with a strong brushless motor power and high-strength carbon fiber frame kit
2.Front-view lighting, HD camera and 5.8GHz real-time transmission, allowing you to be barrier-free flight in the dark indoor
3.With the size and weight of the hollow-cup aircraft, the violent acceleration of the racing drones allows you to indulge in the fun of flying indoors
4.Rodeo110 uses integrated PCB circuit board, inherit PDB, flight control, transmission, receiver and other modules in one, the size is only 33mmx68mm,
significant savings in space and weight, in order to obtain a smaller size and greater Thrust – weight ratio.
5.Core components closed modular design, power transfer, map-chip are plug-in installation, easy installation and disassembly, easy to post-maintenance, maintenance
Package included:
1 x?DEVO 7 Remote Control
1 x?Walkera Rodeo 110 frame kit
1 x Receiver
1 x 600 TVL Camera
1 x Transmission
4 x Brushless Motor
4 x Brushless ESC
1 x Battery
1 x Charger
