Description

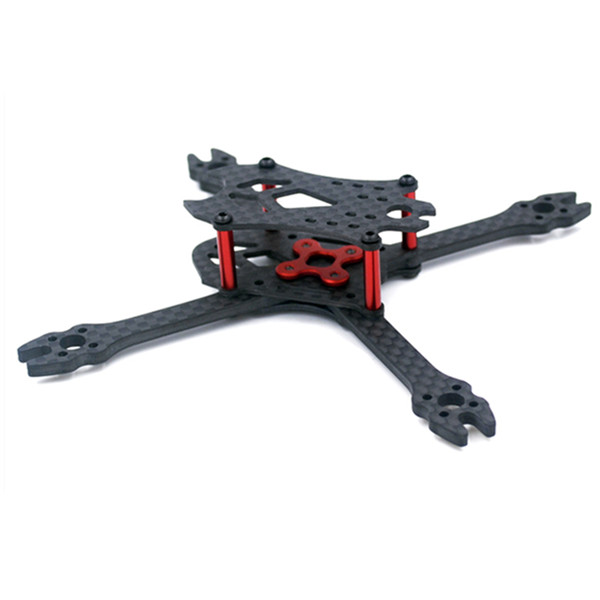

VX110 110mm Wheelbase 3mm Arm 3K Carbon Fiber Frame Kit for RC Drone FPV Racing
Specification:
Model: VX110
Item Name: 110mm Carbon Fiber Racing Frame Kit
Wheelbase: 110mm
Material: 3K Carbon Fiber
The Thickness of Arm Plate: 3mm
The Thickness of Bottom Plate: 1.5mm
The Thickness of Upper Plate: 1.5mm
Height of Aluminum Column:18mm
Weight: 17g
Recommended Parts:
Flight Controller & ESC: 20x20mm F3/F4 mini Flytower
Brushless Motor: 1103 / 1104 / 1105 Brushess Motor
Propeller: ≦ 2.5Inch ( 25XX / 24XX / 23XX / 20XX Prop)
Lipo Battery: 2/3S 200-500mAh Lipo Battery
Camera: Runcam Micro Swift
The following parts are suitable:
FC & ESC: HGLRC 20x20mm XJB F438 Fiytower F4 FC & 38A ESC
Kingkong 20x20mm F4 FC & 20A BL_S DShot600 ESC
Brushless Motor: AOKFLY RV1104 1104 7200KV 2S Motor
HGLRC Flame HF1105 1105 6000KV 2-3S Motor
Propeller: 10 Pairs Racerstar 2035 2 Inch 4-Blade Propeller
10 Pars Gemfan 2035 2 Inch 4-Blade Propeller
Lipo Battery: Gaoneng 7.4V 350mAh 80C 2S Lipo Battery JST Plug
ZOP Power 11.1V 450mAh 60C 3S Lipo Battery XT30 Plug
Camera: Runcam Micro Swift 600TVL CCD IR Blocked FPV Camera
Package Included:
1x VX110 110mm Frame Kit
