Description
Description:

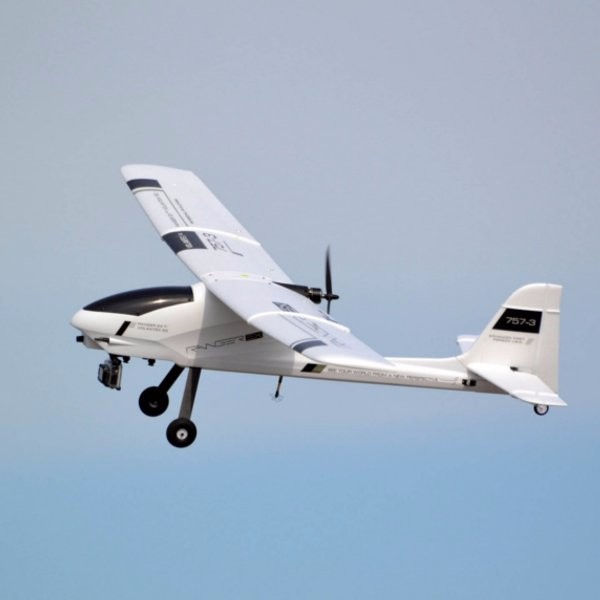

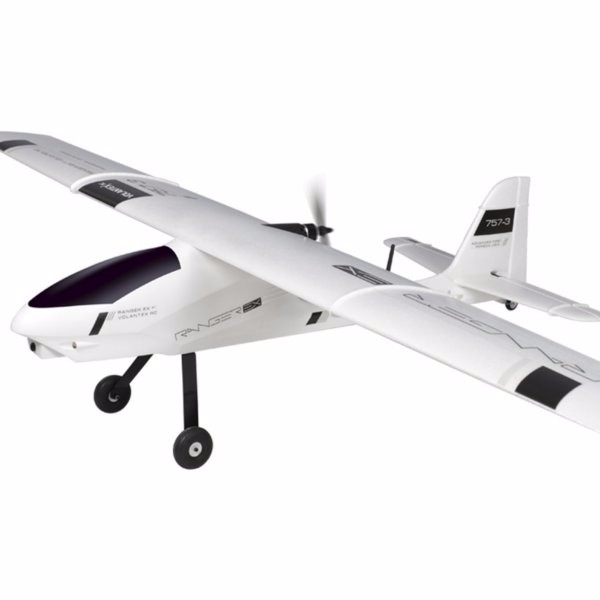

The Ranger EX is a airplane is specially designed for Long Range FPV and quick and very easy trouble free Setup of this great big Bird. FPV Ranger EX offers few greater qualities that every FPV pilot looks forward to have in his / her RC FPV Plane.
– It has bigger tougher PVC Fuselage that makes this plane a crash resistant plane, Tons of open space to let bigger hands do their job inside the fuselage when it comes to mount the electronics inside and also this big place makes it possible for one to mount more gear inside and keep things neat.
– Ability to carry more payload means one can mount higher mAh batteries to get ultra long flight times needed for those long range FPV flights you are going to do
– Tall Landing gear and dragger wheel means you can now safely take off and land from ground. No need to hand launch a big heavy plane with all the gears and dangerous and sharp propeller spinning at the back
– Easy mounting of Various Brushless gimbals for GoPro 3 under the nose, now you can take ultimate stable flight videos of your long range flights
– Super easy few step setup and glue free assemble.
– Two pieces to carry only, Fuselage and Wings detach quick and easy for easy transportation and storage. Quick attachment on field for flight
– And not to forget the super awesome and powerful flight performance with long flight endurance this plane offers.
Specification:
| Minimum Age Recommendation: 14 years Experience Level: Beginners ~ Expert Recommended Environment: Outdoor Assembly Time: Less than half hour Is Assembly Required: Yes |
Motor: 3715 powerful out runner brushless motor ESC:Easy-Plug 40A Switch-mode BEC brushless ESC Servo: 9-gram Servo * 6pcs Propeller: 1060 Propeller |
||
| 2.4Ghz 6-Channels(Not Included) Receiver Not Included |
11.1V/14.8V 1800mAh ~ 10000mAh Li-Po (Not Included) | ||
| Wingspan: 1980mm (77.9 in) Overall Length: 1170mm (46 in) Flying Weight(without battery): 1500g Flaps: Yes Retracts: No |
19*24.5*106 cm |
Key Features:
– Add plastic hinge on the vertical and horizontal tails,increase the rudder angle.
– Big space, durable UNIBODY design
– Special airfoil design for carrying big weight
– Compatible with most kind of camera mounting
– Capability to carry Camera Gimbal
– Quick, easy to assembly, no glow required
– Light weight and durable EPO wing construction
FPV SYSTEM DEPLOYMENT
Special design and optimize for long range FPV, so there is a lot of space for mounting systems and different Camera mounting way, which not require any modify.
EASY FOR ALL KIND OF CAMERA MOUNTING
Are you tired of modification a lot to mount your camera well? Now you don’t have to. We consider a lot kind of mounting for you, you can easy to mount it as better as you like. Stable, safe, and easy, just focus to make a wonderful video and enjoy it.
EASY FOR FPV CAMERA MOUNTING
Considering for professional FPV traveling, usually you will need a full HD camera and another FPV camera for Video transmission, so we leave a very convenient, safe, good view space for you to mount a FPV camera, just enjoy it.
SPECIAL FUSELAGE DESIGN
The whole unibody fuselage is produced by our copyright one-step moulding technology, which make it more durable and strong than other EPO foamy insert carbon tube. So it can avoid the tail effected by the air and cause the bump during the flight.
Special small platform in the tail is builded for video TX installation, can leave away from the radio equipment avoid causing nosy. In the same time the propeller can cool down it from over heat.
GRADIENTER PREINSTALLED
We are thinking much more than others, for UAV system setup, to calibrate the sensors in horizontal level is very very importance. So the gradienter in the wing CG position will help a lot to setup the system.
VERY BIG SPACE FOR BIG BATTERIES
The very importance point for a airplane which can travel long range or not, should be the big batteries carrying ability. Thanks to our unibody technology, we have much more a lot space than other foamy plane to carry almost twice capacity batteries. Of course we still have a lot more space for equipment, and sure we have lot more space for cooling down the battery.
As image showing the fuselage carrying 2pcs 14.8V 5000mAh Li-Po batteries.
Recommend FPV System(not included):
Flight Controller: APM 2.8 Flight Controller Set, Click Here
Camera: RunCam 2 RunCam2 HD, Click Here
Goggles: Fatshark Dominator V3 FPV Video Goggles, Click Here
Monitor: Eachine LCD5802S 5802 5.8G 32CH 7 Inch Monitor, Click Here
Gimbal: JIYI FPV G3-3D 3 Axis Gimbal, Click Here
Recommended FPV System (Not Included):
APM Flight Controller Set 2.8 Click Here
Eachine 700TVL 1/3 Cmos 110 Degree Lens Camera Click Here
Skyzone FPV 5.8G 32CH 7 Inch Monitor DVR Click Here
Eachine TS832 FPV 5.8G 32CH 600mW Wireless AV Transmitter Click Here
Eachine FPV 5.8G 32CH Wireless AV Receiver RC832 Click Here
5.8G Gain Petals Clover Mushrooms Click Here
Package Included:
1 x Volantex Ranger EX 757-3 RC Airplane PNP
,
,
,
,
,
,
,
,
,
,
,
,
