Description

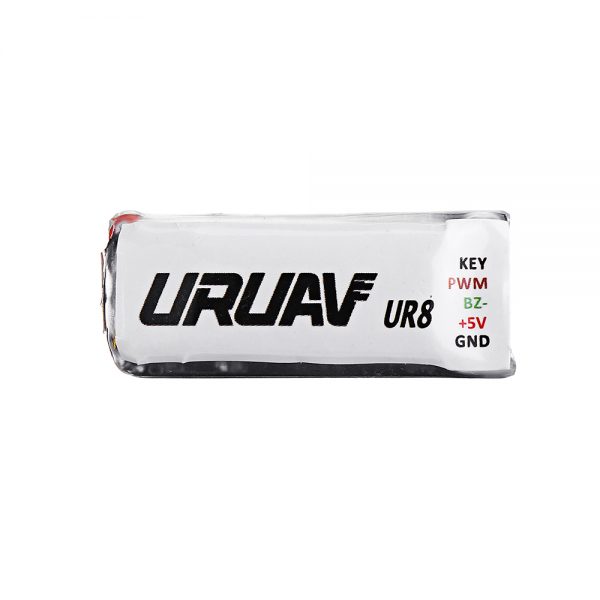

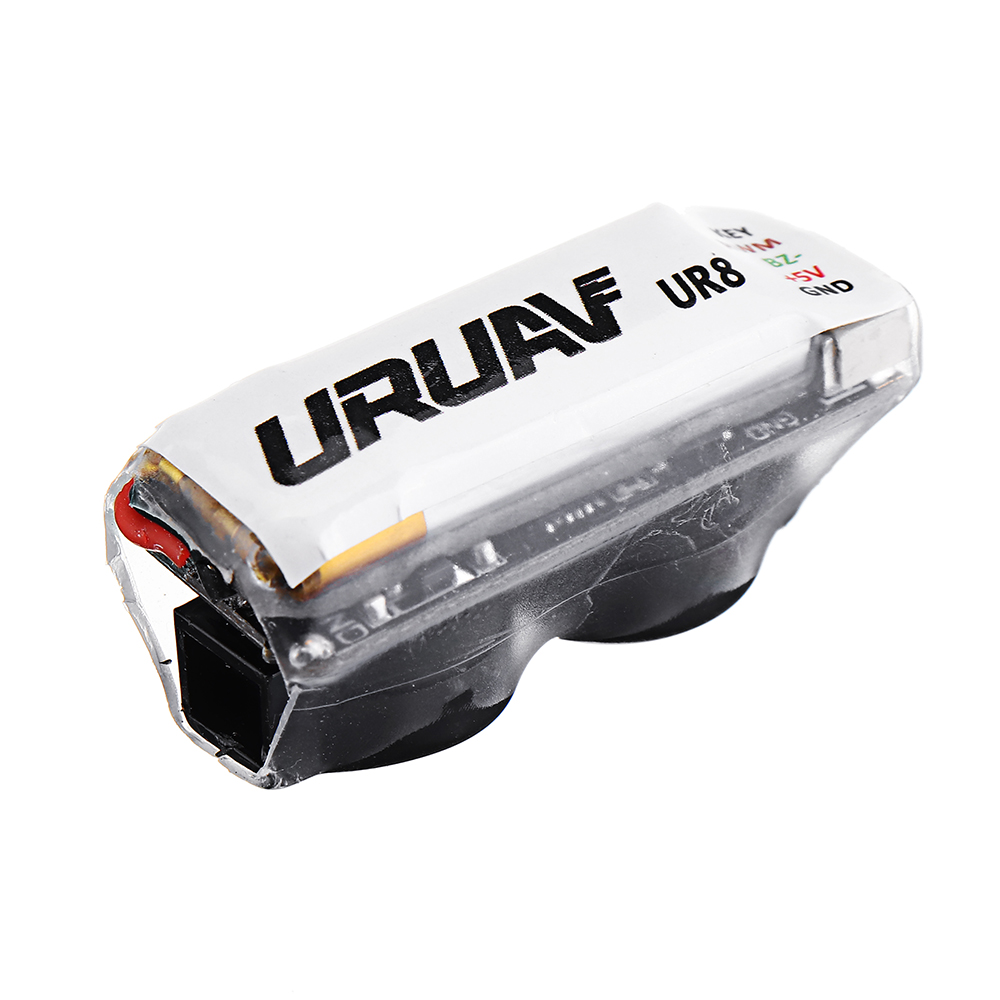

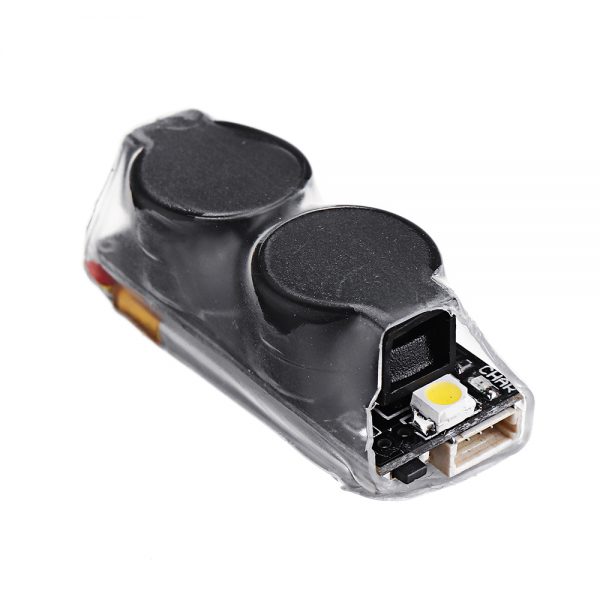

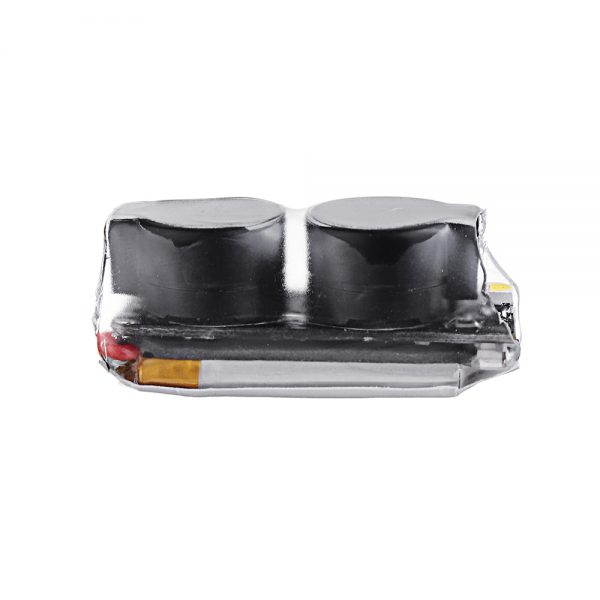

URUAV UR8 5V Duo Buzzer Over 110dB BB Alarm Built-in Battery & LED for RC Drone FPV Racing
Specification:
Brand Name: URUAV
Model: UR8
Item Name: 5V 110dB Duo Buzzer
Built-in Battery & LED Light
Working Time: about 3 Hours
Working Time: about 3 Hours
Volume: 110dB+
Battery: 100mAh Lipo
Working Voltage: 5V
Size: 31x13x14mm
Weight: 6g
Features:
Features:
Having 3 working modes.
1. Compaitble with BF/CF flight controller like normal buzzer ( such as F3/ F4/ F7 Flight Controller).
Just need connect it to flight controller's buzzer port, then it can work well.
Just need connect it to flight controller's buzzer port, then it can work well.
While you build fc well on quad and power to quad, the fc (+5V) would charge to this buzzer automatically.
( Red LED points at in charging)
( Red LED points at in charging)
2. Can power itself to beep even the quad's battery has been ejected.
About 30 sencond later, it will beep in 110DB and LED would be light in white.
3. Using PWM Receiver Signal (1000us-2000us) to make it beep or disarm it.
Over 1700US, open Buzzer and make it beep. Lower to 1650US, disarm buzzer.
Compatible with Airplane etc.
Disarm the Buzzer
Disconnect main battery, hold disarm button on buzzer for 2 seconds then release.
Package Included:
1x Buzzer

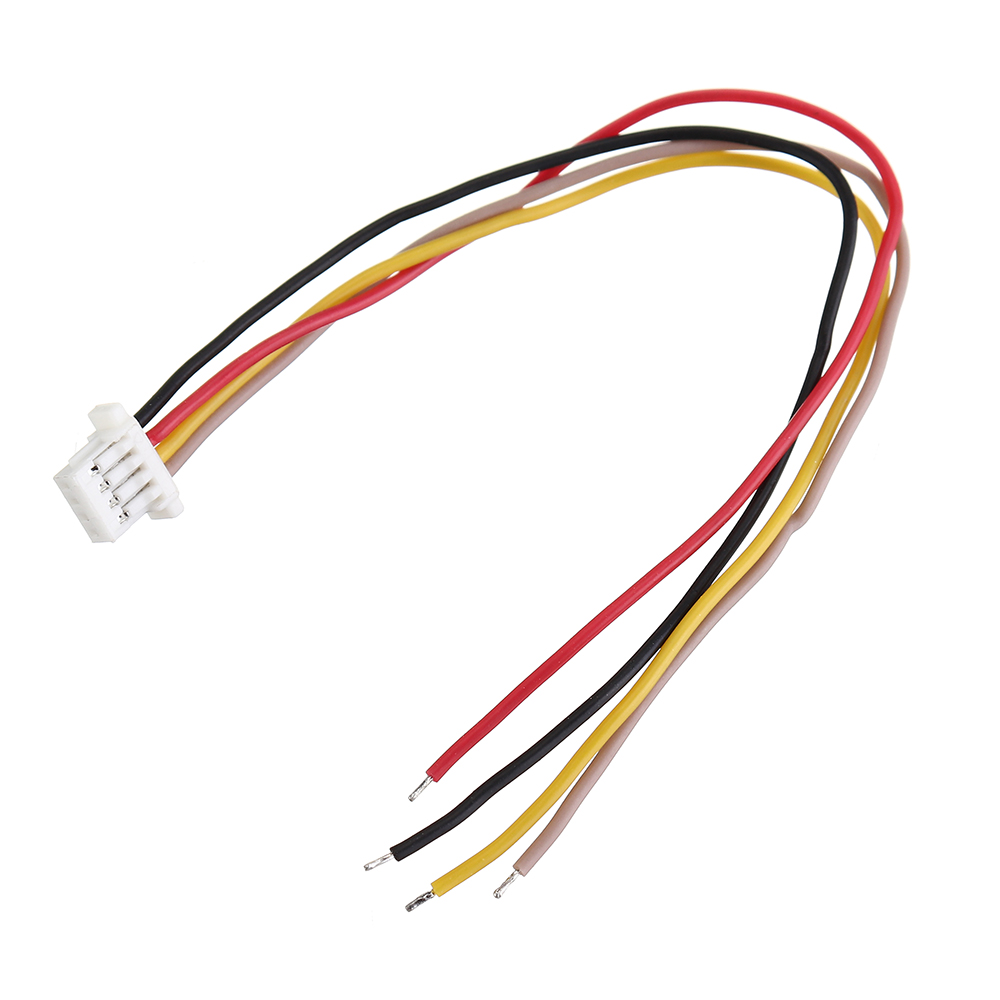

1x 4P Cable
