URUAV UR4 0V / 3.0V-4.0V 6 Grade Lipo Killer Discharger for 1-6S Lipo Battery RC Drone FPV Racing

$9.14

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

URUAV UR4 0V / 3.0V-4.0V 6 Grade Lipo Killer Discharger Disposer for LIFE / Lipo Battery RC Drone

Specification:
Brand Name: URUAV
Model: UR4 Lipo Killer
Item Name: 0/ 3/ 3.2/ 3.4/ 3.6/ 3.8/ 4V Battery Discharger for 1-6S Lipo Battery
Battery Type: Compatible with Lipo Battery & LIFE Battery
Dischager Range: 0/ 3/ 3.2/ 3.4/ 3.6/ 3.8/ 4V
Dischager Current: 4.0V-30.V 100mA
Dischager Time: 75min @ 0.1V ( Example as 1300mAh Lipo Battery)
Connector: 4.0V-3.0V Dischager Connector ( Must Plug in Balance Head or Pins )
                 0V Dischager Connector ( Must Plug in XT60 Connector)
Notice: MUST Plug right connector to counterpart discharger connector.
Dimension: 65x33x10mm

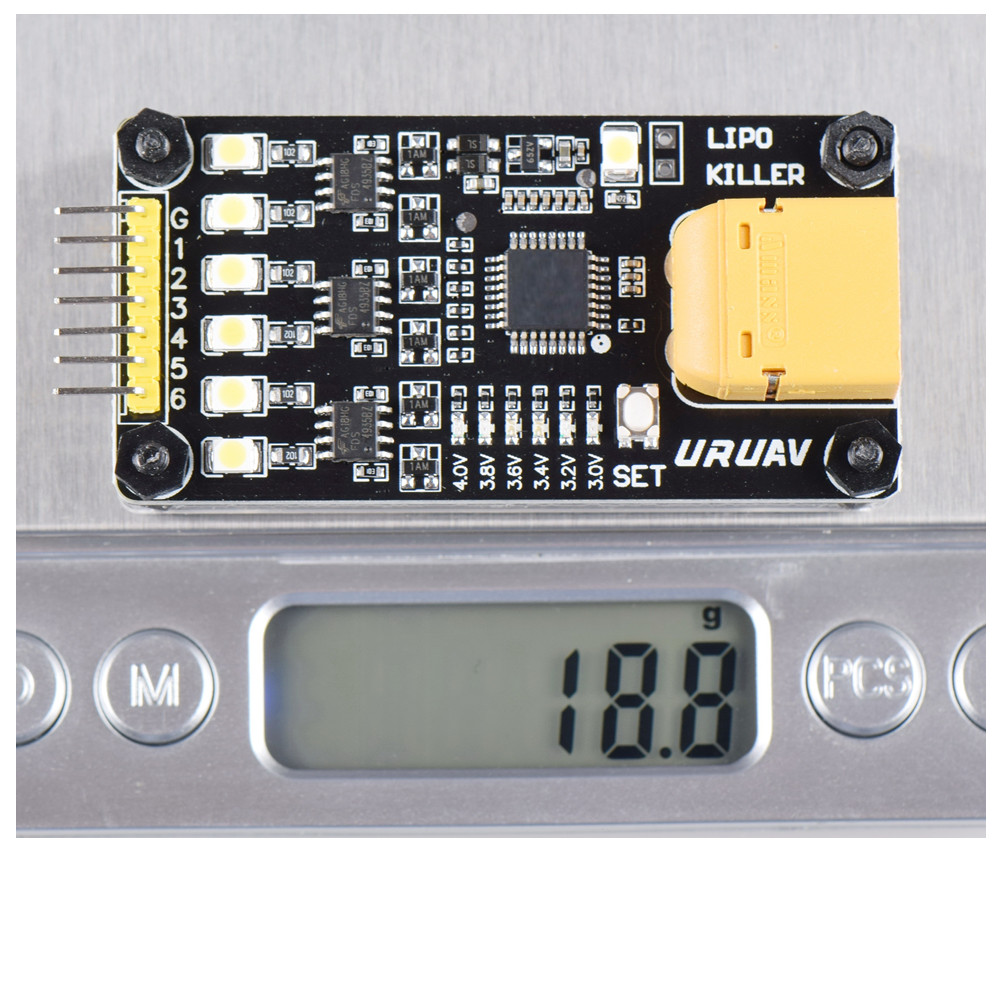

Weight: 18.8g

Usage Instruction:
0V Discharger
– Plug your battery's XT60 Connector in the yellow connector ( on the right side of board)
– Then 0V LED will keep lighting untill finishing dischager
– 0V LED Light goes off, which points at battery dischager to 0V.
– Discharging to 0V need 24 hours above

4.0V-3.0V Discharger
– Plug your battery's balance pin head in the Pin connector ( On the left side of boaed )
  Notice: The battery's black cable points at " G" ( The word showed on the board)
             DONT plug in opposite side.

– Then this lipo killer will test how many cells of your battery and counterpart LED will light on.
  1S-6S Discharge LED will keep light. ( The lighting LED Number depends on your battery's Cell)

– Press " Set " button to set the voltage you want to discharge. ( 3/ 3.2/ 3.4/ 3.6/ 3.8/ 4V Optional)
  Notice: The voltage you set must lower than your battery's present voltage

– 1S-6S Discharge LED goes off while finishing discharging

– Discharging from 4.2V to 3.8V need about 5 hours ( take example as 1300mAh Lipo Battery)

Package Included:

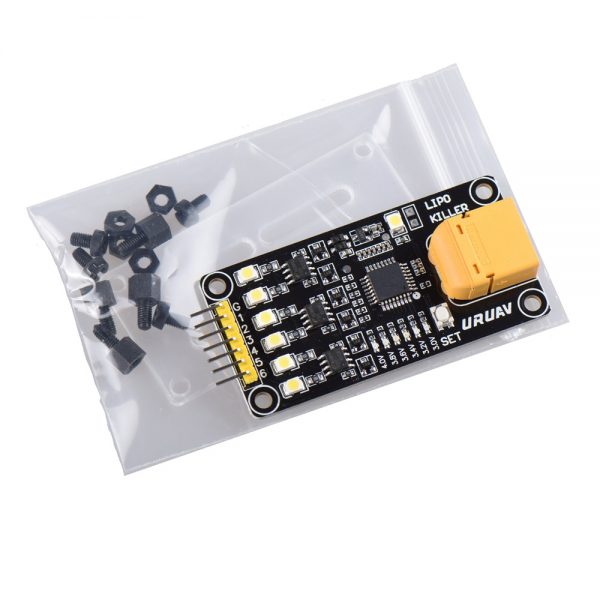

1x URUAV UR4 Lipo Killer Battery Discharger
