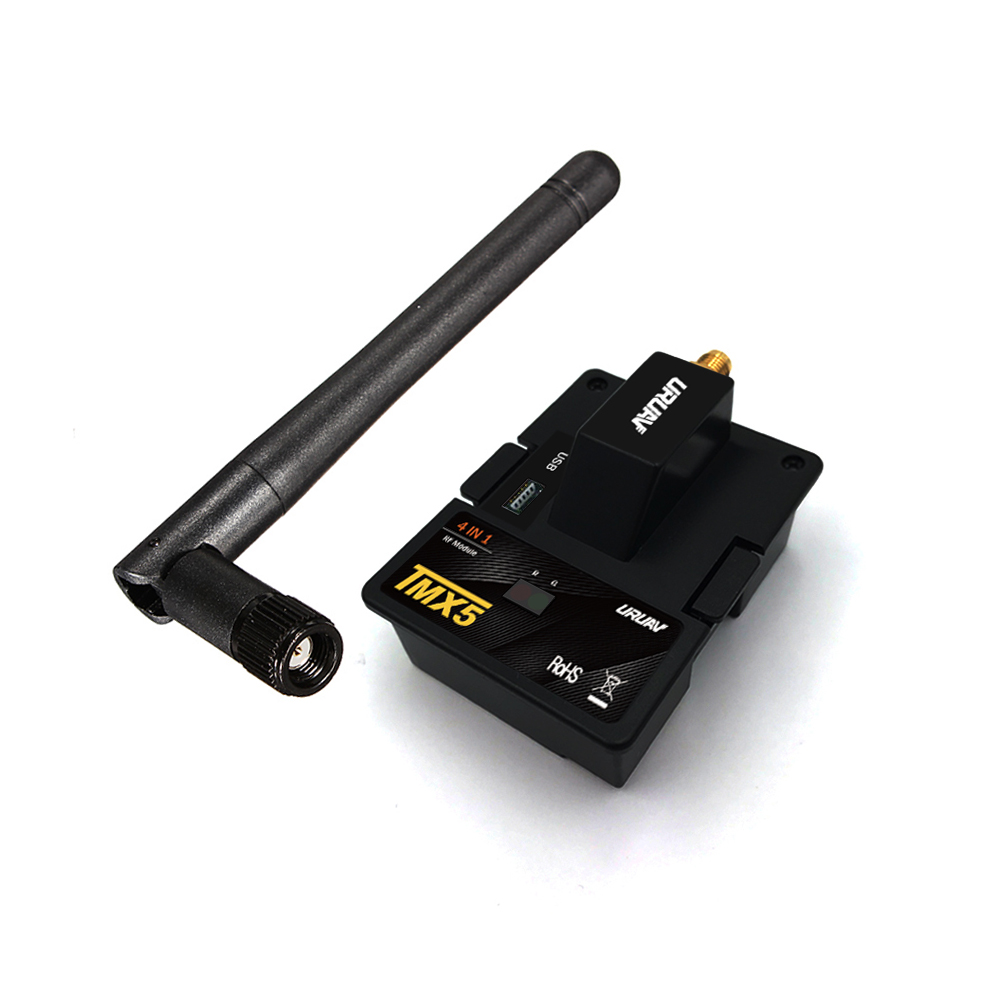

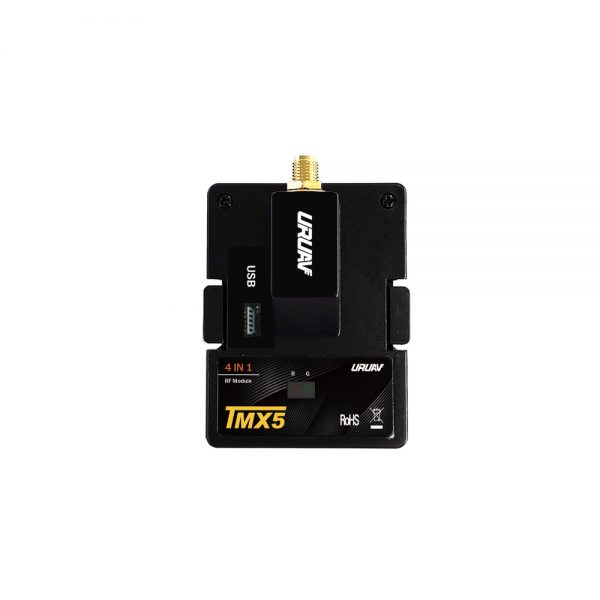

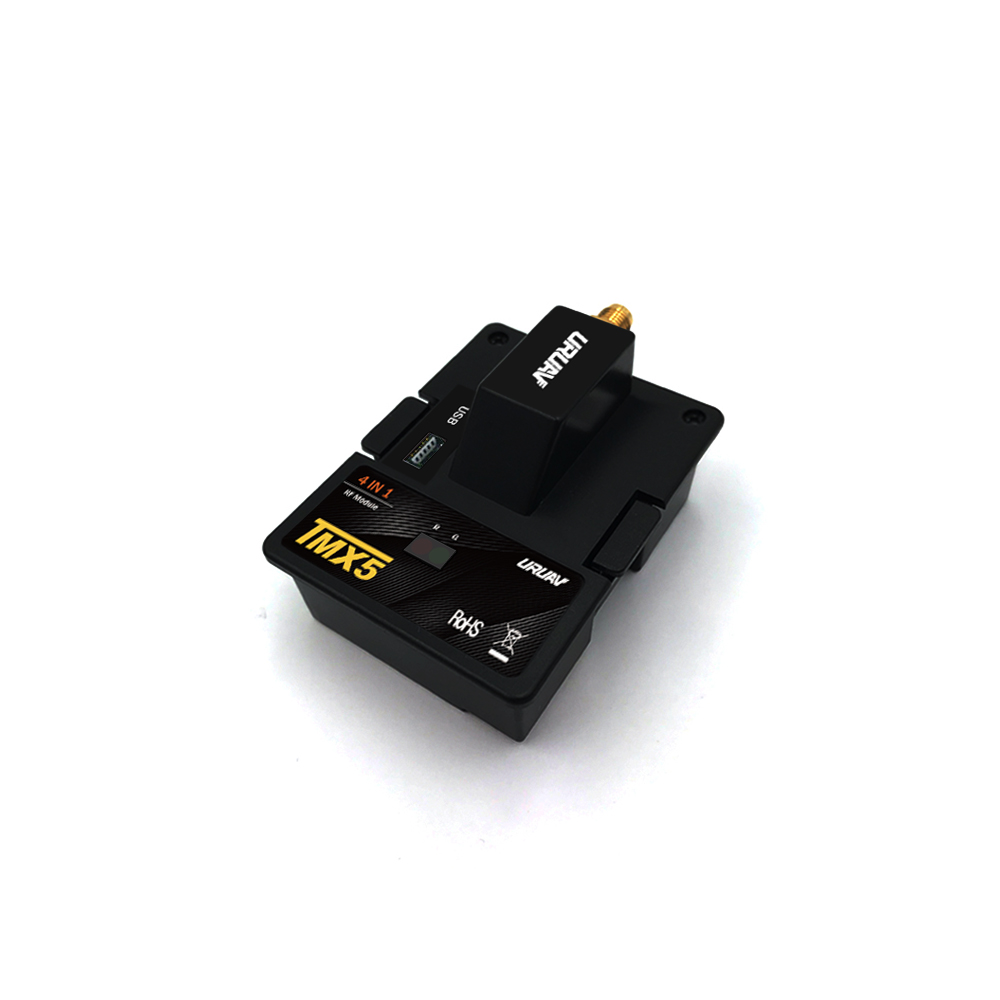

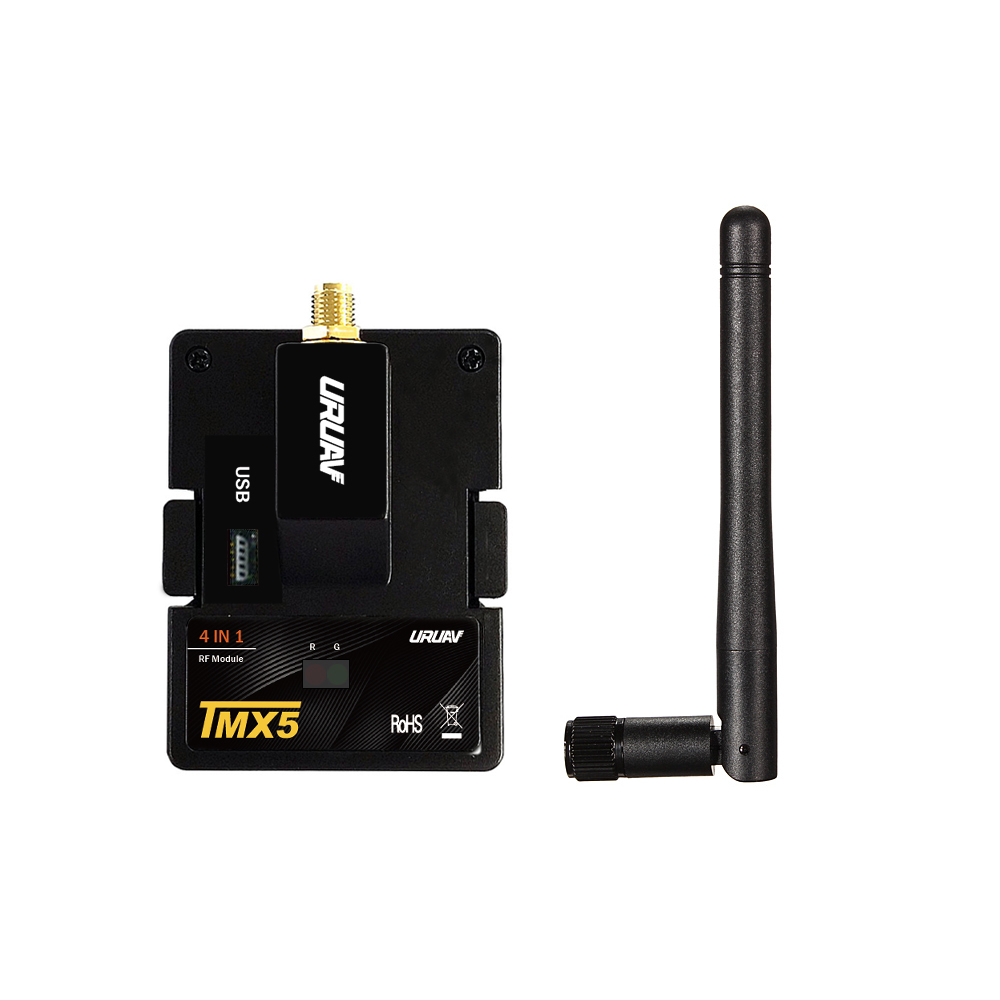

URUAV TMX5 4 IN 1 A7105 CC2500 CYRF6936 NRF24L01+ Multi-Protocol Transmitter Module Compatible FrSky ACCESS Transmitter

How to use:
1. Refer to the website above, update your transmitter with proper firmware.
2. Screw down the antenna of module tightly, and then install TX Module to the module bay of your transmitter.
3. Power on your transmitter, enter Model Settings menu, turn on External RF , and select ‘MULT’ mode, then you will see the bind and protocol button in the menu, and then you can choose a proper protocol for you model and bind with it now.

Notice:
– The jumpers and header attached is used for updating firmware of TX module through USB serial cable. Please remove them for normal use..
– Sometimes, you may need a power recycle when you choose a new protocol. for example, protocol changes from Q303 to HISKY.
– For FRSKY and S-FHSS protocol, you may need set the value of Fine or Option (in the Model Settings menu) properly to bind with your model. The value is varied, since it’s partly depended on your model.

Package included:
1 x TMX5 Module

All Available Protocols:
