Description
Note:
When connecting power to the unit or when the unit is powered on do not HOLD the function button.
Holding the Function button will reset the voltage calibration. To set voltage calibration again professional knowledge and equipment is required.
Voltage calibration: click here
When connecting power to the unit or when the unit is powered on do not HOLD the function button.
Holding the Function button will reset the voltage calibration. To set voltage calibration again professional knowledge and equipment is required.
Voltage calibration: click here

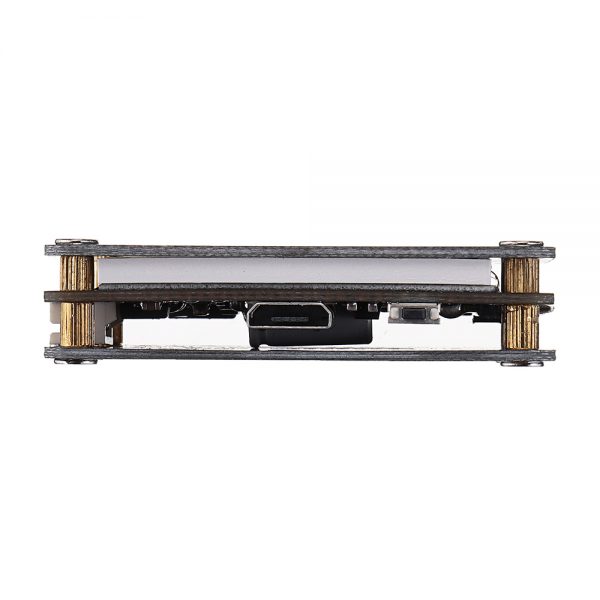

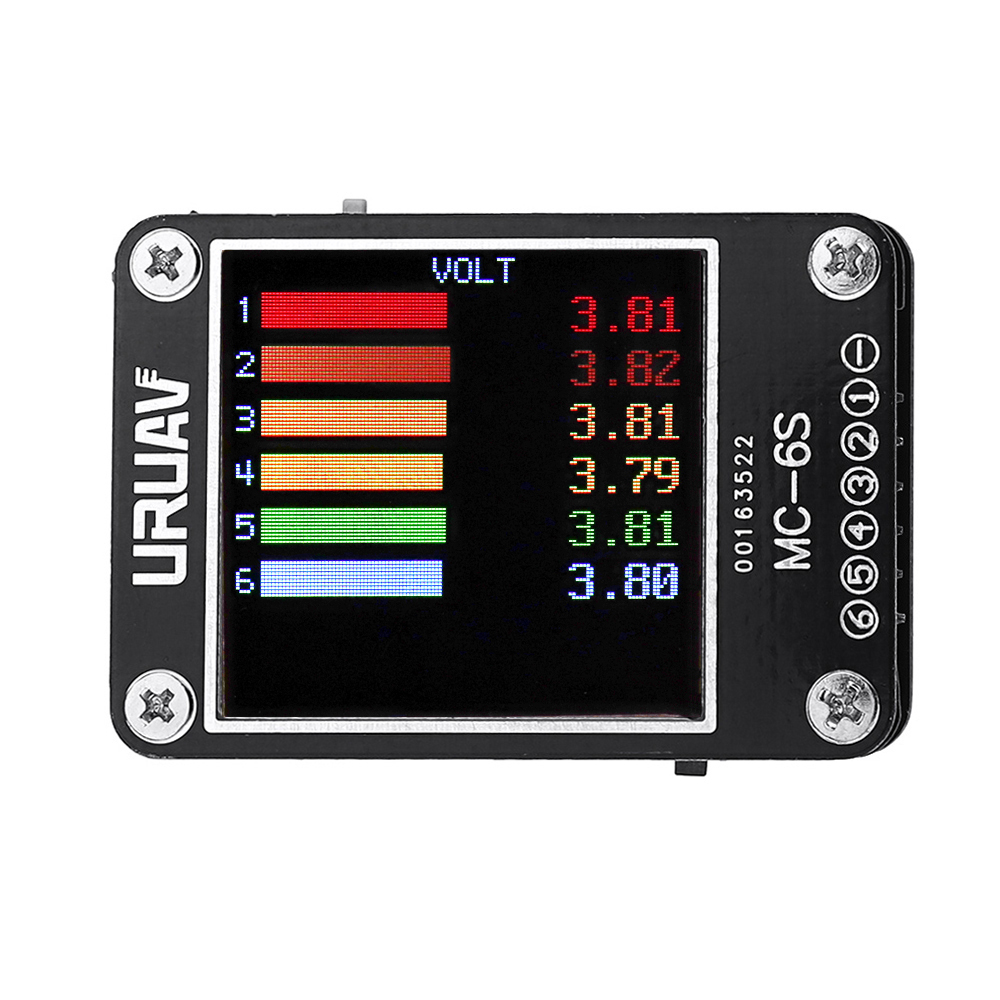

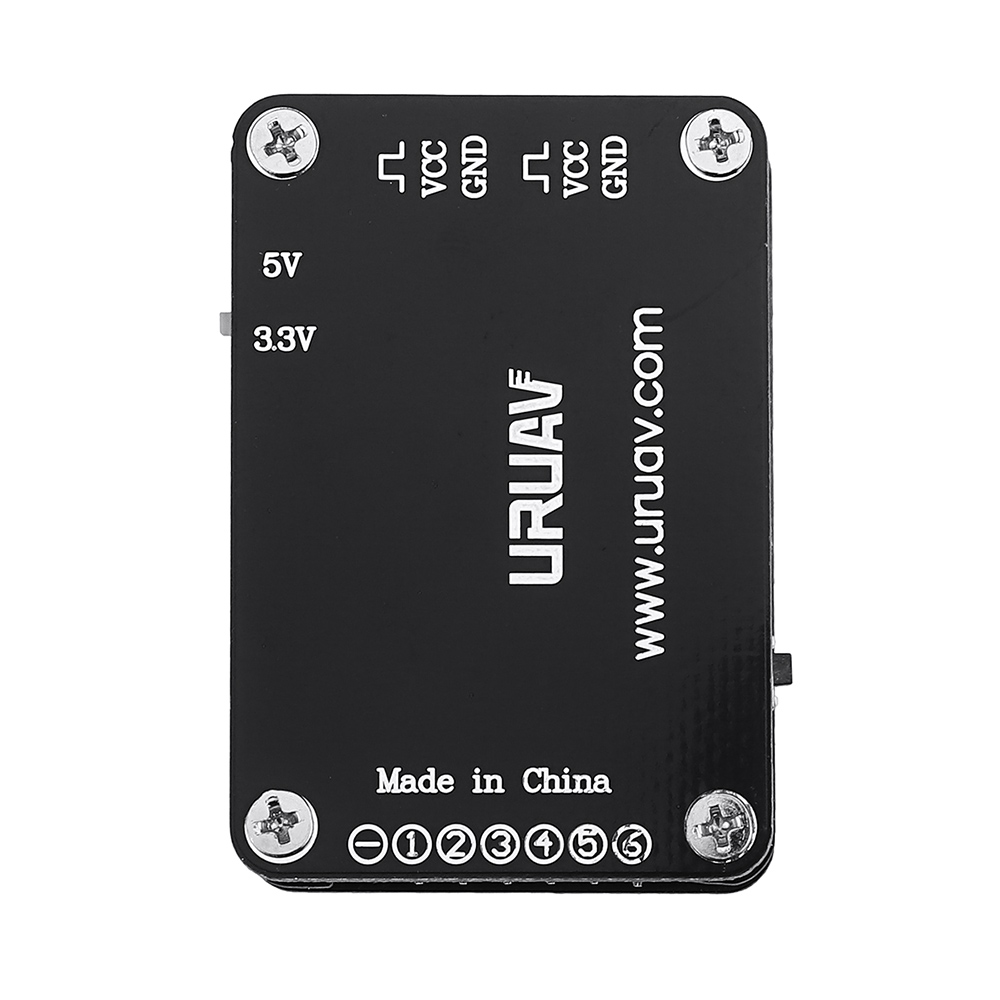

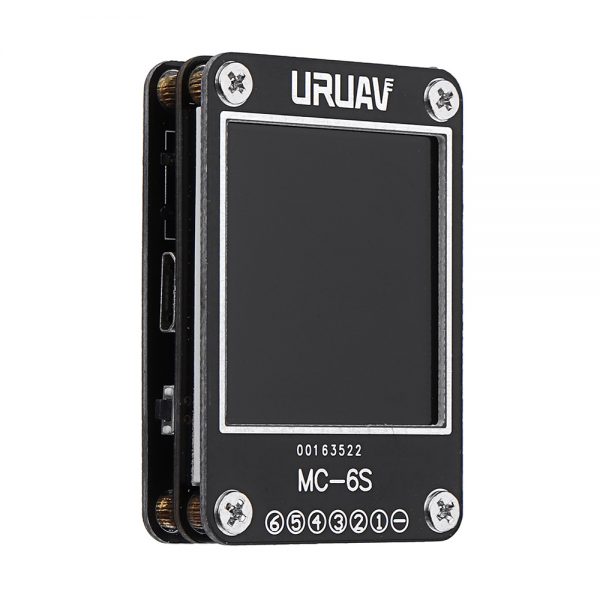

The MC-6S is an easy to use, compact 6S Cell Checker with built in receiver and satellite checking function. Simply connect the balance lead from you LiPO/LiFE battery to the balance plug pins to get an instant read out of your batteries cell voltage.
The MC-6S also works as a Receiver tester allowing you to check S.Bus, PPM, PWM and DSM Satellites for correct functionality. An Ideal tool for diagnosing receiver issued when building FPV racing drones.
Specification:
Voltage Input: 5-25V
Current Consumption: 10mAh
Dimension: 45X31X10mm
Mode of Receiver Output: S.bus,DSM1024,DSM2048,PPM,PWM
Cell Checker: Up to 6S
USB Input: Micro USB & USB-C
Packaging Included:
1X URUAV MC-6S Checker
