Description

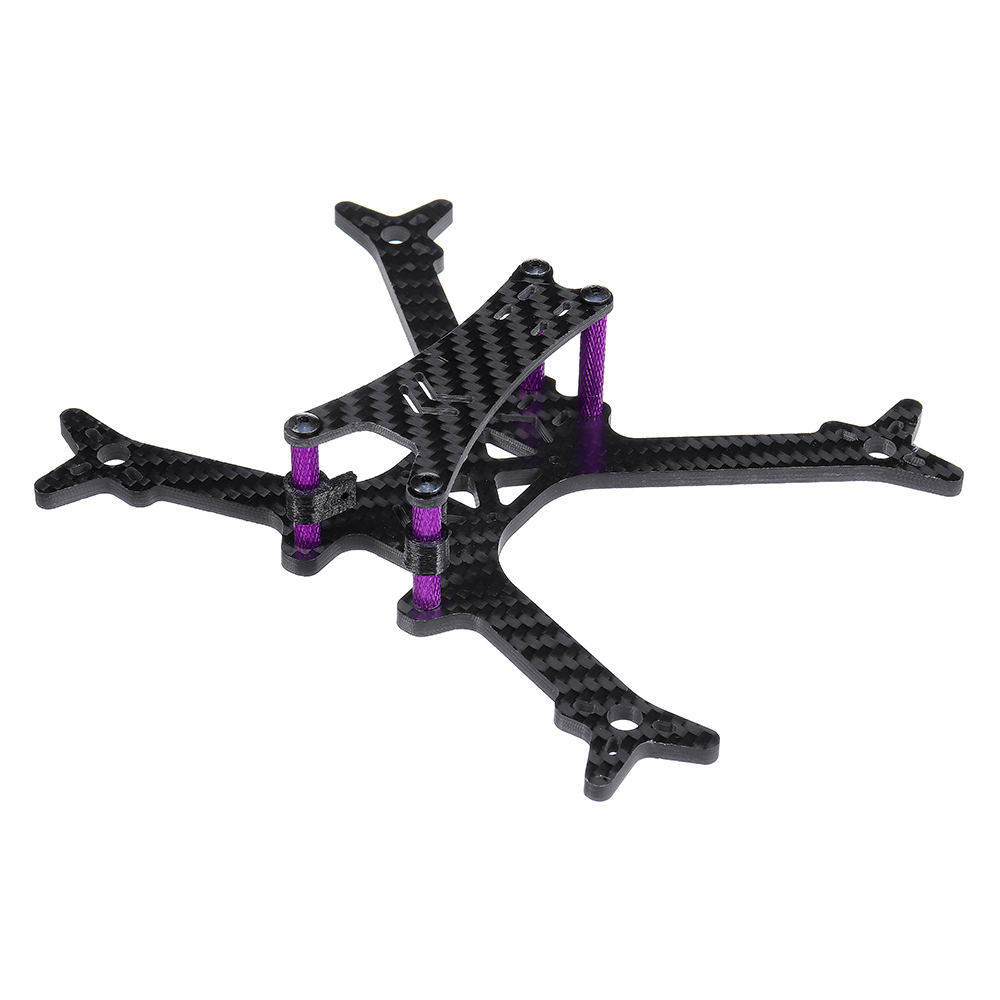

URUAV Hummingbird 145 145mm Wheelbase 4mm Arm Carbon Fiber Frame Kit for RC Drone
Specification:
Brand Name: URUAV
Model: Hummingbird 145
Item name: 145mm Frame Kit
Wheelbase: 145mm
Material: Carbon fiber
Arm thickness: 4mm
Thickness of top plate: 2mm
Thickness of bottom plate: 4mm

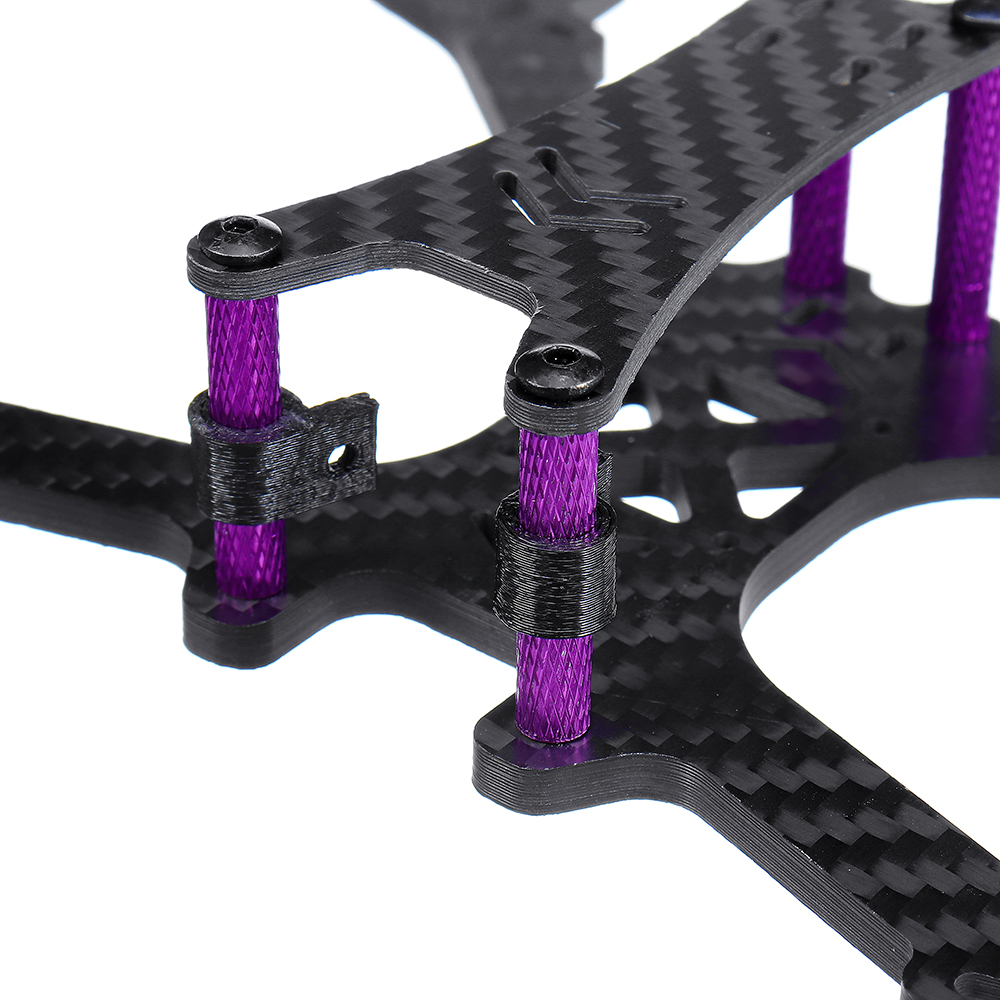

Standoff Height: 25mm ( M3)
Thickness of bottom plate: 4mm
Standoff Height: 25mm ( M3)

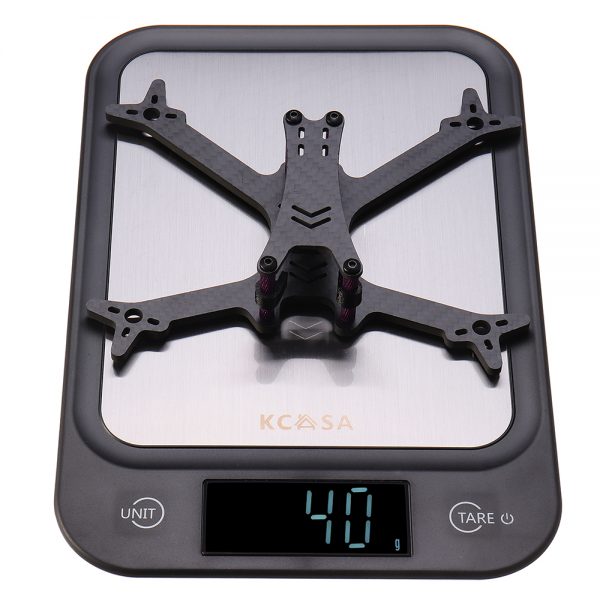

Net weight: about 40g
Recommend parts:
Flight Controller: 20x20mm F3 / F4 Flight Controller (M2)
ESC: 20x20mm 15A-30A 4in1 ESC
ESC: 20x20mm 15A-30A 4in1 ESC
Propeller: 3 Inch Prop
Motor: 1306 / 1407 / 1806 Motor ( 12×16)
Camera: 19x19mm Micro FPV Camera
Lipo Battery: 3S 1500mAh Lipo Battery
Camera: 19x19mm Micro FPV Camera
Lipo Battery: 3S 1500mAh Lipo Battery
The following parts are compatible: ( Not Included)
FC & ESC Flytower: LDARC 20x20mm 20A BL_S ESC & Omnibus F4 Flight Controller w/ OSD
Geprc 20x20mm Stable 20A BL_S ESC & F4 FC & 25/100/200mW VTX
Brushless Motor: LDARC XT1806 1806 2500KV 3S Brushless Motor CW / CCW
Propeller: Emax AVAN Mini 3 Inch 3X2.4X3 3-blade RC Drone FPV Racing Propeller
Camera: RunCam Micro Swift 2 600TVL 2.1/2.3mm FOV 160/145 Degree 1/3 CCD Camera
Package included:
1x URUAV Hummingbird 145mm Frame Kit
