Description

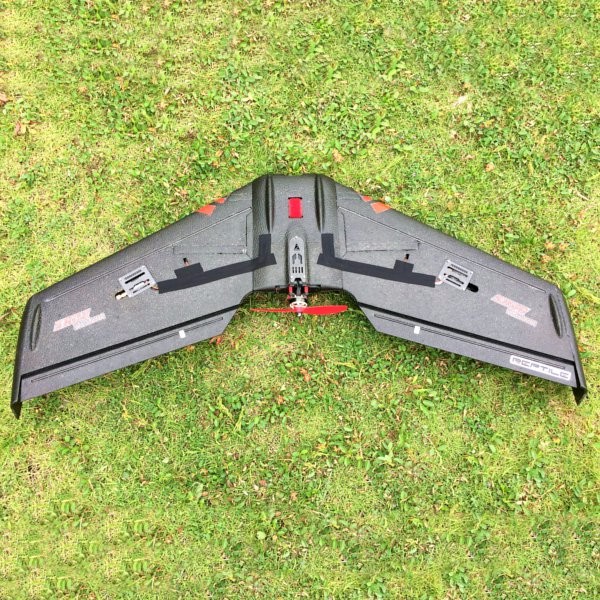

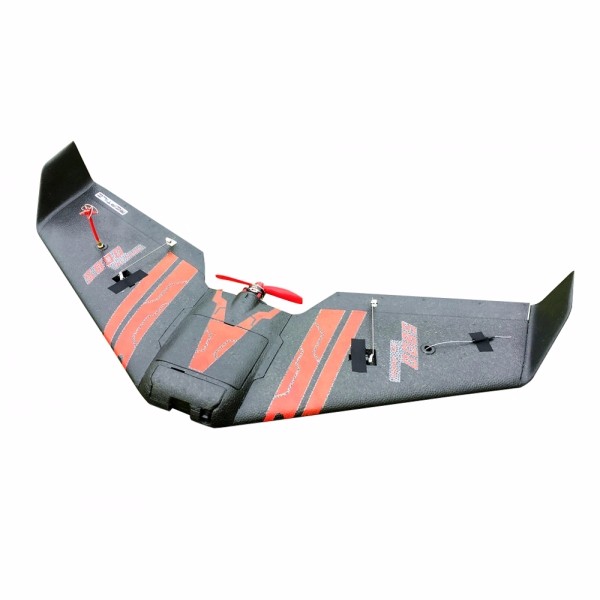

Reptile S800 SKY SHADOW 820mm FPV EPP Flying Wing Racer PNP With FPV System
Description:
| General | Brand Name: Reptile Item Name: S800 SKY SHADOW Material: EPP |
| Dimension and Weight | Wingspan: 820mm Overall Length: 405mm Package Weight: 1200g Package Size (L x W x H) : 435mm*270mm*130mm
|
| Electronic Devices | Servo: JX PS-1109HB*2 Motor: 2205 2300KV ESC: Reptile 20A ESC Battery: Max 1800mAh 3S(Not Included) Propeller: 6045 Flight Controller: 3-Axis flight controller Camera: 700TVL Image Transmission: 200mw with antenna Radio System: 2.4G 3CH with elevon mixing(Not Included) |
| Others | CG (center of gravity): 125mm behine the nose Minimum Age Recommendation: 14+ Experience Level: Intermediate Recommended Environment: Outdoor Is Assembly Required: Yes
|
Features:
High quality, fine workmanship
Streamlined design, high speed and low wind resistance
Comes wi 3-Axis flight control ensures a more stable flight
200mw image transmission enables real-time image transmission
700TVL camera gives you a clear flight footages and makes you enjoy the fun of FPV
Required Parts Sold On Our Site(Not Included):
3S 11.1V 1800 mAh Battery, Click Here
2.4G 6CH Radio System, Click Here
SkyRC D100 Balance Charger, Click Here
Want to buy KIT version? Please Click Here
Note:
The PNP version does not include the battery,transmitter,receiver or charger.
The new version doesn't include the motor mount and screws,if you want to buy,Click here.
PCB Manual, Click Here
Assembly Schematic, Click Here
Spare Parts, Click Here
Package Included:
2 x Wings
1 x Fuselage
2 x Small Wing Tips
1 x Nose Block
1 x Main Hatch Cover
2 x Servos
1 x 3-Axis Flight Control
1 x Flight Control Circuit Board Base
1 x 2205 Motor 2300KV
2 x 6045 Propellers
1 x 700TVL Camera
1 x 200mW AV Transmitter
1 x 20A ESC
1 x Sticker
1 x User Manual
,
,
,
,
,
