Description

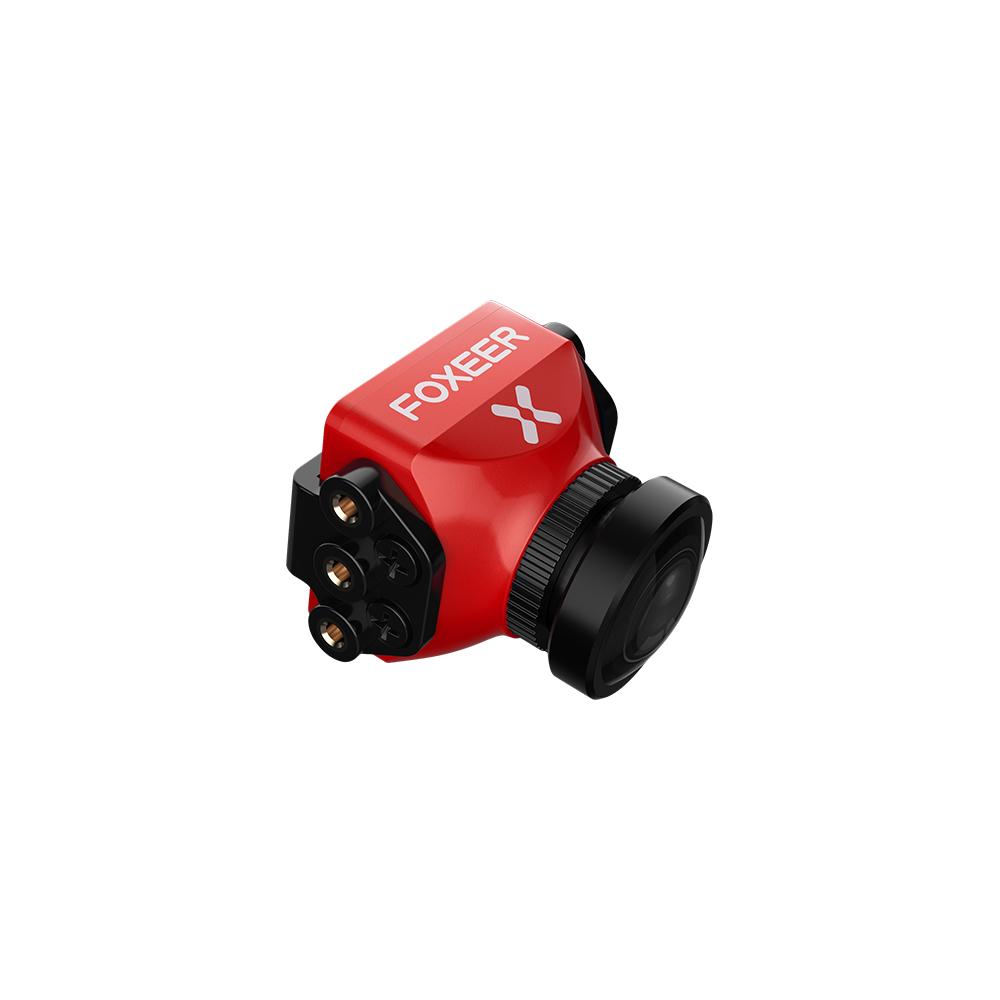

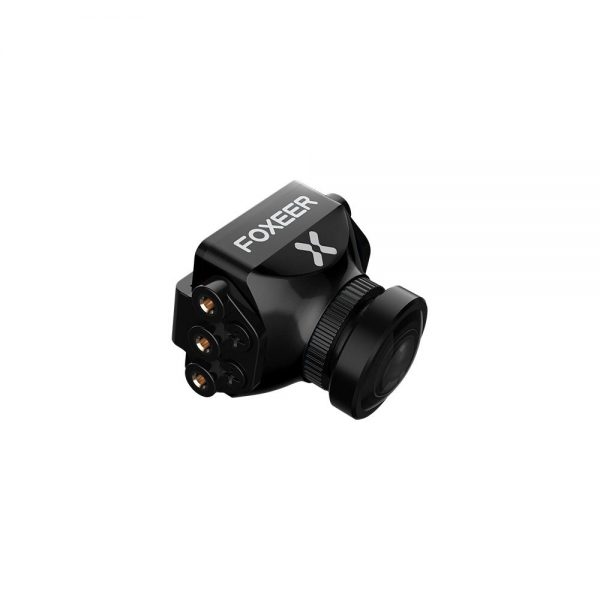

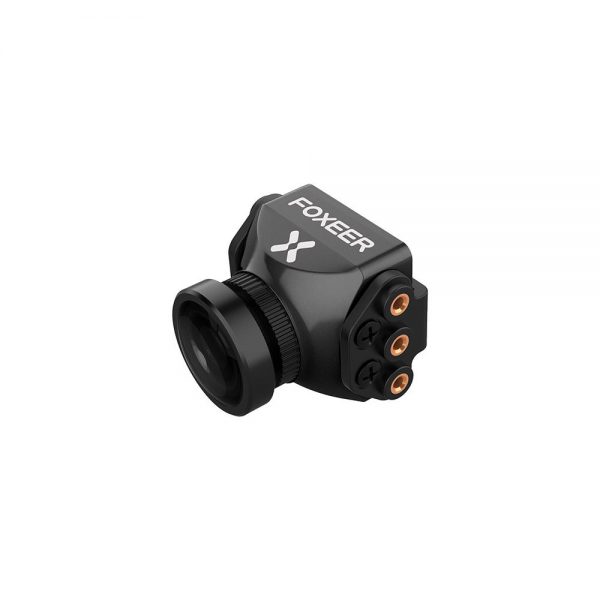

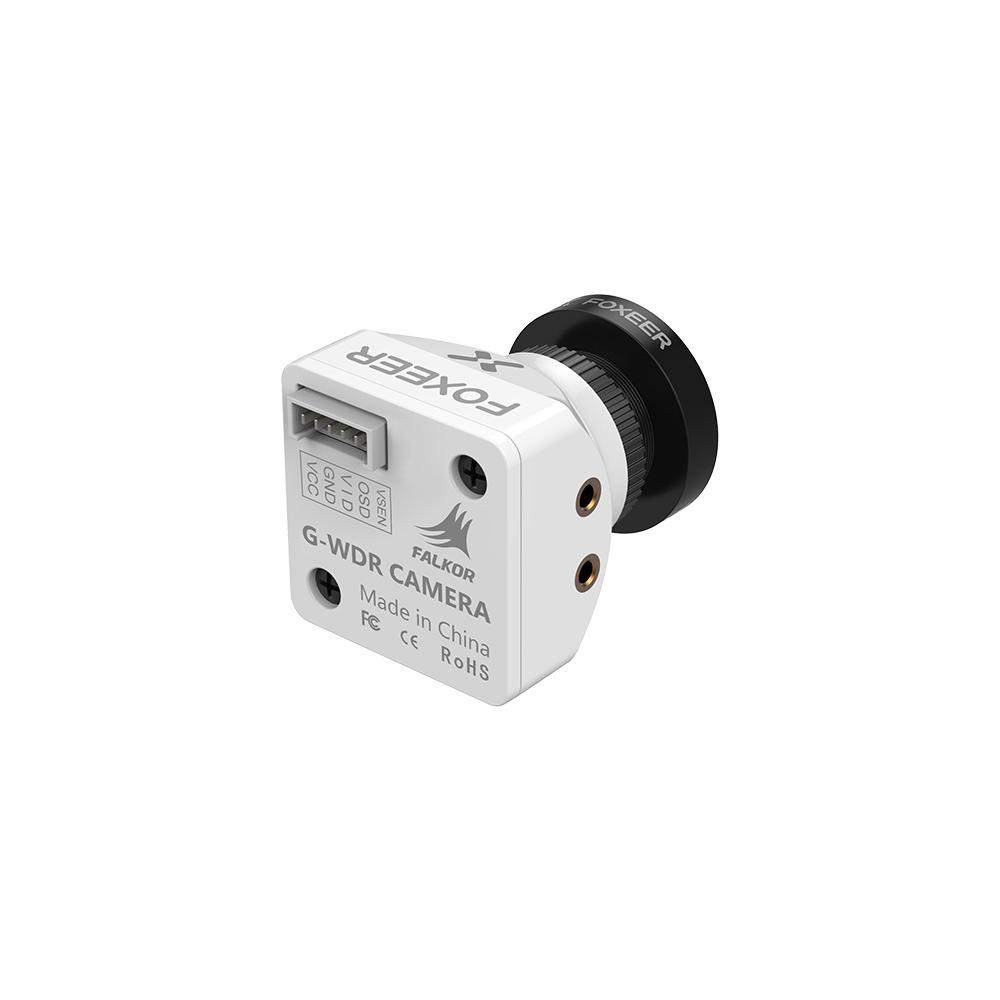

Upgraded Foxeer Falkor 1200TVL 1/3 CMOS Mini/Full Size FPV Camera 16:9/4:3 PAL/NTSC Switchable GWDR
Description:
Brand Name: Foxeer
Item Name: Falkor
Color: Black, White, Red(optional)
Size: 1.8mm, 2.5mm (optional)
Sensor Type: CMOS 1/3
Scale: 4:3 / 16:9 Switchable
TV System: PAL / NTSC Switchable
Resolution: 1200TVL
Shutter Speed (CCD IRIS): PAL: 1/25 ~ 1/10000 sec; NTSC: 1/30 ~ 1/10000 sec
Video Out: CVBS
Min. Illumination: 0.01Lux
White Balance: Auto
DNR: 3DNR
WDR: 100db
Day/Night Shift: EXT/Auto/Color/B&W
Flight OSD: Voltage/Cam Title/Time
Power Requirement: DC 5V ~ 40V
Language: English/Pyccknn/Espanol/Italiano/Francais/Polskzm/Portugues/Japanese
Working Temperature: -10℃ ~+50℃ RH90% Max
Working Humidity: 20~80%
Storage Temperature: -20℃ ~ +70℃
Storage Humidity: 20~95%
Dimension: 21.8×21.8mm(without bracket)
Weight: 8.7g
Features:
3 colors optional: White,Black,Red.
2 Lens size optional: 1.8mm, 2.5mm
4:3 / 16:9 Switchable, and PAL 50fps / NTSC 60fps Switchable
3 colors optional: White,Black,Red.
2 Lens size optional: 1.8mm, 2.5mm
4:3 / 16:9 Switchable, and PAL 50fps / NTSC 60fps Switchable
All-weather camera with Auto enviromental adapting.
Support camera remote control.
Good performance on LED environment flying.
More details even in the outside backlight environment.
More details even in the outside backlight environment.
Harness video & OSD separated.
Compatible with both mini and full size RC drone frame kit.
Compatible with both mini and full size RC drone frame kit.
Package Included:
1x Foxeer Falkor camera
1x Servo cable to Foxeer ClearTX VTX
1x Servo cable to TBS Unify VTX
1x 2pin OSD cable
1x OSD Board
2x Bracket
1x Manual
1x Screws set
