Description

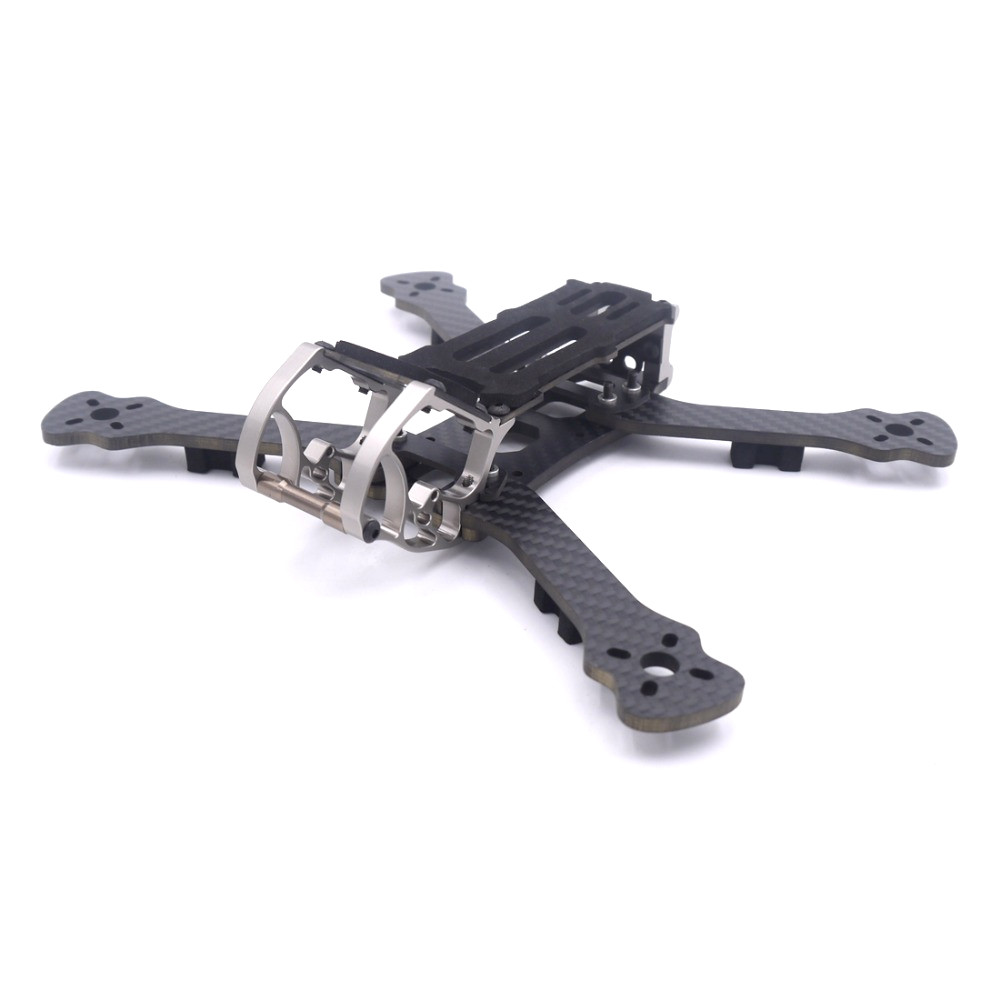

Umbrella 5 Inch 230mm /6 Inch 250mm/7 Inch 305mm Aluminum Hardware Cage RC Drone FPV Frame Kit
Specification:
Item Name: umbrella 5 inch/ 6inch/ 7inch frame kit

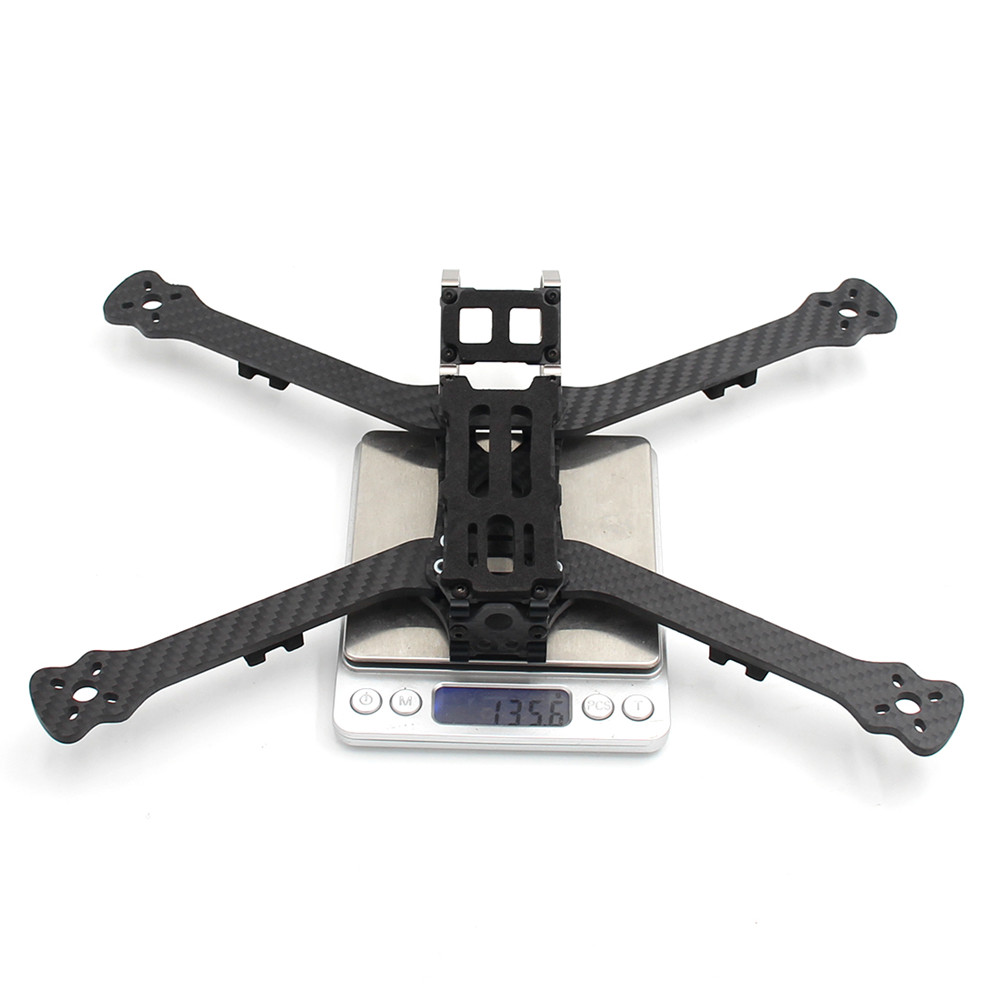

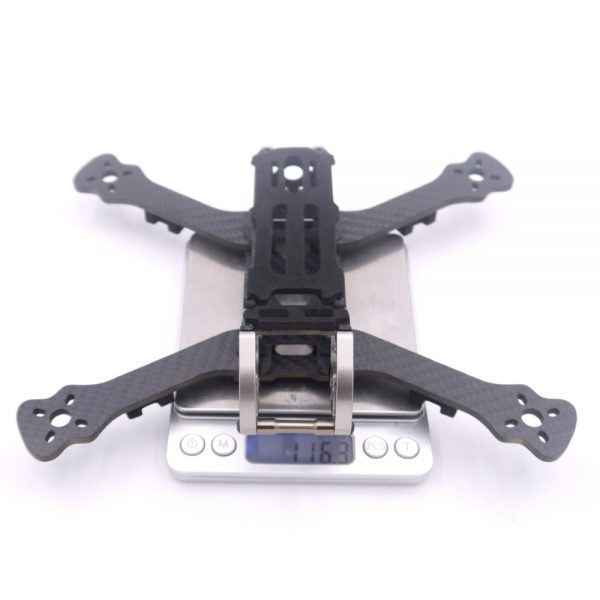

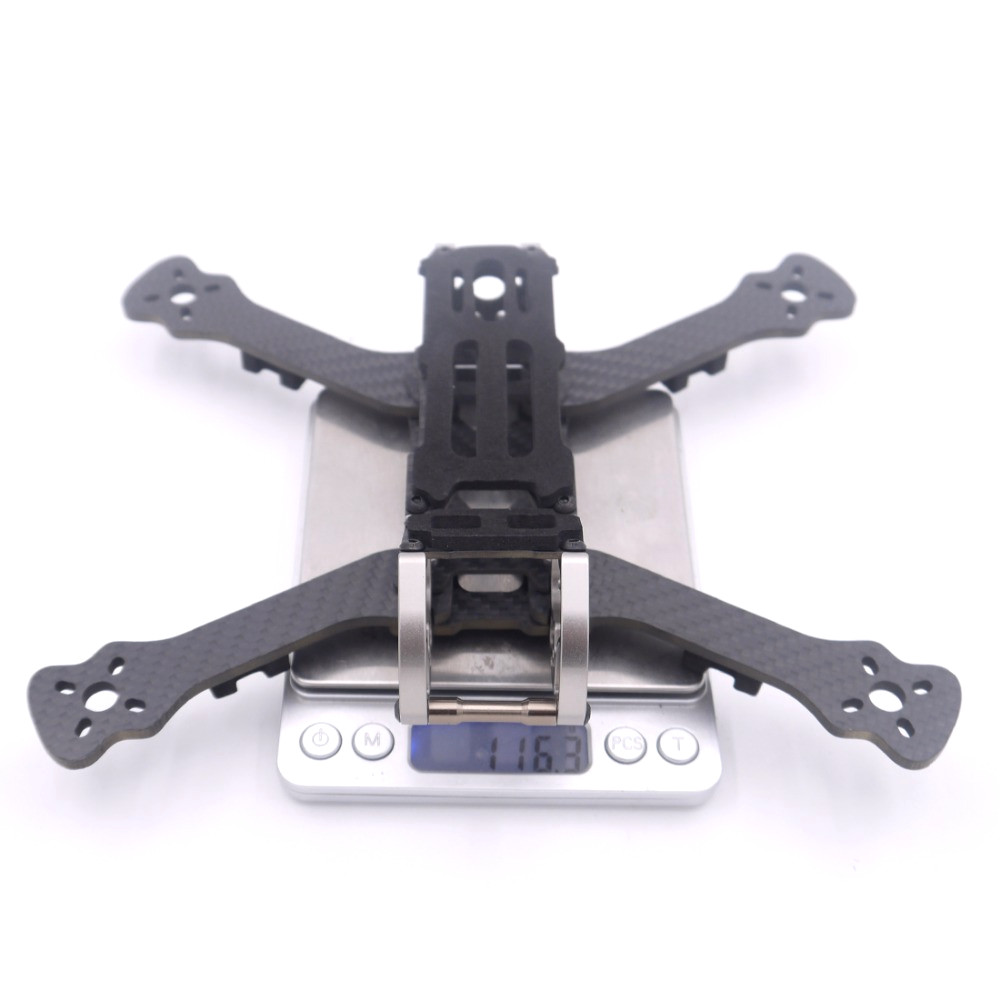

Frame Weight: approx 117 grams(5inch), 122 grams(6inch), 135 grams(7inch)
Wheelbase: 230mm(5inch), 250mm(6inch), 305mm(7inch)
Frame Shape: compressed X
Main Plate Thickness: 4mm
Arm Thickness: 4mm
Hardware:
Stainless Steel Bolts
Aluminum Cage
Aluminum Standoffs
Center Stack Mount: 30.5mm
FPV Camera Mount: 28.5mm (Swift v2, Arrow v3, etc)
Recommended Components:
Camera Mounting Width: 28mm
Flight Controller: 30.5×30.5mm Flight Controller
Motor Size: 2306/2450/22XX KV
Flight Controller: 30.5×30.5mm Flight Controller
Motor Size: 2306/2450/22XX KV
ESCs: 30a
Prop Size: 5"/ 6''/ 7''
LiPo: 4-5S/1300mAh

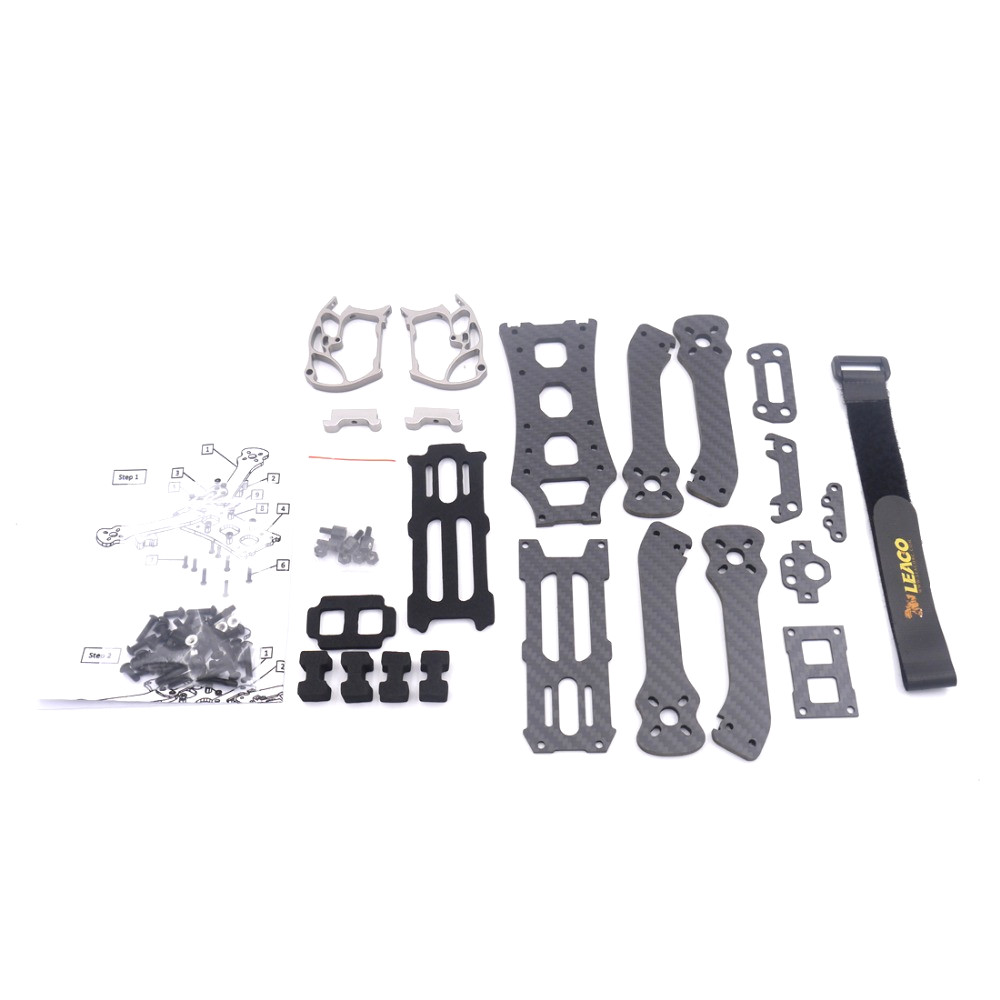

Package included:
1x umbrella 5 inch/ 6 inch / 7 inch frame kit
