Description
Specification:
Input Voltage: AC 100-120V or 220-240V, DC 9-32V
Output Voltage: 0.1-30.0V
Charge current: 2 x Max.16.0A
Discharge current:CH1: 0.1-3.0 A / 0.1-15.0 A
(External discharge mode) CH2: 0.1-3.0 A
Charge power:AC 2×150 W/DC 2x300W
Support power distribution
Wireless Charge Power: Max. 10W
Discharge power:
CH1: 8W/200W (External discharge mode Requires D200 discharger)
CH2: 8W
Balance current: Max. 1000 mA/cell
Support Battery Types: LiPo/LiFe/LiHV/LiIo
Cell count: 1-6 cells NiCd/NiMH battery
Cell count: 1-16 cells Pb battery voltage: 2V-24V (1-12 cells)
LCD Screen type: 3.5" 480×320
Dimensions:120x115x75 mm
Weight:750g
Features:
1)Two independent shuttle key control the charger.

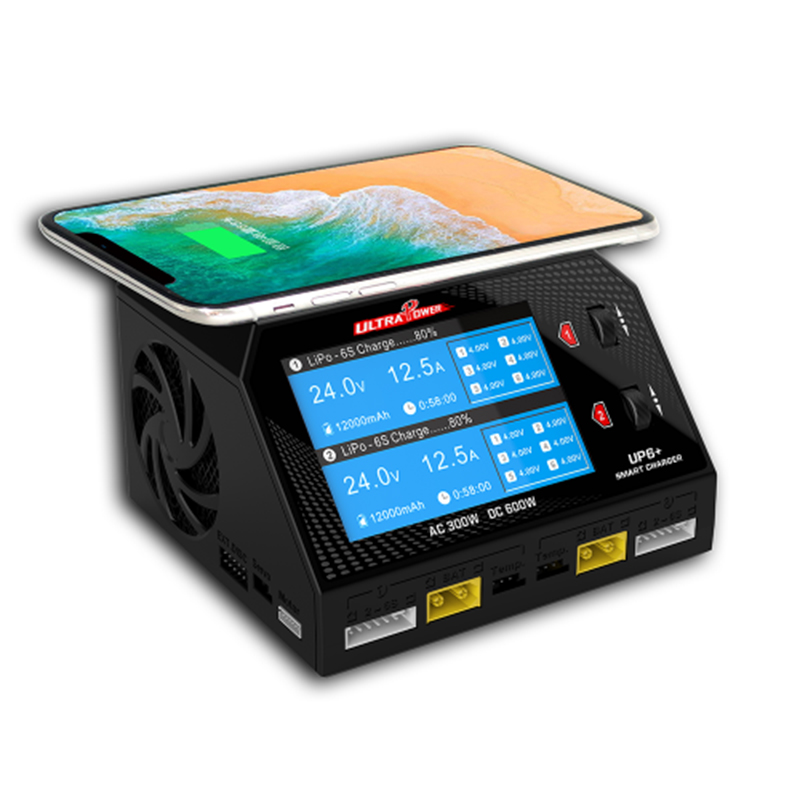

2)Wireless charging port, support to charge at Max.10W.
3)Support testing the servo and motor.
4)Support external discharging at Max.200W, 15A.
5)Support power distribution both in AC and DC mode.
6)With a USB port: 5V/2.1A.
7)PC Control & Firmware Upgrade
Packaging Included:

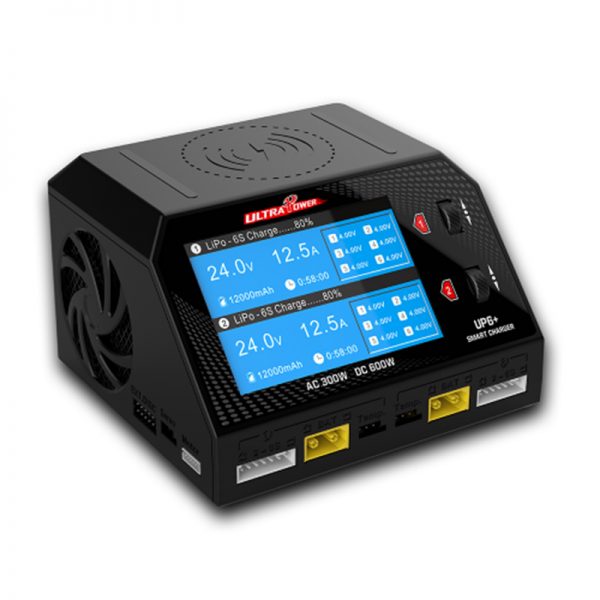

1 X ULTRA POWER UP6+ Charger
