Ultra Light Mini Brushed ESC Single Way 5A/10A 1S LIPO Electric Speed Control One-Way ESC DIY for Micro RC Airplane Aircraft Drone Plane
Description

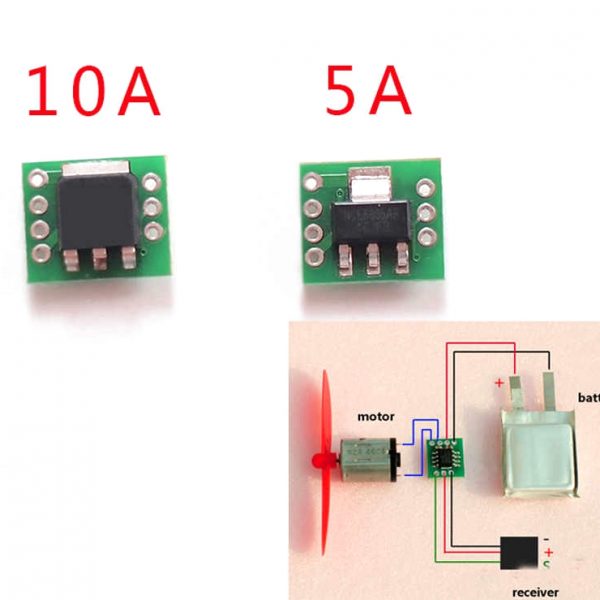

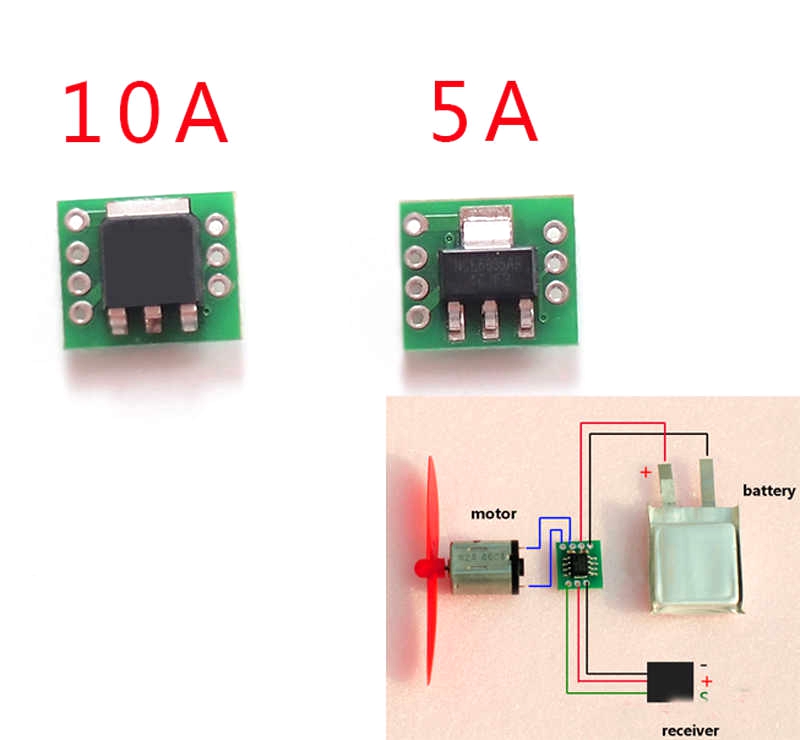

Item name:10A/5A ESC Board(without connector)
Voltage:3.3-4.2V

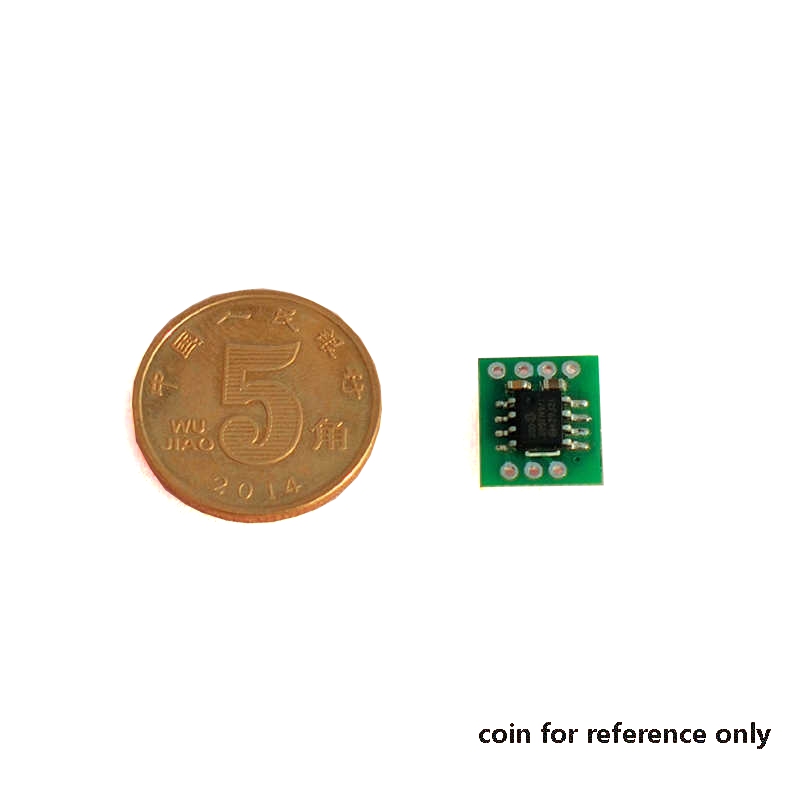

Size:9x13mm
Weight:5A(0.4g),10A(0.6g)
Output Current:5a/10a/20a
Protection: with Throttle protection,without Signal protection
Tips

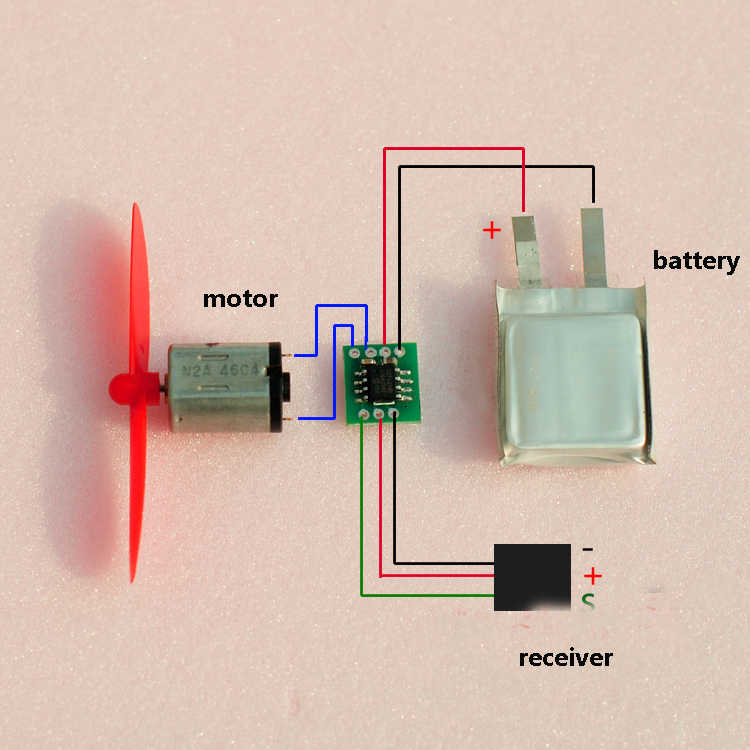

1. How to use:
-Connect the throttle channel of the receiver module.
-Connect the motor.
-Pull the throttle of the remote control to the bottom.
-Then the motor will make "didi" noises and it enter the working mode.
2. the current of the ESC is not the bigger the better, it alway according to the motor current, 5A ESC Board is the most recommendation for coreless motor.
Package Included
1 x ESC board
