Description

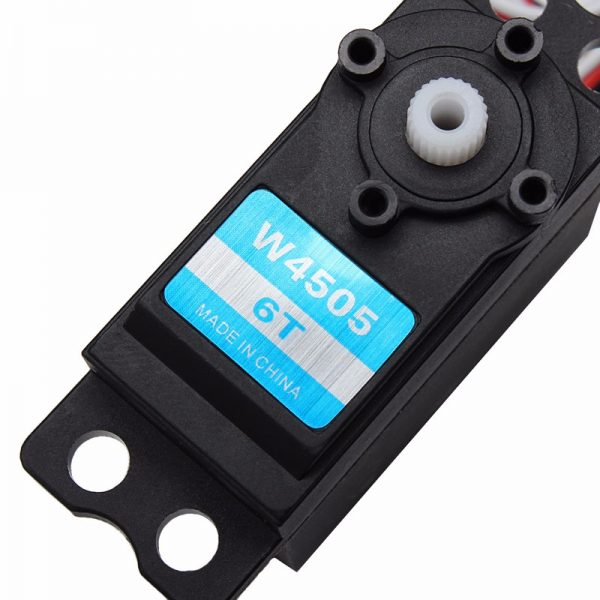

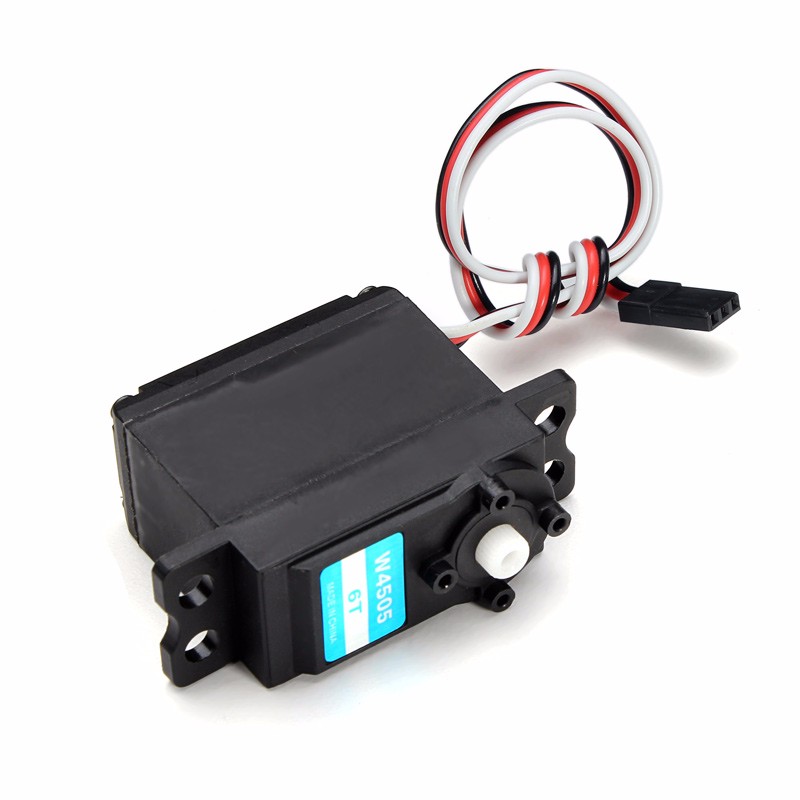

5kg.cm 6T plastic gears standard size sail winch for RC yacht W4505-6T
Description:
5kg.cm 6T plastic gears standard size sail winch for RC yacht SW4805-6PA
| Weight(g) | 45g (1.59oz) |
| A(mm) | 42 |
| B(mm) | 40.5 |
| C(mm) | 38 |
| D(mm) | 20.5 |
| E(mm) | 53 |
| F(mm) | 26 |
Specification:
Turn: 5.5-6T
Operating Voltage Range: 4.8~6V
Speed(4.8V) :0.9sec/360
Speed(6.0V) 0.7sec/360
Torque(4.8V) : 5.25kg.cm (72.92oz/in)
Torque(6.0V): 6.13kg.cm (85.15oz/in)
Running Current: 0.15~0.16A (at no load)
Working Current: 0.35~0.40A
Stall Current : 0.84~1.02A
Gears: heavy duty resin (plastic)
Connector Wire Length: JR 265 mm (10.43in)

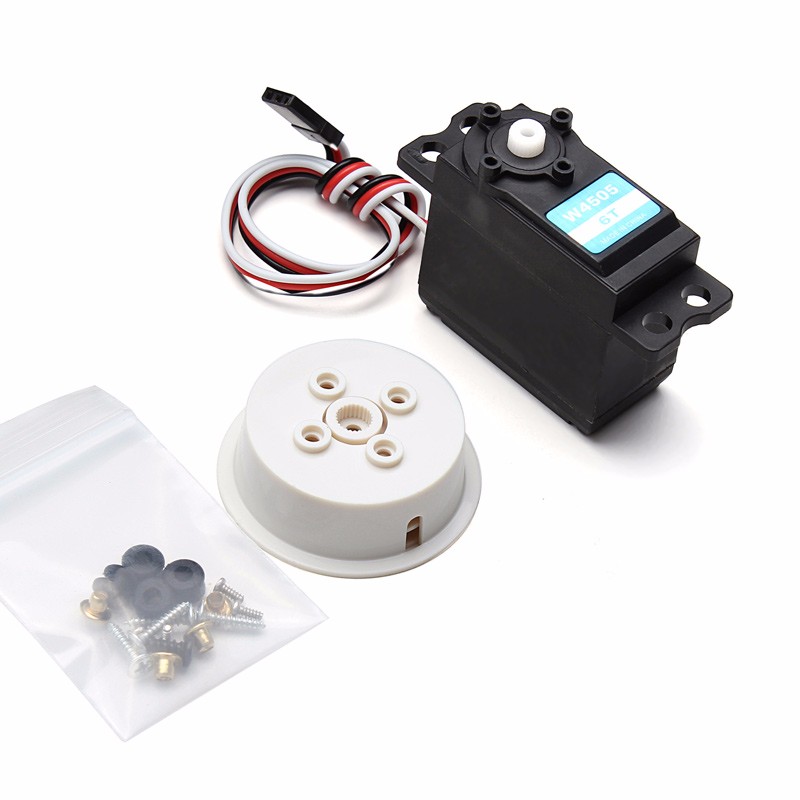

Package Included:
1 × Plastic Gears Sail Winch
