Description
Specification:
Operating Frequency: 5.8GHz
Bandwidth range: 500MHz(5.55-6.05GHz)
Match: return loss (S11) <- 20dB
Matchin: RL(S11)<
VSWR: <
Axial Ratio: <
Radiant efficiency: 95%

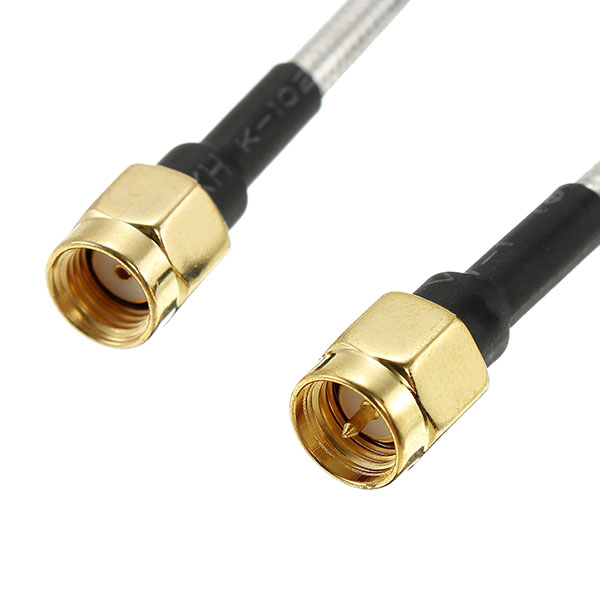

interface: SMA / RP-SMA Male
Weight: 8 g
Features:
1. Axis ratio less than 1.3, standing wave ratio 1.2
2. It weighs only 8 grams, PC material shell wrapped to avoid PCB damage

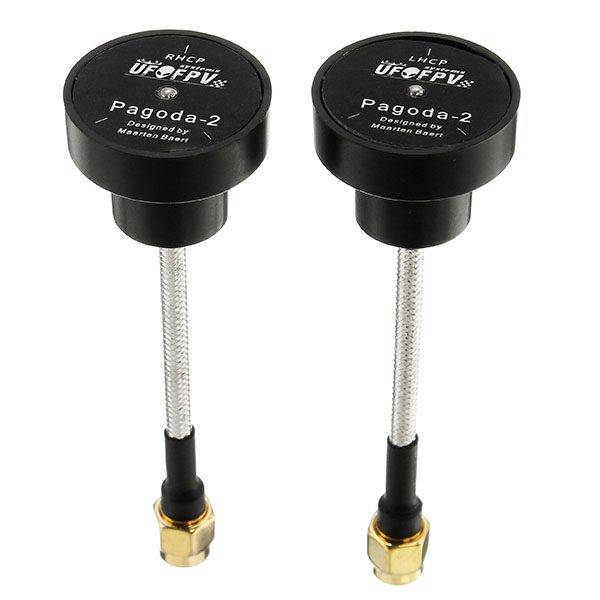

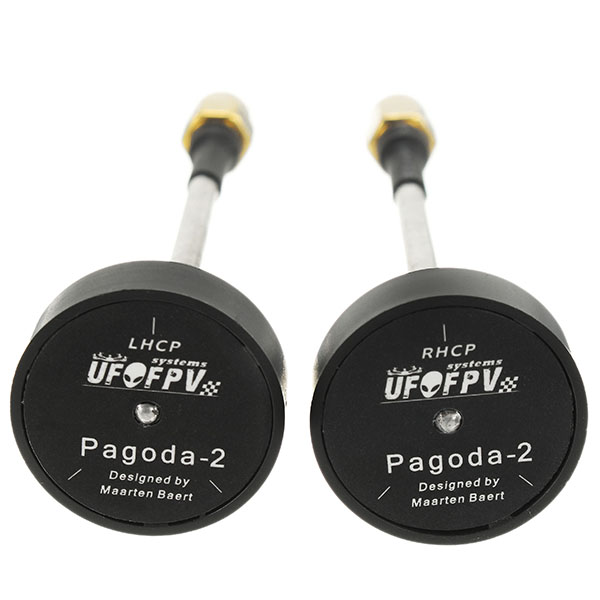

3. "Pagoda II" is based on Maarten Baert optimized circular polarized antenna design
4. Its structure consists of three layers of 1 ounce copper foil embedded in the PCB,
replacing the original typical of the wire structure components (this structure is easy to break)
replacing the original typical of the wire structure components (this structure is easy to break)
Package included:
1x Antenna
