Description
Specification:
Output Power:25mw
Supply Voltage:2.9-5.5v
Frequency Band:5362-5945 Mhz
Channel Customer:48
Channel Sel:Touch Switch
Input Format:Ntsc/Pal
Camera Resolution:700tvl
Lens Angel:h:120°/v:100°
Operating Temperature:-10℃~+60℃
Pcb Profile Dimension:14.5mmx12mm+15mmx15.6mm
Miniature And Light Weight Design: 3g
Total Weight: 4.2g
Features:
Compatible With Smartaudio v1 Protocol.
Mounting Bracket Hole Position:Standard m2 Screw Hole Position.

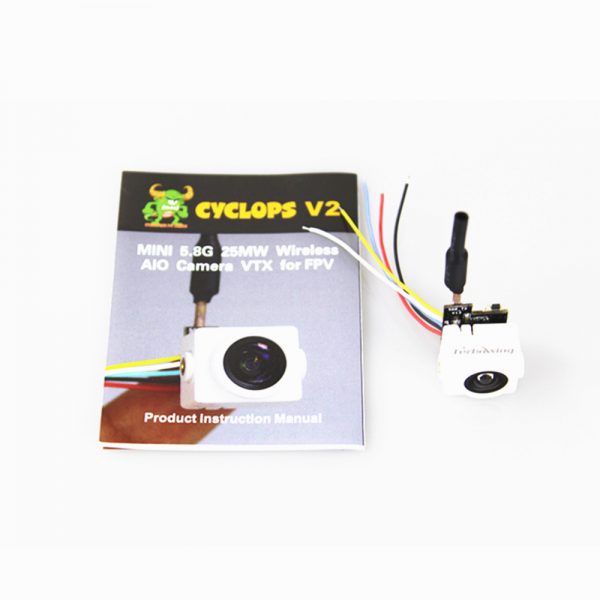

Package Included:

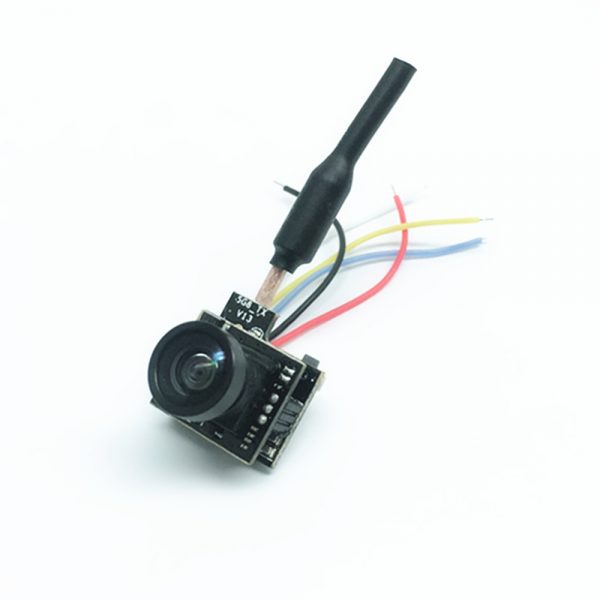

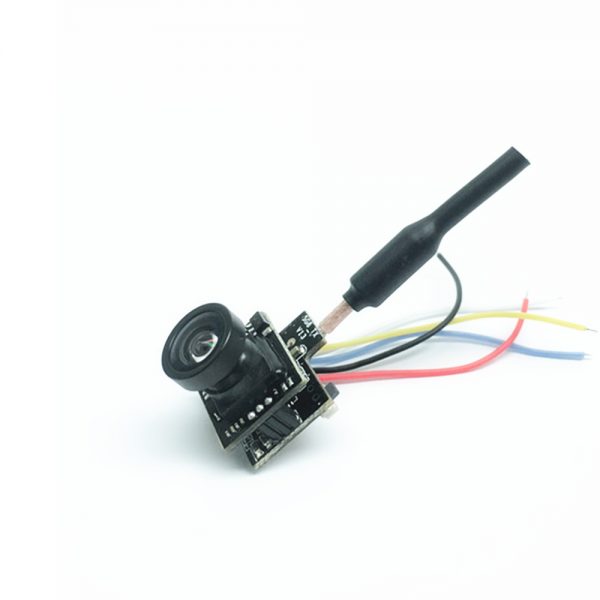

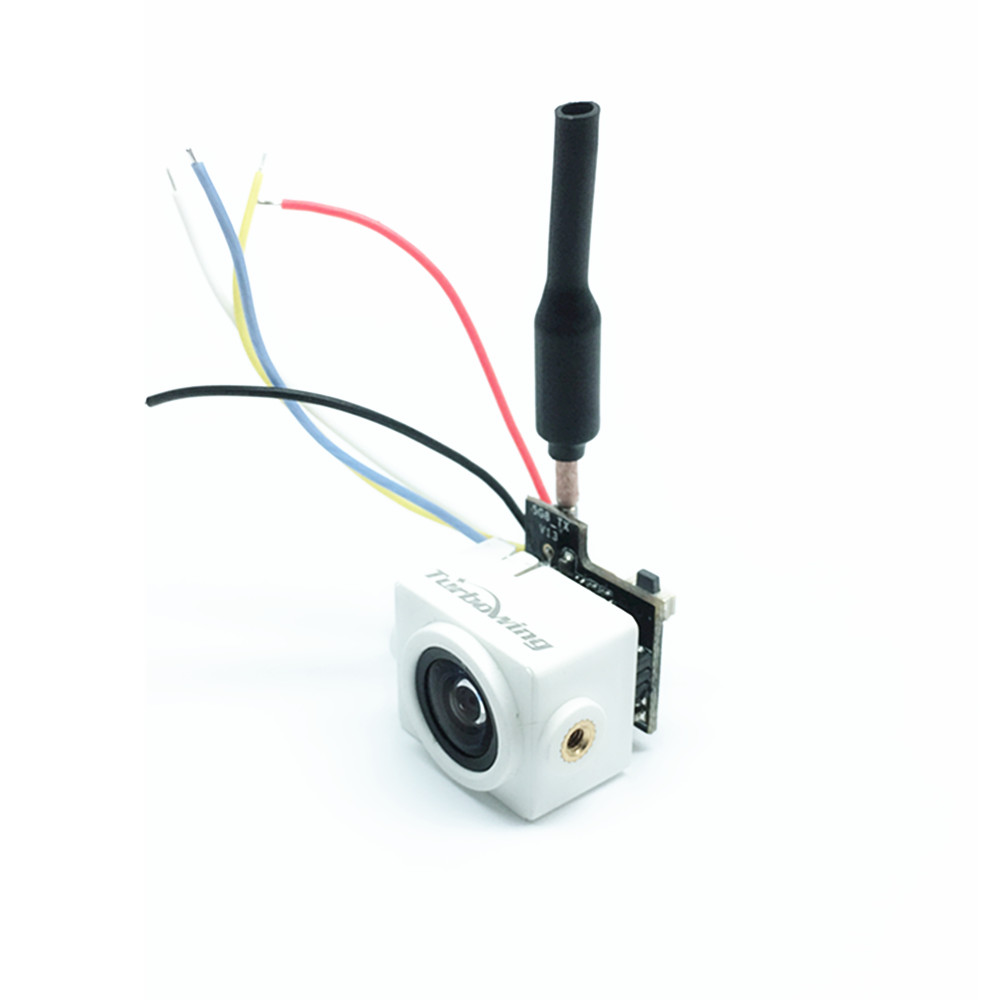

1 x 5.8g 48ch Fpv Camera & Transmitter
1 x English Manual
Instructions:
1.Red And Blue Two Rows Lights Different Colors Blinking Combinations Will Move Position Of Thefrequency;
2.With Blue Led Lights Abcdef Expressed As a Frequency Group, With a Red Led Light 12345678 Shows As The Channel;
3.Frequency Selection:Long Press The Button For 2 Seconds To Enter The Frequency Group Settings,
Press The Button To Change The Frequency Group From a To f, Select The Appropriate Options You Want Then Long Press
The Button To Exit Frequency Group Settings;
Press The Button To Change The Frequency Group From a To f, Select The Appropriate Options You Want Then Long Press
The Button To Exit Frequency Group Settings;
4.Change Channels-Short Pressing The Button, Will Changes The Channel To 1 Through 8, Select The Appropriate Option
To Complete the Frequency Selection.
To Complete the Frequency Selection.
