Description
Specifications:
Frequency: 5.8G 48CH
Resolution: 700 TVL
Pixel: 5 million
Power: 25MW
Voltage: 2.9-5.5V
Current: 180MA
Frequency range: 5362-5945MHZ
Signal system: NTSC/PAL switchable
Lens: H:120 degrees /V:100 degrees
Power indicator: LED
Channel carrier power difference: 1DB
Omnidirectional drop antenna impedance: 50 0hms
Volume: 12×14.5mm
Net weight: 4.3g
Working temperature: -10°C~+60°C
PCB size: 14.5mm*12mm+14.5mm*15.6mm
Features:
1.This transmitter camera is compatible with OSD.
2.700TVL high picture quality,Low Power Consumption.
Package included:

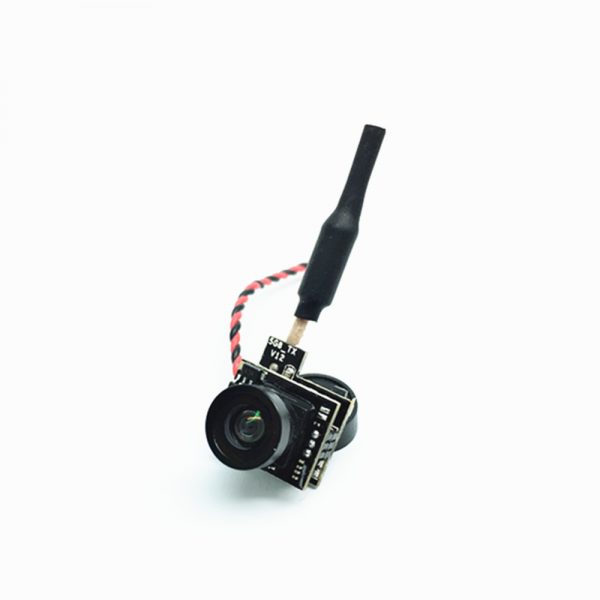

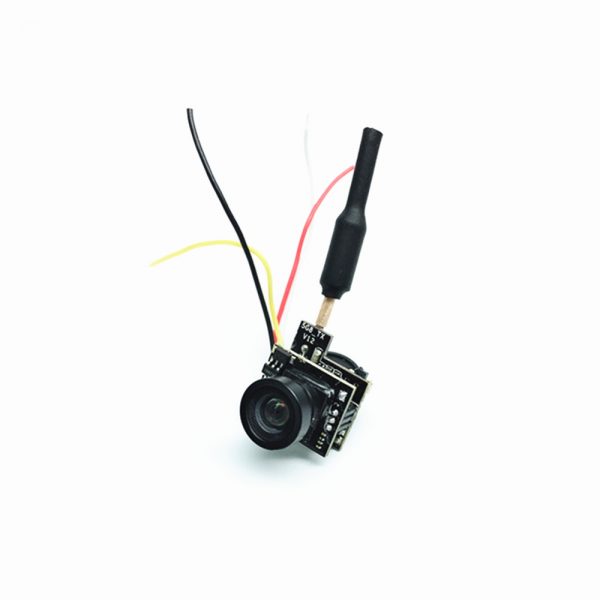

1x Transmitter module
1x Wide angle lens camera
1x Antenna
1x Power interface (VI VO for OSD connect)
,
,
,
,
,
,
