Description

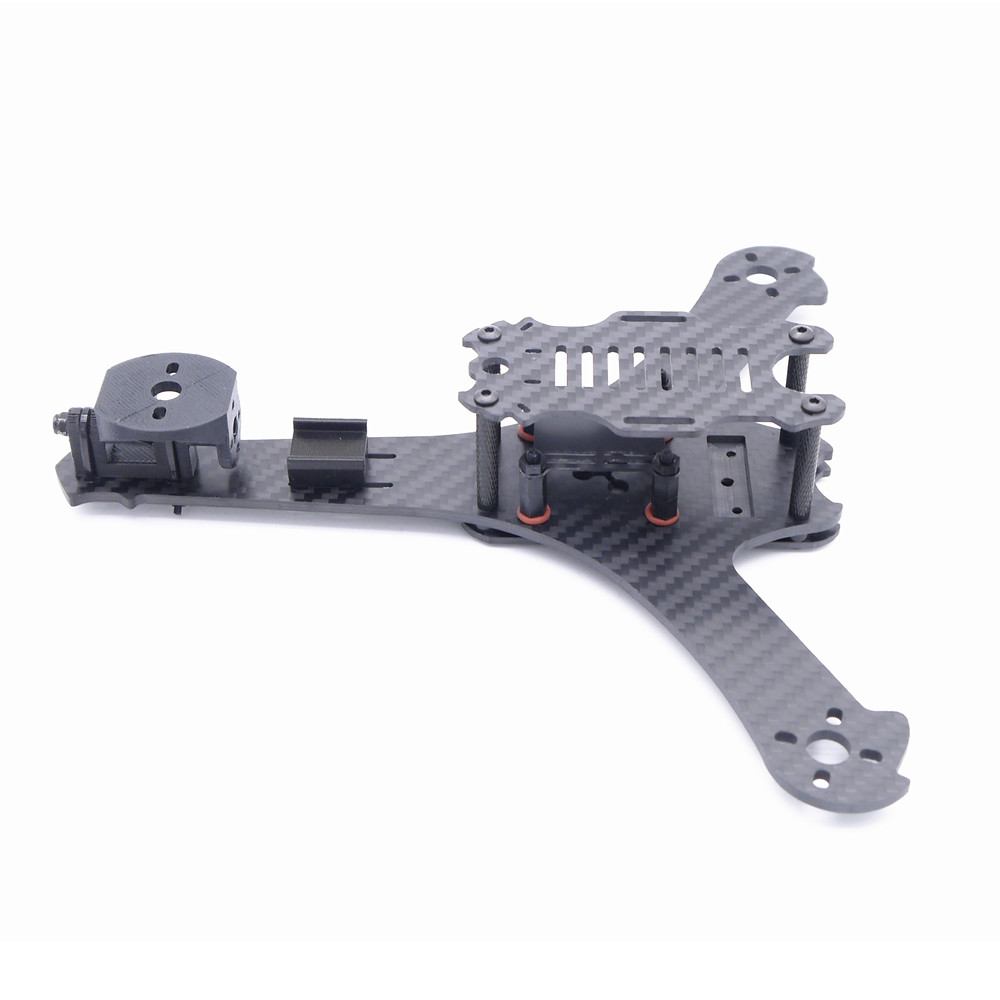

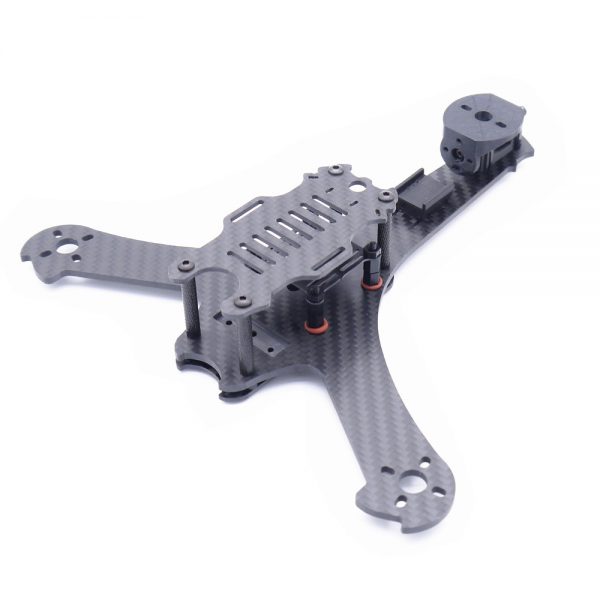

Tricopter5 170mm Wheelbase 3mm Arm Tricopter Frame Kit for RC Drone FPV Racing
Specification:
Model: Tricopter5
Item Name: 170mm Wheelbase Tricopter Racing Frame Kit
Wheelbase: 170mm
Arm Plate Thickness: 3mm
Material: 3K Carbon Fiber
Upper Plate Thickness: 2mm
The Thickness of Battery Mounting Plate: 1mm
Standoff Height: 30mm
The Material of Servo Mounting Base: 3D Printing TPU
Weight: about 87g
Recommend Parts:
Flight Controller: 30.5×30.5mm F3/ F4 Flight Controller
Brushless Motor: 2204/2205/2206/2306 Motor
Brushless ESC: 20-40A ESC
Servo: Emax 17g Servo with servo rocker arm
Propeller: 5 Inch Propeller
FPV Camera Mounting Width: 28mm
Lipo Battery: 4S 1000mAh-2200mAh Lipo
The following Parts are Compatible: ( Not Included)
FC&ESC&VTX Stack: Holybro Kakute F4 V2 FC Atlalt HV 25-600mW VTX Tekko32 35A ESC
Brushless Motor: Emax RS2205 2205 2300KV Racing Edition CW/CCW Brushless Motor
Servo: EMAX ES3004 17g 3.5kg 0.13sec 23T Metal Gear Analog Servo
Propeller: 10 Pairs LDARC 5040 5x4x3 5 Inch 3-Blade Propeller CW & CCW
FPV Camera: RunCam Sparrow WDR 700TVL 1/3 CMOS FPV Camera N/P Switchable
Lipo Battery: ZOP Power 14.8V 2000mAh 4S 65C Lipo Battery XT60 Plug
Package Included:
1x Tricopter5 170mm Frame Kit
