Description
Feature:
1.Charge, discharge and balance management support Lipo 8S, LiHV 8s,LiFe 8S, NiMh 20s ,Pb 12S battery
2.Can measure PWM / PPM / SBUS / DBUS and other
signal values,
3. Can measure battery voltage, battery internal resistance, ESC watt meter;
4.Can output PWM / PPM / xBUS standard signal, constant current constant voltage source, and USB5.0V;
5.Charger current: MAX 15A @300W
6.Discharger current: reccycle mode 15A@300W Nomal:3A@20W
7.Lixx Battery full voltage controllable (TVC function)
8.Multi-language optional
9.Udisk firmware upgrade(Slave device)

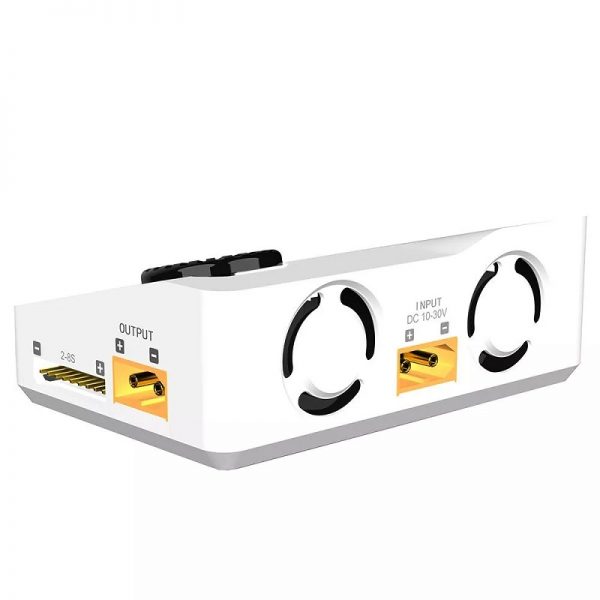

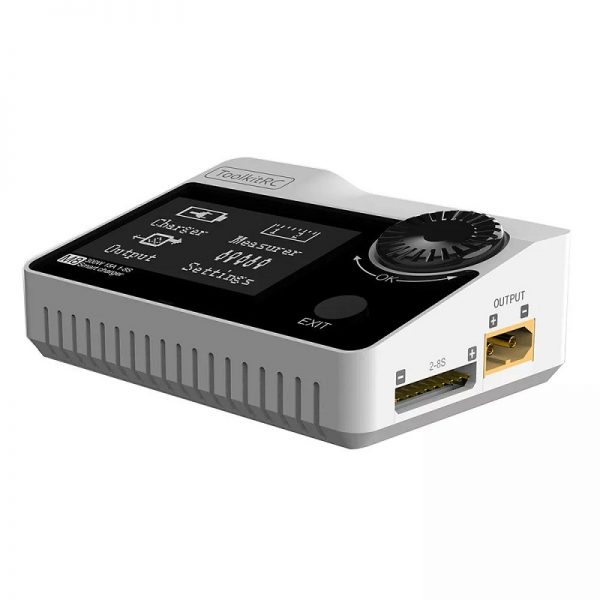

Specification of ToolkitRC Charger:
Input Voltage: DC 10-30V
Output Voltage: 0-30V
Charge Current: 0.1-15A
Discharge Current: 0.1-15A(Recycling mode)
0.1-3A(Internal consumption mode)
Max Charge Capacity: 300W
Max Discharge Capacity: 20W
Supported Batt. Type:LiFe/Lilon/LiPo/LiHv (2-8S)
NiMH/Cd(1-20S)
Pb(1-10S)

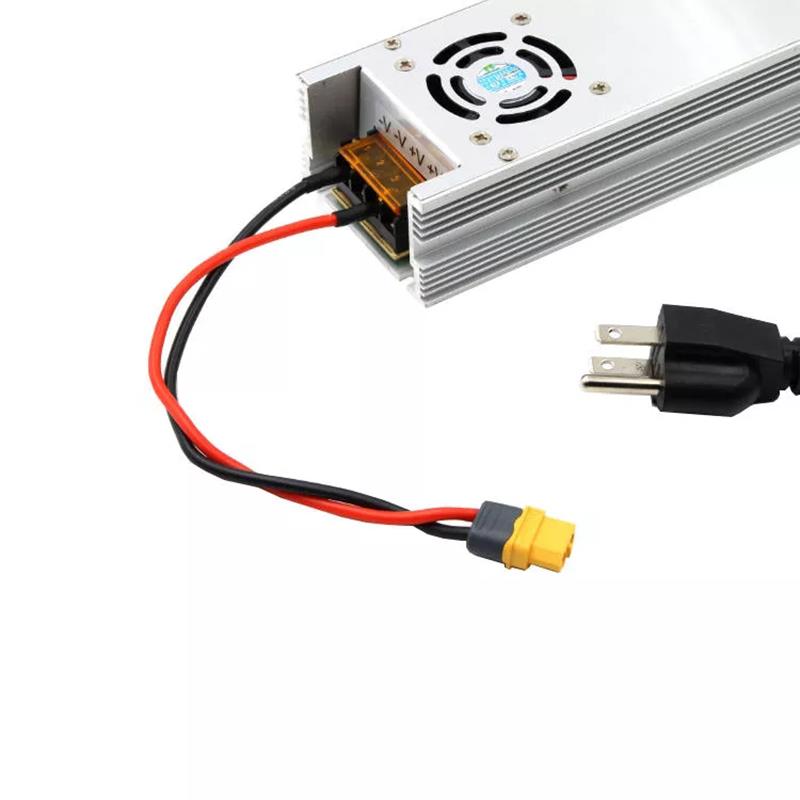

Specification of LANTIAN Power Supply:
Voltage Range: AC 110-220V
Current: 16.6A
Power: 400W
Size: 222×70×38.8mm
Weight: 668.5g
Packaging Included:
1X iToolkit Charger
1X LANTIAN Power Supply
