Description
Specifications:
Brand Name: Tony Ray’s Aero Model

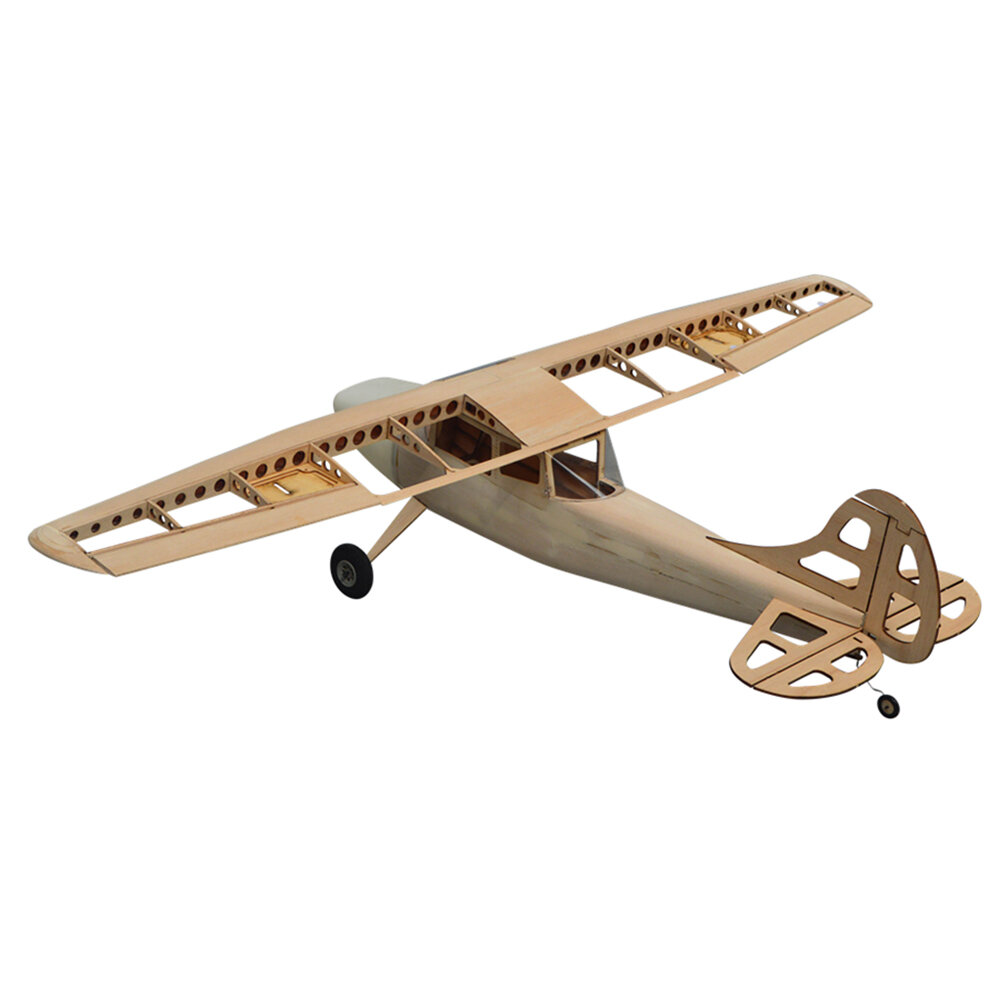

Item Name: Cessna L-19 Bird Dog
Material: Balsa Wood
WingSpan: 29.5 in / 75cm
Wing Area: 7.15 sq dm
Flying Weight: 150g-180g
Fuselage Length: 50cm
Scale: 1 / 15
Requires (Not Included):
RC transmitter with at least 4 channels
Aileron: 2.5g servos(ES9251) *2pcs
Rudder&Elevator: 2.5g servos(ES9251) *2pcs
Motor system: 1503 2750KV
English Manual, Click Here
Package Included:
1x 2.0mm Plywood
2x 2.0mm Balsa
1x 2.0mm Paulownia
4x 1.0mm Balsa
1x 1.0mm Plywood
1x PVC sheet
2x Paper hinge
2x PU wheels
4x pin
1x 25cm Steel rod (diameter:1.5mm)
1x 10cm Steel rod (diameter: 0.8mm)
2x Carbon rod (diameter: 1mm)
2x M2 Four Claws Nut
20x M2*8 Screws (Spacer Version)
3x M2*5 Screws (Spacer Version)
10x M1*3 Screws
15x M1.7*6 Screws (Spacer Version)
4x Heat shrinkable tube
2x Canopy
Note: This is KIT Version, all the electronic devices and glue are not included.
