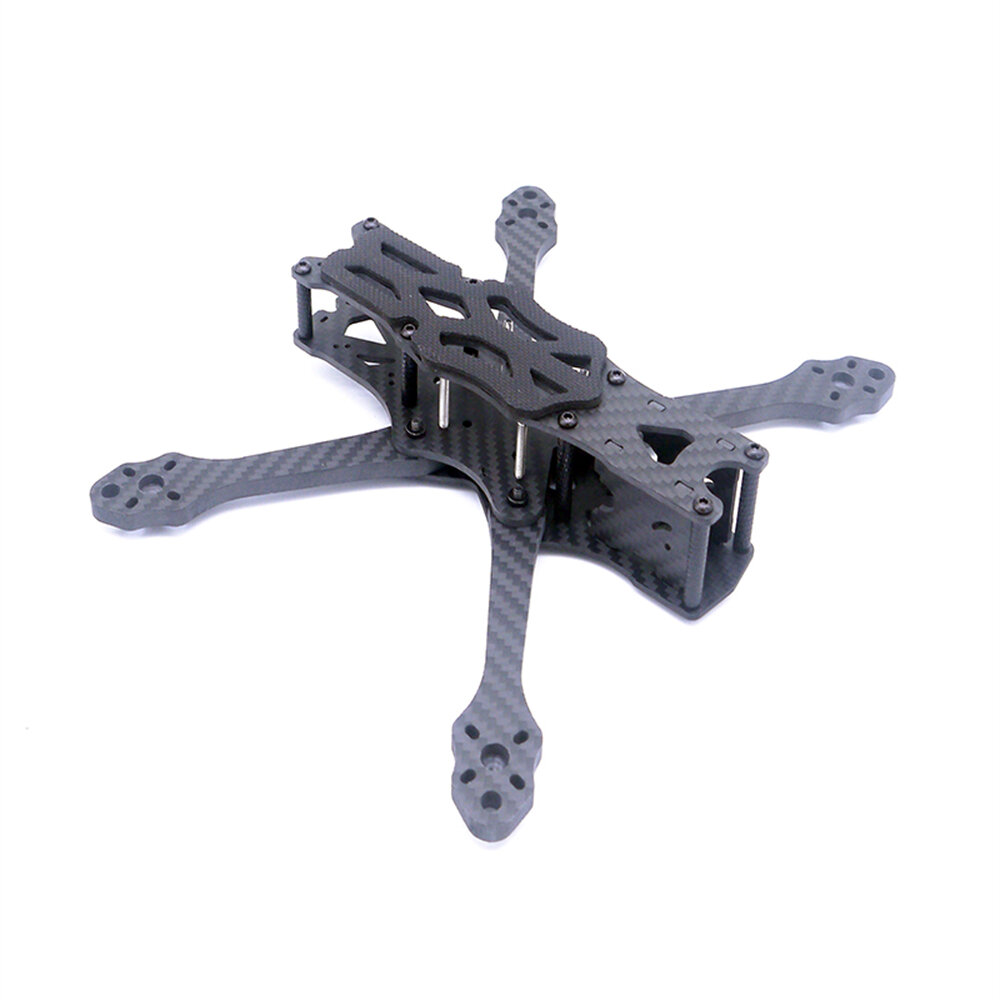

TEOSAW APEX X5 X6 X7 225mm 275mm 315mm Wheelbase 5 6 7 Inch Frame Kit Compatible with DJI O3 Air Unit VISTA Air Unit Analog VTX PFV Racing Drones

Model:

APEX X5

APEX X6

APEX X7

Wheelbase:

225mm

275mm

315mm

Appearance Size:

Approx.165mm x 213mm x 35mm

Approx.189mm x 253mm x 35mm

Approx.212mm x 286mm x 35mm

Weight:

Approx.134g

Approx.143g

Approx.151g

Structure:

X-type split

Thickness:

Arm 5.5mm, bottom plate 2.5mm, splint 2.5mm, upper plate 2.0mm, side plate 2.0mm

Applicable Propeller Size:

5-5.1 Inch

6 Inch

7 Inch

FC Mounting Hole:

20*20mm（M3），30.5*30.5mm（M3）

VTX Mounting Hole:

20*20mm（M2），25.5*25.5mm（M2）

Camera Installation Width:

20mm/19mm

Internal Height:

Approx.20-28mm

Motor Mounting Hole:
