Description
Notice:
1. It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc.
2. It Comes unassembled. Need build by buyers.
Specifications:
Brand: TEOSAWModel: APEX DC5/DC7

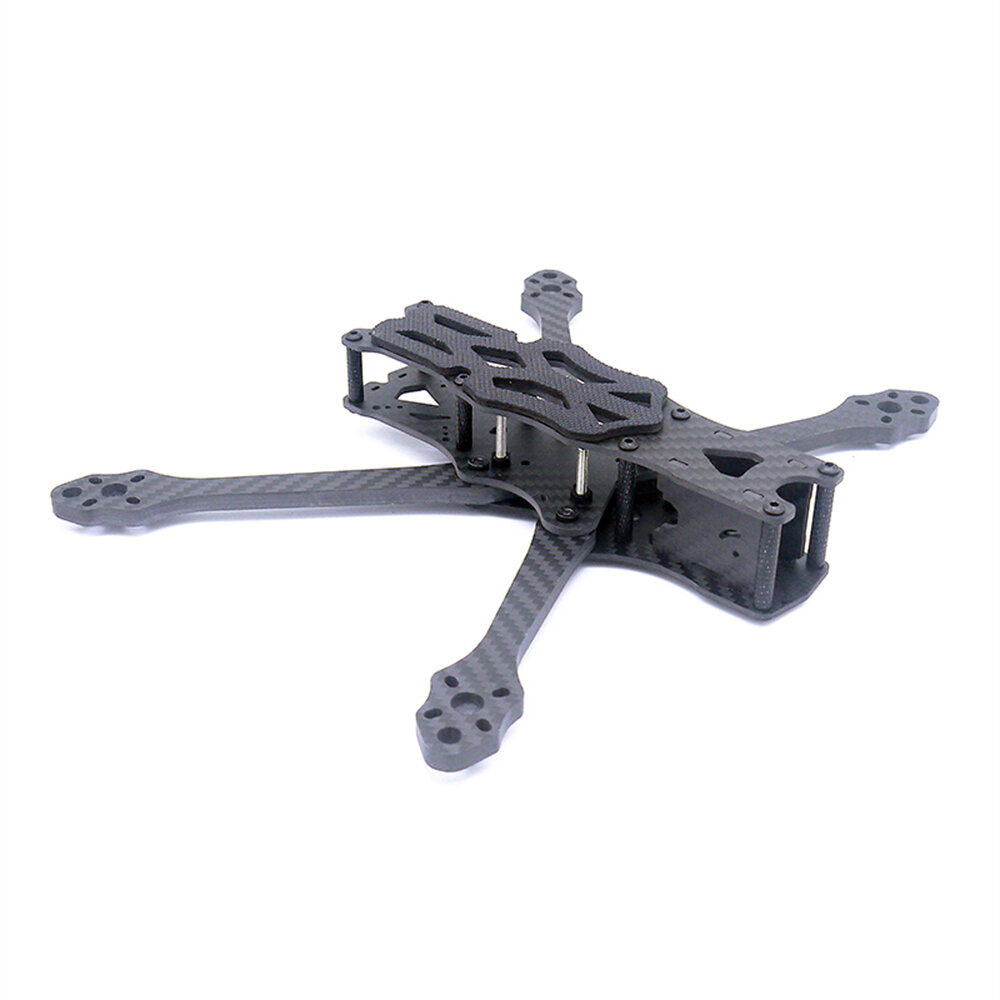

Item Name: 5 Inch/7 Inch Frame Kit
|
Model: |
APEX DC5 |
APEX DC7 |
|
Wheelbase: |
245mm |
340mm |
|
Appearance Size: |
187mm x 230mm x 35mm |
222mm x 309mm x 35mm |
|
Weight: |
Approx.138g |
Approx.170g |
|
Structure: |
DC Structure |
|
|
Thickness: |
Arm 5.5mm, Bottom Plate 2.5mm, Splint 2.5mm, Upper Plate 2.0mm, Side Plate 2.0mm |
|
|
Applicable Propeller Size: |
5-5.1 inch |
7 inch |
|
Flight Controller Mounting Hole: |
20*20mm（M3），30.5*30.5mm（M3） |
|
|
VTX Mounting Hole: |
20*20mm（M2），25.5*25.5mm（M2） |
|
|
Camera Installation Width: |
20mm/19mm |
|
|
Internal Height: |
约20-28mm |
|
|
Motor Installation Mounting Hole: |
16*16mm（M3），19mm*19mm（M3） |
|
|
Compatible VTX: |
DJI O3 Air Unit/VISTA Sky Unit/Analog, etc. |
|
|
Sheet Material: |
3K（T700） |
|
| Weight | 0.138 kg |
|---|
