Description
Specification:
Input power: 3S-6S Li (11V-26V)
Operating current: 30mA (@ 25V) / 50mA (@ 12V)
Stall current: 350mA (@ 25V) / 700mA (@ 12V)
Attitude control accuracy: ± 0.02 degrees
Maximum controllable speed:
Rotation direction (PAN): ± 200 ° / s
Tilt direction (TILT): ± 200 ° / s
Rolling direction (ROLL): ± 200 ° / s
Controllable rotation range:
Rotation direction (PAN): ± 330 °
Tilt direction (TILT): -135 ° to + 45 °
Rolling direction (ROLL): ± 48 °
S-Bus / PPM / DSM receiver support
Working environment temperature: -20 ℃ ~ +50 ℃
Weight: 160g (only the gimbal)
Weight: 160g (only the gimbal)
Maximum dimensions (LWH): 60 mm * 75 mm * 100mm

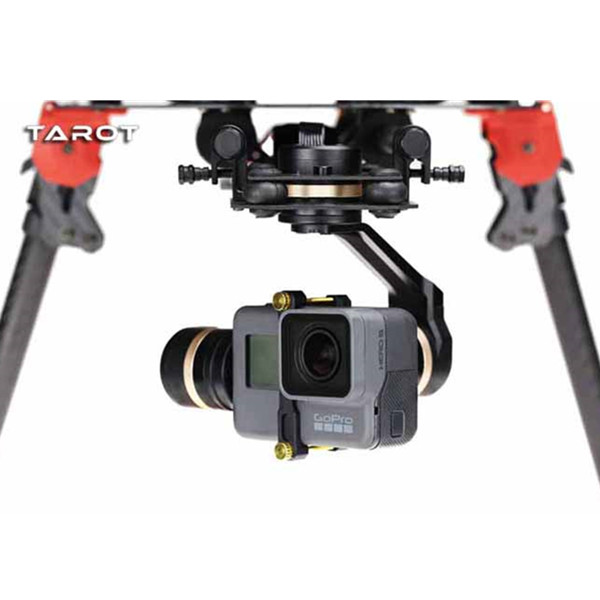

Applicable Camera Type: GOPRO HERO 5
The requirements of adjusting the software installation:
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
Package included:

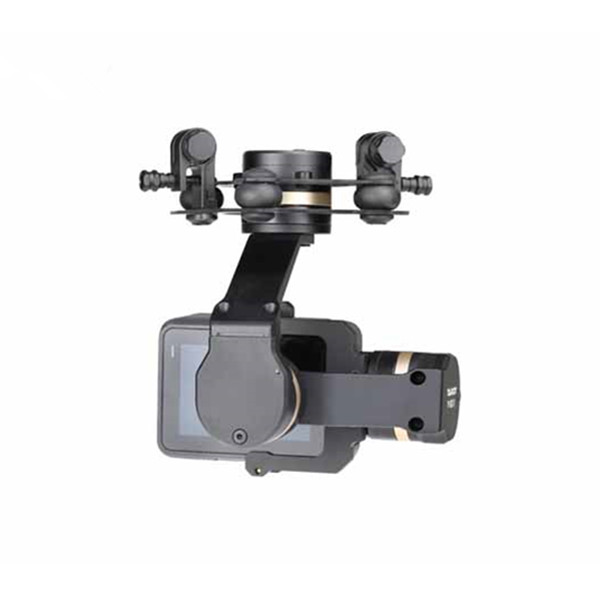

Metal gimbal 3-Axis 160g × 1
PTZ master module (36 × 25 × 11MM) × 1
8P PTZ control and PTZ main cable × 1
5V output, receiver and video cable × 1
USB module (27 × 21 × 7MM) × 1
Flight control cable × 1
Manual × 1
Packing box × 1
Note: not include the camera
Note: not include the camera
,
,
,
,
,
