Description

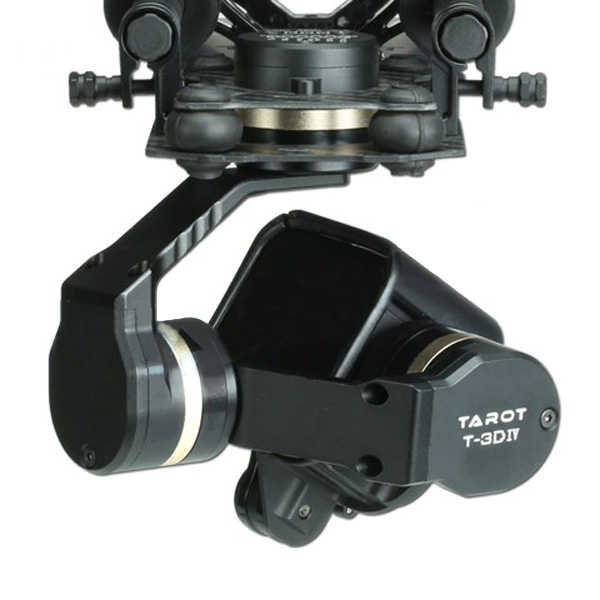

Tarot TL3T02 T-3D IV 3 Axis Brushless Gimbal for Gopro Hero 4 Camera
Note: The camera is not included in the package.
After power has a strong vibration, set the box foam sponge paste as following photo, you can solve the vibration problem.
Specification:
Brand name: Tarot
Item name: TL3T02 Brushless Gimbal
Applicable Camera Type: GOPRO HERO4 SESSION
Input Power: 3S-6S Li (11V-26V)
Operating Current: 30mA (@ 25V) / 50mA (@ 12V)
Stall Current: 350mA (@ 25V) / 700mA (@ 12V)
Attitude control accuracy: ± 0.02 degrees
Support receiver: S-Bus / PPM / DSM
Assistant Software Installation Requirements
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
Working temperature: -20 ℃ ~ + 50 ℃
Maximum dimensions (LWH): 80mm * 90mm * 120mm
Gimbal weight: 153g
Package weight: 360g
Maximum controllable speed
The direction of rotation (PAN): ± 200 ° / s
Pitch direction (TILT): ± 200 ° / s
Roll direction (ROLL): ± 200 ° / s
The controllable range of rotation
The direction of rotation (PAN): ± 125 °
Pitch direction (TILT): -120 ° to + 80 °
Roll direction (ROLL): ± 50 °
User manual, please click here.
Package Included: Camera is not included.
1 X TL3T02 T-3D 3 Axis Brushless Gimbal
