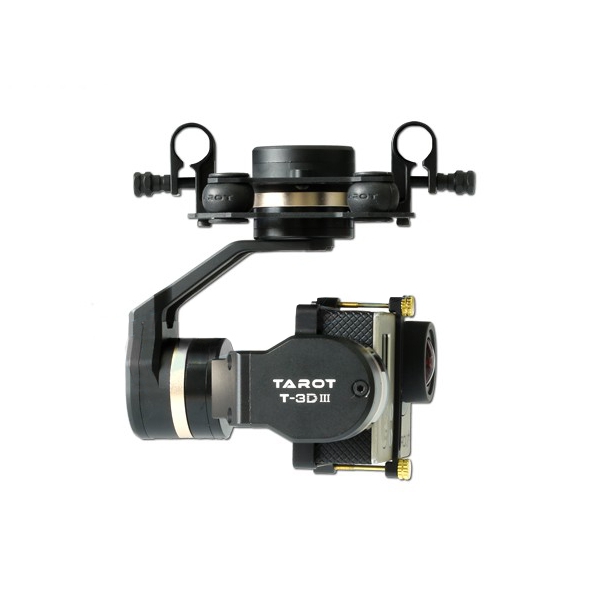

Upgraded Tarot GOPRO 3DⅢ 3 Axis Brushless Metal Gimbal PTZ for Camera GOPRO 4 3+ Gopro3 FPV Quadcopter TL3T01
Description: Software
Brand Name: Tarot
Item Name: GOPRO 3DⅢ
Item NO.: TL3T01
Applicable Camera Type: GOPRO HERO 3/3 + / 4
Input Power: 3S-6S Li (11V-26V)
Operating Current: 30mA ( 25V) / 50mA ( 12V)
Stall Current: 350mA ( 25V) / 700mA ( 12V)
Attitude control accuracy: ± 0.02 degrees
Maximum controllable speed
The direction of rotation (PAN): ± 200 ° / s
Pitch direction (TILT): ± 200 ° / s
Roll direction (ROLL): ± 200 ° / s
The controllable range of rotation
The direction of rotation (PAN): ± 330 °
Pitch direction (TILT): -135 ° to + 45 °
Roll direction (ROLL): ± 48 °
S-Bus / PPM / DSM receiver supports
Working temperature: -20 ~ + 50Celsius degree
Maximum dimensions (LWH): 60 mm * 75 mm * 100mm
Weight: 160g
Weight: 160g
Assistant Software Installation Requirements
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit)
Features:
Upgraded version based on T4-3D
Tarot new 3D gimbal developed on the basis of T4-3D is different from the old version.
With full CNC ribbed slab structure overall industrial design, bringing lightweight and stability of the strongest.
Designed for GoPro, quick installation, bid farewell to the past, cumbersome operations.
Precision-driven algorithms, precise control of the motor, only to present live moment.
Speed-controlled three-axis.
Support computer interface settings, posture lock mode (AL), point to following mode (PF), first-person mode (FPV).
Built-in independent TAROT PTZ dedicated servo drive module.
Packge Included:

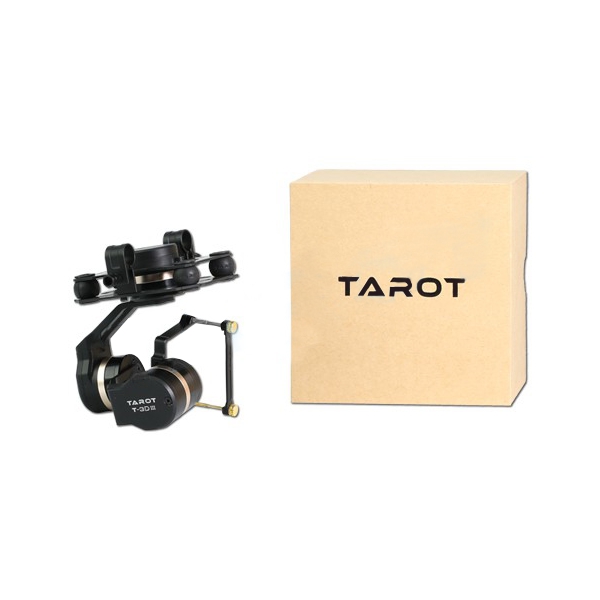

1 x Gimbal
1 x Control Module
1 x 8P Cable
1 x 5V Output AV Cable
1 x USB Module
1 x Flight Control Cable
