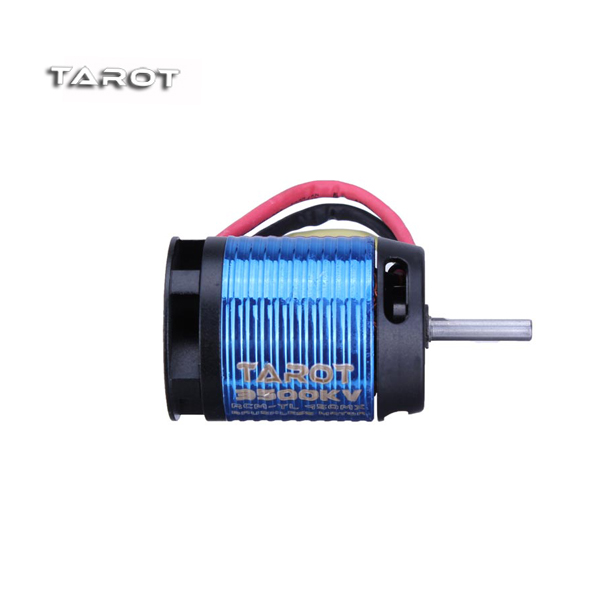

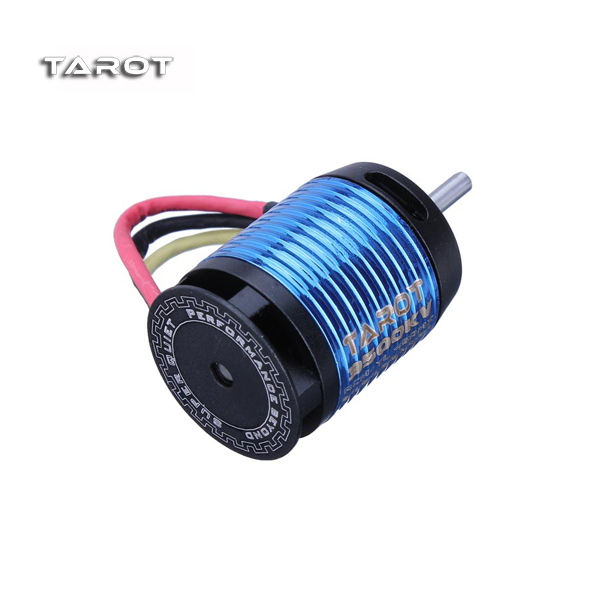

Tarot 450MX (3500KV) Brushless Motor TL450MX-3500
Description:
Item Name: Tarot 450MX (3500KV) Brushless Motor
Brand: Tarot
Item No: 450MX
Stator dia: 22.0 mm
Stator thickness: 19.0 mm
Stator number: 12
Pole number: 8
Number of stitches: 3Turn Delta
Diameter of wire: 8-Strand 0.29mm
V speed: 3500 RPM / Volt
Non-load current: 4.0 Amps
Motor impedance: 0.021 MOhms
Weight: 77g
Motor external dia: 27.80 mm
Gear shaft mounting dia: 3.5 mm
Motor length: 37.35 mm
Shaft length: 52.5 mm
Usage: For 450 rc helicopter.
Package Included:
1 x 450MX(3500KV) Brushless Motor
2 x Socket screw (M3x6mm)
2 x Washer (Φ3xΦ6×0.5mm)
3 x M3.5 gold-plated banana head the public side (max. current 60A)
