Description

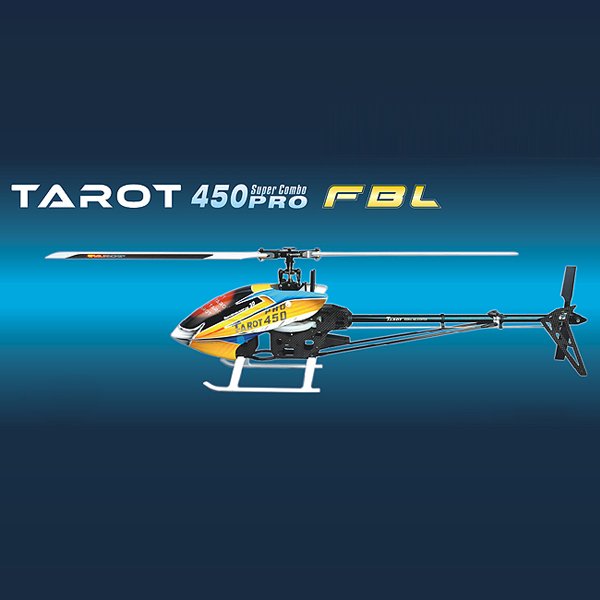

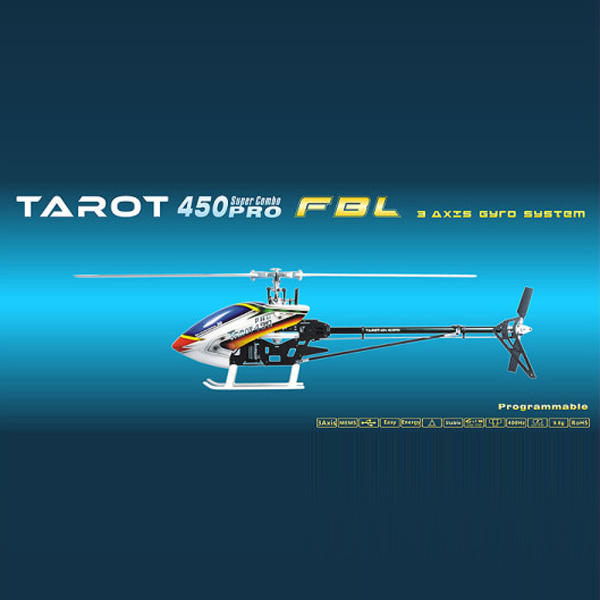

Tarot 450 PRO V2 FBL Flybarless RC Helicopter KIT
Note : The color choose is the rotor head and tail system ,not the canopy.canopy color may vary, randomly sent
| Product: | |||
|
|
|||
| Focus Shot1(Newly improved flybarless rotor head adopts super-lower CG design, with reduced distance between rotor head and frame, effectively improve rolling, auto-spinning, swaying, etc. 3D performance. The newly designed Linkage rod with reverse thread makes pitch-adjustment be more convenient) | Focus Shot2 (Metal CCPM swashplate adopts super-rigid fish-eye bearing, capable of adjusting Compactness easily. The MoS2 nylo design makes bearing be anti-friction, and high speed for swashpate. Metal main shaft block adopts TOKYO imported plastic bearing, greatly improve load) | Focus Shot3(Longer battery mounting plate with integrated ESC mount. Not only is the battery mount more rigid, the battery can be shifted based on its dimension for better CG) | |
| Focus Shot4(Newly designed gyro mount makes the gyro be easily fixed) | Focus Shot5(Newly designed main frame set to simplify servos installation and maintenance) | Focus Shot6(High-rigid carbon fiber frame, integrated main shaft and servo mount, specially designed motor mount improves heat dissipation ability of motor) | |
| Focus Shot7(Vertical rudder servo mount design moving the CG closer to center) | Focus Shot8(Newly improved side frame plate with special 3GX mounting locations. It can be mounted inside the frame, or behind the antirotation guide for better wire management and cleaner look) | Focus Shot9(Unique opposing weighted tail blade grips effectively increase rudder and gyro performance) | |
| Focus Shot10(Single piece integrated landing gear) | Focus Shot11(Fiberglass Painted canopy | ||
|
|
|||
1.Newly improved flybarless rotor head adopts super-lower CG design, with reduced distance between rotor head and frame, effectively improve rolling, auto-spinning, swaying, etc. 3D performance. The newly designed Linkage rod with reverse thread makes pitch-adjustment be more convenient.
2.Improved side frame design, with dedicated 3GX mounting location. 3GX can be placed in between frames, or behind anti-rotation guide, resulting in clean wire management and improved aesthetics.
3.Unibody main shaft and servo mount, with modified side frame connecting points, simplifying servo replacement and improving ease of maintenance.
4.Longer battery mounting plate with integrated ESC mount.Not only is the battery mount more rigid, the battery can be shifted based on its dimension for better CG. In addition, the screw count has been reduced to minimize assembly and maintenance time.
5.High efficiency tail shaft drive design, dramatically reduce power loss associated with belt driven system, and at the same time increase power output.
6.Vertical rudder servo mount design moving the CG closer to center, improving agility during 3D maneuvers.
7.Unique opposing weighted tail blade grips effectively increase rudder and gyro performance, for superior tail locking and higher precision.
8.New aerodynamic canopy with paint scheme resembling the T-Rex 600E Pro, perfectly matched to the helicopter frame to create aesthetic perfection.
Users must have a certain concept of security to operate the R/C helicopters.
Be sure to read and comply with related safety notes of instruction manual before flying.
Length: 638mm
Height: 218mm
Main Rotor Diameter: 710mm
Tail Rotor Diameter: 158mm
Motor Drive Gear: 14T
Main Drive Gear: 150T
Autorotation Tail Drive Gear: 106T
Tail Drive Gear: 25T
| Includes |
●1* Tarot 450 Pro V2 flybarless kit
●1*carbon blade
– See more at: http://www.hobbywow.com/en-tarot-450-pro-v2-fbl-flybarless-rc-heli-kit-tl20006-p233622.htm#sthash.XpetYSyG.dpuf
| Instruction: | Specification: | |||
|
1.Newly improved flybarless rotor head adopts super-lower CG design, with reduced distance between rotor head and frame, effectively improve rolling, auto-spinning, swaying, etc. 3D performance. The newly designed Linkage rod with reverse thread makes pitch-adjustment be more convenient. Users must have a certain concept of security to operate the R/C helicopters. |
Length: 638mm Includes Note: Not included motor, ESC, motor pinion gear, servo and gyro. Note:This is original authentic products of Tarot Product
●1* Tarot 450 Pro V2 flybarless kit |
|||
1.Newly improved flybarless rotor head adopts super-lower CG design, with reduced distance between rotor head and frame, effectively improve rolling, auto-spinning, swaying, etc. 3D performance. The newly designed Linkage rod with reverse thread makes pitch-adjustment be more convenient.
2.Improved side frame design, with dedicated 3GX mounting location. 3GX can be placed in between frames, or behind anti-rotation guide, resulting in clean wire management and improved aesthetics.
3.Unibody main shaft and servo mount, with modified side frame connecting points, simplifying servo replacement and improving ease of maintenance.
4.Longer battery mounting plate with integrated ESC mount.Not only is the battery mount more rigid, the battery can be shifted based on its dimension for better CG. In addition, the screw count has been reduced to minimize assembly and maintenance time.
5.High efficiency tail shaft drive design, dramatically reduce power loss associated with belt driven system, and at the same time increase power output.
6.Vertical rudder servo mount design moving the CG closer to center, improving agility during 3D maneuvers.
7.Unique opposing weighted tail blade grips effectively increase rudder and gyro performance, for superior tail locking and higher precision.
8.New aerodynamic canopy with paint scheme resembling the T-Rex 600E Pro, perfectly matched to the helicopter frame to create aesthetic perfection.
Users must have a certain concept of security to operate the R/C helicopters.
Be sure to read and comply with related safety notes of instruction manual before flying.
Length: 638mm
Height: 218mm
Main Rotor Diameter: 710mm
Tail Rotor Diameter: 158mm
Motor Drive Gear: 14T
Main Drive Gear: 150T
Autorotation Tail Drive Gear: 106T
Tail Drive Gear: 25T
| Includes |
●1* Tarot 450 Pro V2 flybarless kit
●1*carbon blade
– See more at: http://www.hobbywow.com/en-tarot-450-pro-v2-fbl-flybarless-rc-heli-kit-tl20006-p233622.htm#sthash.XpetYSyG.dpuf
