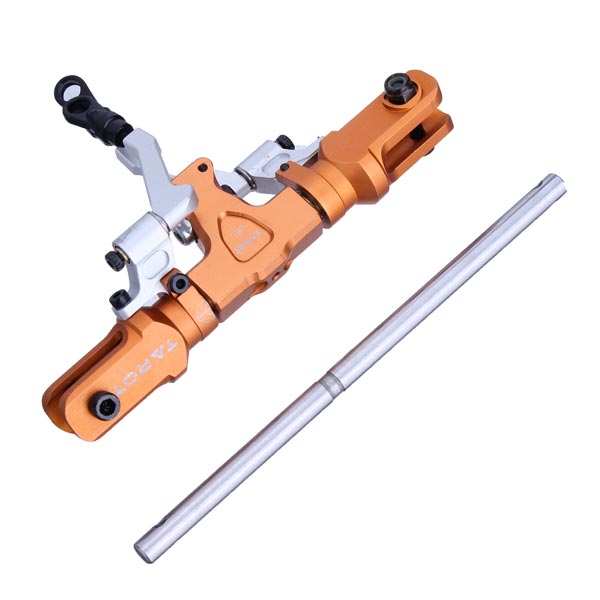

Tarot 450 DFC Split Locking Rotor Head Assembly TL48025-03
Tarot 450 DFC Split Locking Rotor Head Assembly TL48025-03 Orange
Description:
Item Name: Tarot 450 DFC Split Locking Rotor Head Assembly
Brand: Tarot
Item No: 450DFC
Color: Orange
Features:
1).DFC rotor head for Tarot 450 DFC (TL45162/TL48025) and DFC rotor head other modifications.
2).Independent innovation the inclined push rod structure design, unique hinged balanced rolling moment.
3).6061-T6 aluminum CNC multi-axis machining technology.
4).Trapezoidal horizontal axis washer can better pass rubber biasing load.
5).The ultra-low center of gravity and shorter spindle design, the the rotor level close to the body's center of gravity.
6).New DFC main rotor holder using a three-point V-shaped spindle lock design.
7).The new DFC Main Rotor Housing and main rotor holder top laser scale line.
8).DFC strengthen horizontal axis pad 85 ° superhard rubber forming one
9).The new design of large-size bearings folder seat center thrust bearing.
10).New Anti-shot horizontal axis overall tensile design 480 specifications.
Relevant supporting ID:
450 DFC Anti-shot horizontal axis TL48009
450 new large bearing Moderator rotor holder main group TL48013
450 DFC Locking main rotor holder TL48018
450 DFC main rotor holder connected arm TL48026
450 DFC tilt rod TL48027
450 DFC horizontal axis washer TL45000
450 DFC horizontal axis washer TL45167
Specifications:
1 x 450 DFC Main Rotor Housing Set

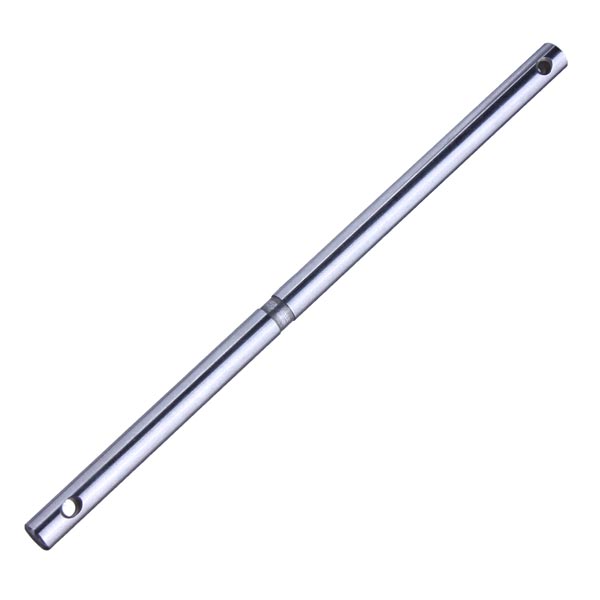

1 x 450 DFC spindle (108MM)
2 x 450 DFC the abscissa washer (Φ4xΦ7.0×4.0mm)
1 x The 450 DFC spindle locking collar screw (M2.5 x10.5mm)
1 x M 2.5 slip nut
2 x The metal bearing Moderator rotor holder
2 x Bearing (Φ4.0xΦ8×3.0mm)
2 x Thrust bearing (Φ4.0xΦ9×4.0mm)
2 x Washers (Φ4xΦ6.5×0.5mm)
2 x Bearing (Φ4.0xΦ9×4.0mm)
2 x Washers (Φ2.5xΦ4.5×0.3mm)
2 x Cup head hexagonal screws(M3 x 15mm)
2 x M3 slip nut
1 x The 450 DFC Anti shot horizontal axis TL48009 (Φ4.0×54.0mm)
2 x 450 metal DFC main rotor holder connected arm
2 x The franc bearing (Φ2xΦ5×2.5mm)
2 x Plane bearing (Φ2xΦ5×2.5mm)
2 x The M2.0 Cup head the hexagonal screw (M2.0x9mm)
2 x Cup head screw, M2.0 (M2.0x5mm)
2 x The 450 metal DFC tilt link
2 x M2.5 only the vent screw (M2.5x10mm)
2 x 500 DFC Main Rotor ball head buckle TL50186
2 x The M2.0 Cup head Hexagon collar screw (M2.0x15mm)
Package Included:
1 x Tarot 450 DFC Split Locking Rotor Head Assembly(not included swashplate)
Note: Thrust bearing mounting need to pay attention to the, IN outside diameter of the retaining ring be installed close to the location of the Vanda, which can effectively smoot Slip transfer Rally.Thrust bearing steel copper concave inwardly,in order to prevent lubricating oil thrown.
