Description
The F45A just got a revision adding a 10V 2A BEC!

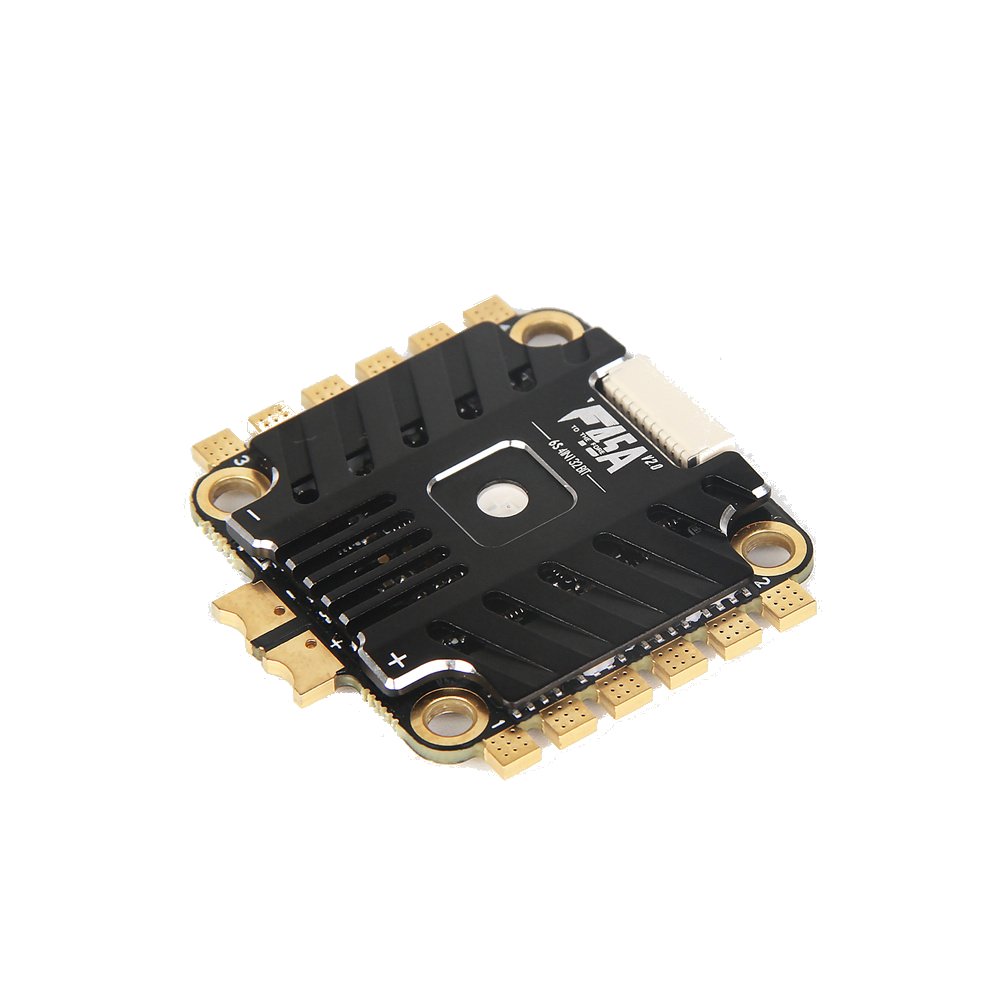

This ESC is T-Motor's 4-in-1 version of their popular F45A ESC. This 4-in-1 ESC packs 45A into an industrialized PCB layout made with premium features such as a 32bit main control chip, BLHeli_32 firmware, and 6s support.
The F45A 4-in-1 comes with a heatsink attached to keep heat away from sensitive electronics.
Another small bonus is the 4 x motor wire PCBs that come with this ESC. These go on your quad arms and help prevent damage to your motor wires from prop strikes or other damage. A neat little touch to include them.
Features:
-32bit Main Control Chip: Compared with traditional MCU of 8 bit, 32bit stm32f051 main control chip enjoys the advantage of fast computing speed and multiple functions.
-Fast Response Speed: Prompt and accurate response on throttle signal receiving for the euphoria from zero lag operation.
-Original BLHeli_32 Firmware: Original BLHeli_32 firmware with powerful performance and diverse functions capable of ESC parameter setting and firmware upgrading makes the ESC far more reliable and efficient.
-Now includes a 10V 2A BEC for powering your FPV electronics.
Specifications:
Input Voltage: 3-6S
Con. Current: 4*45A
Peak Current (10S): 4*53A
BEC: 10V 2A
Size: 45×417.3mm
Weight: 17.3g

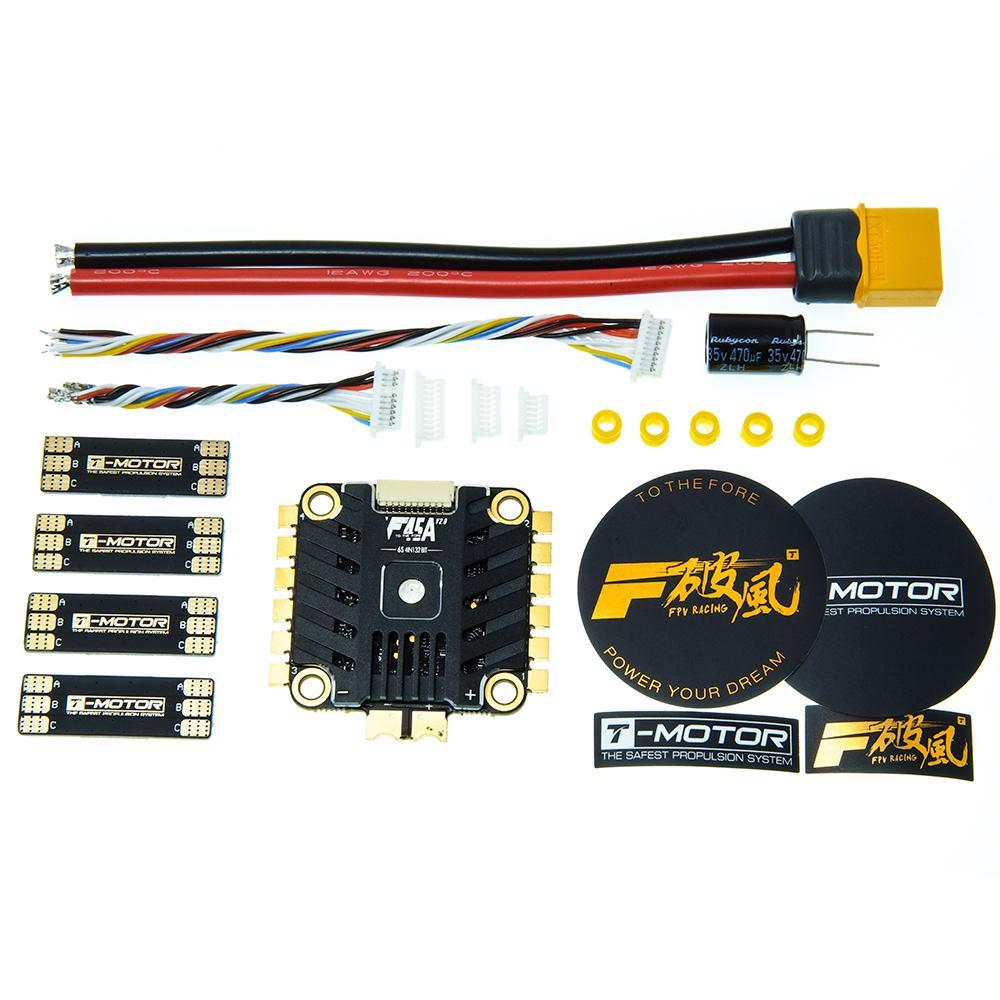

Package Included:
1 x T-Motor F45A V2.0 3-6S 4-in-1 ESC
4 x Damping Rubbers
4 x Motor Wire PCB
2 x 8pin wiring harness (1x 70mm, 1x 30mm)
1x XT60 Lead
1 x 35v 470uf Capacitor
