Description
T-motor F40 PRO II 2306 1750KV 3-6S Brushless Motor CW Thread for RC FPV Racing Drone
The Tiger Motor F40 PRO II Motor has been designed and built specifically for FPV Racing. This 1750KV version of the F40 PRO II is designed for drone racing with 6s batteries.
Coming in at only 30.8g, including wires, the F40 PRO II is very light for the power it can dish out. Another amazing feature are the high temperature silver core windings. These windings are able to withstand much higher temperatures than conventional windings. Additionally, the top of the stator has an anti-slip design that keeps your props stable during high intensity flights.
Sepcification:
Brand name: T-motor
Item name: F40 PRO II 1750KV brushless motor
KV: 1750KV
Configuration: 12N14P
Shaft Diameter: 4mm
Motor Size: 2306
Motor Dimensions (Dia.*Len): Φ27.9×32mm
ldle current@10v(A): 0.6A
No.of Cells(Lipo): 3-6S
Cable length: 150mm
Weight with wires(g): 30.8g
Weight without wires(g): 27.3g

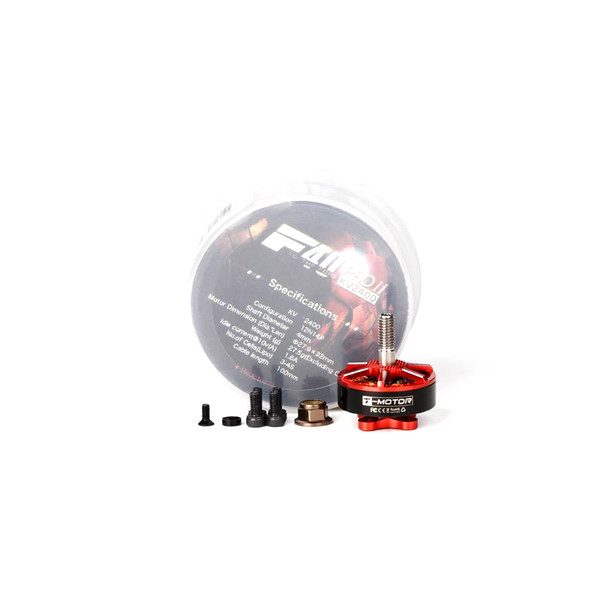

Package included:
1x F40 PRO II motor
1x bag of screws & nuts
