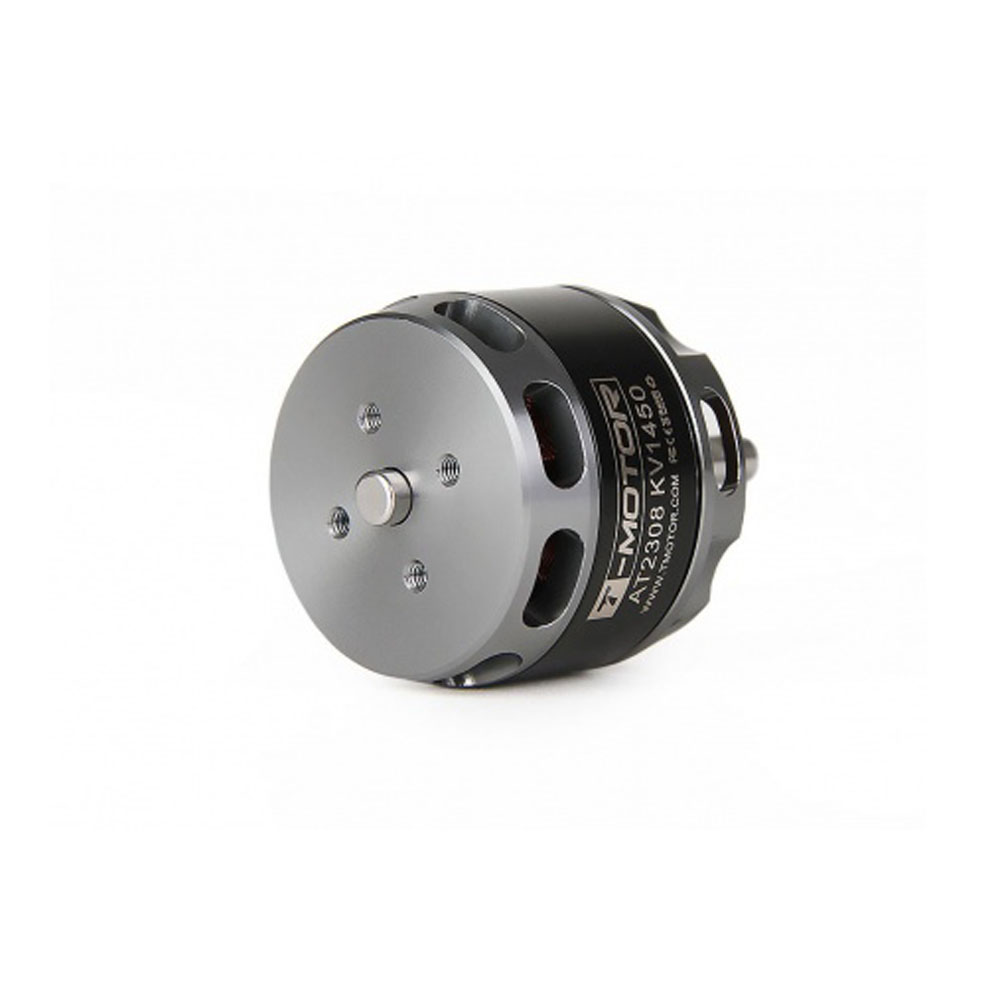

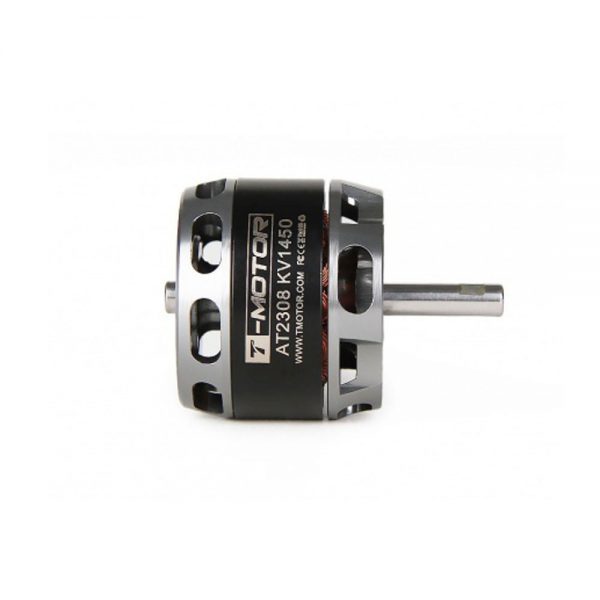

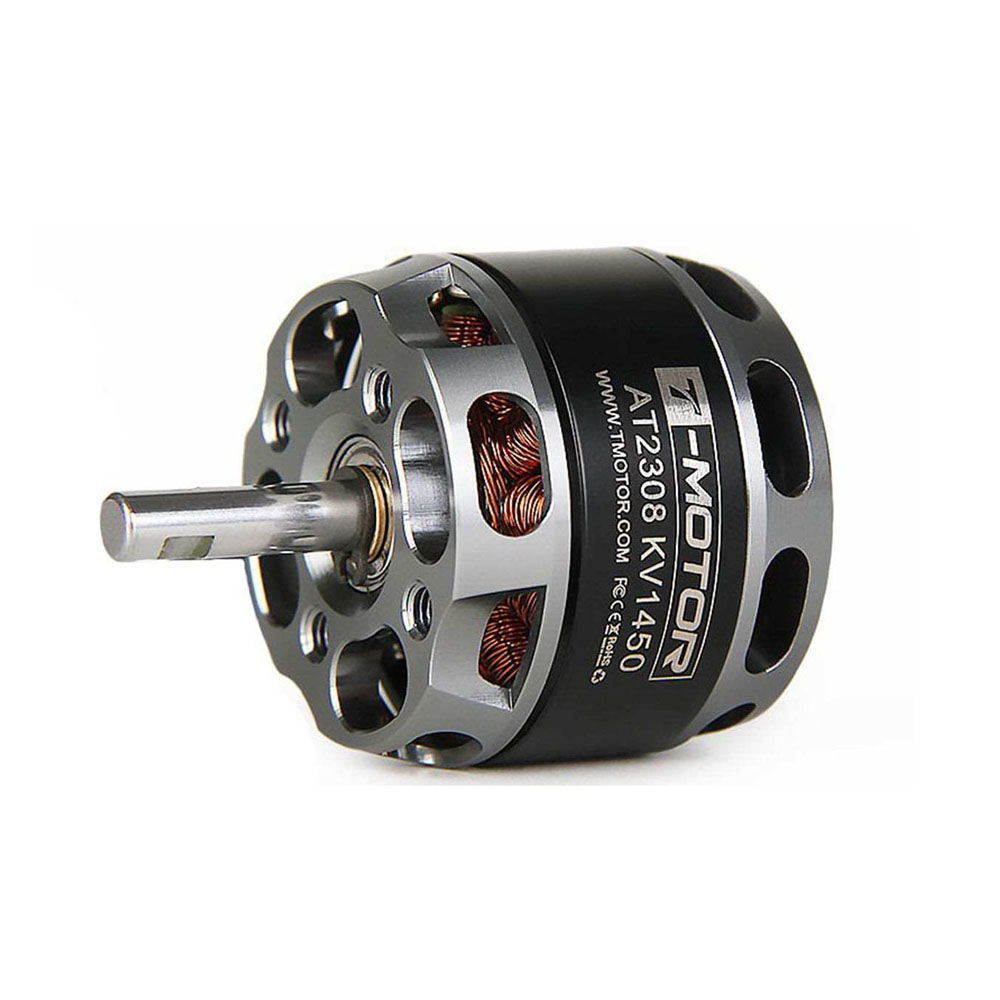

T-Motor AT2308 Long Shaft 1450KV 2600KV Brushless Motor For RC Airplane Fixed Wing Model
Description:
Brand name: T-Motor
Model: AT2308
Optional model: 140KV, 2600KV (Optional)
1450KV Specification:
Motor size: φ28.8*40.5mm
Lead: 22# AWG 100mm
Shaft diameter: IN: 4mm, OUT: 4mm
Idle current(10V): 0.8A
Maximum power(180s): 250W
Weight (includes cable): 47g
Weight (includes cable): 47g
Internal resistance: 90mΩ
Configuration: 12N14P
Peak current(180s): 23A
Peak current(180s): 23A
Rated current(Lipo): 2-4S
Recommendation: /
Motor size: φ28.8*40.5mm
Lead: 22# AWG 100mm
Shaft diameter: IN: 4mm, OUT: 4mm
2600KV Specification:
Motor size: φ28.8*40.5mm
Lead: 22# AWG 100mm
Shaft diameter: IN: 4mm, OUT: 4mm
Idle current(10V): 1.8A
Maximum power(180s): 300W
Weight (includes cable): 48g
Weight (includes cable): 48g
Internal resistance: 28mΩ
Configuration: 12N14P
Peak current(180s): 28A
Peak current(180s): 28A
Rated current(Lipo): 2-4S
Recommendation: /

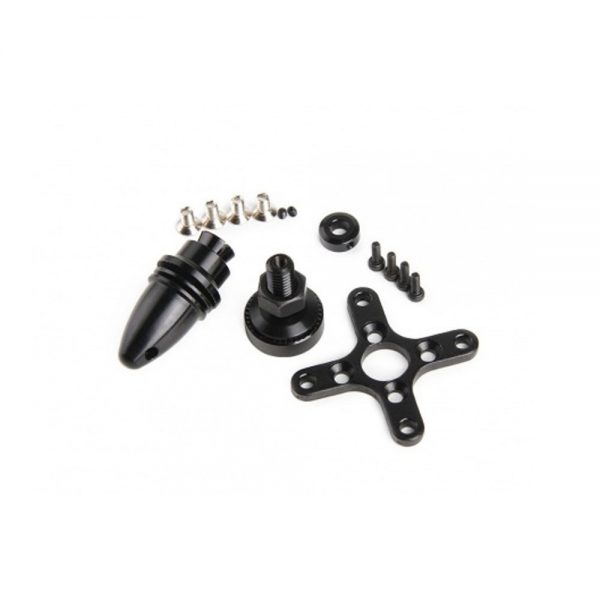

Package included:
1x T-motor AT2308 1450KV 2600KV Brushless Motor
