Description
Description:
Item Brand:Surpass Hobby
Item Number:F540 V2(F540/9T, F540/12T)+60A

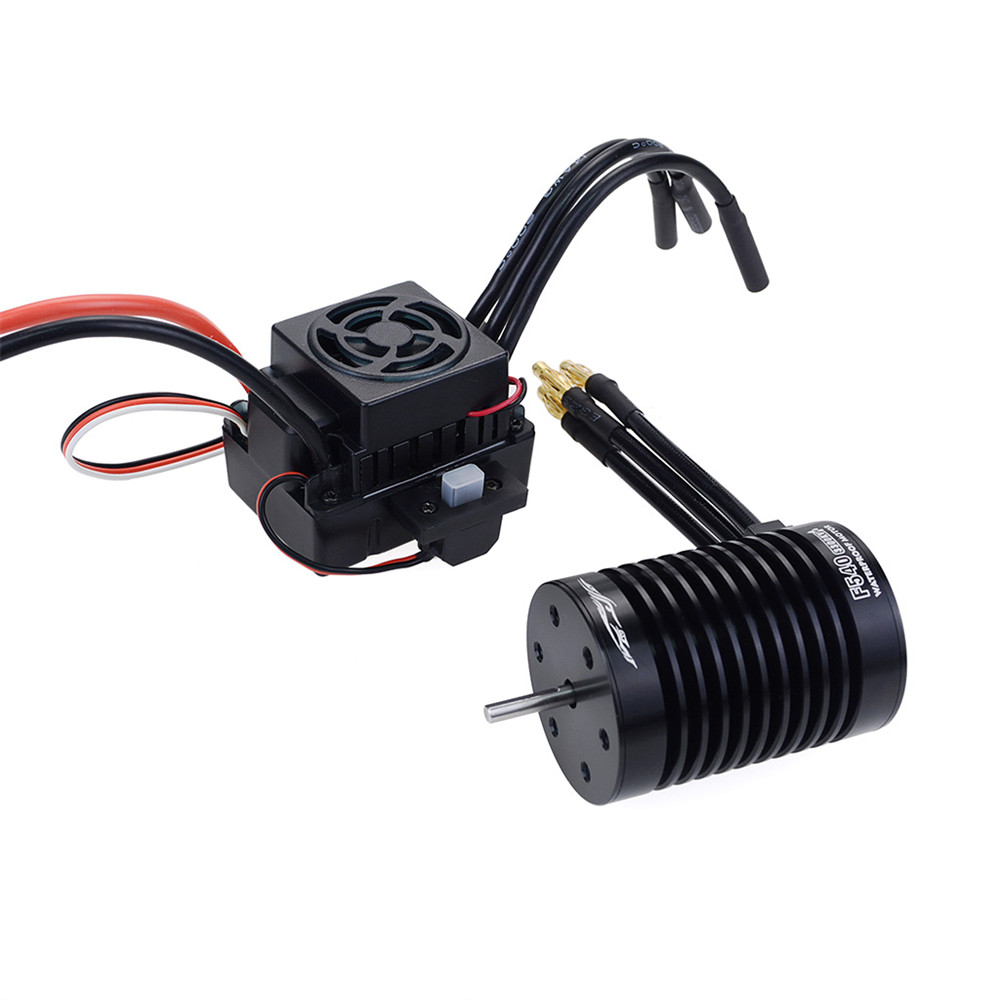

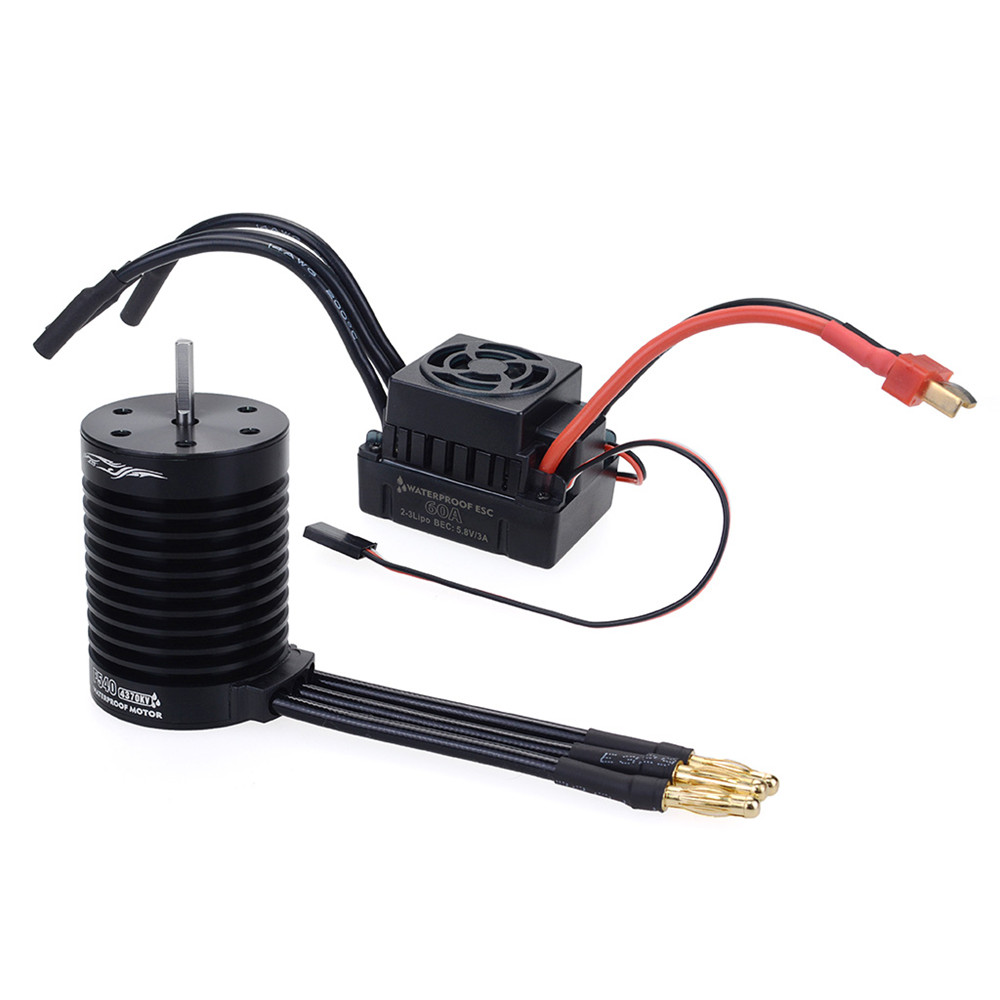

Item Name:RC car motor +esc set
Material:Metal and plastic
Color:Black
The Size of the Motor:Length 50mm,diameter 36mm,shaft diameter is 3.175mm,length of extended shaft is 15mm
The Size of the ESC:51.5*38.5*38.5mm
The Weight of the Motor/ESC:About 125g/76g
Recommendating Program Card:product id:1057127
Fit For:1/10 brushless rc cars
The Specification of the Motor:
KV:4370KV/3300KV
Watts:800
Max Voltage:<12V/<17V
Max Amps:66A/47A
Rotor Poles:4
IO:3.2A/1.9A
Resistance:0.0185/0.0285
Max RPM:50000
Connector:4.0mm gold
The Specification of the ESC:
Cont.Current:60A
Burst Current:360A
Motor Type:Sensorless Brushless Motor
For 6s Lipo or 6 cells NiMH
1.On-road 3660-size or smaller motor with the kv <4300
2.Off-road/buggy/monster 3660-size or smaller motor with the kv <3300
For 3s lipo or 9 cells NiMH
1.On-road 3660-size or smaller motor with the kv <3300
2.Off-road/buggy/monster 3660-size or smaller motor with the kv <2600
Suitable Car:1/10 car
Resistance:0.0007ohm
Battery:2-3 cells lipo/4-9 cells NiMH
BEC Output:5.8V3A(switch mode)
For the esc manual,please click here
Features:
Package included:

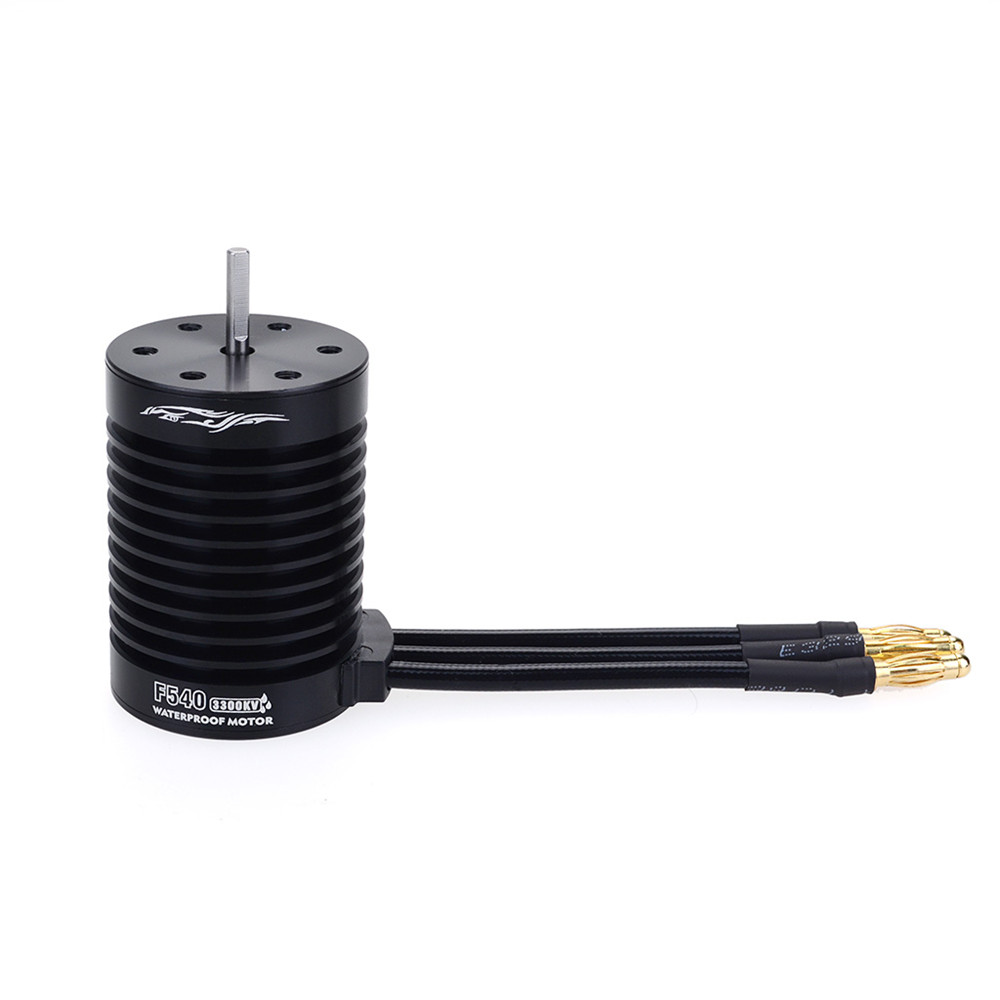

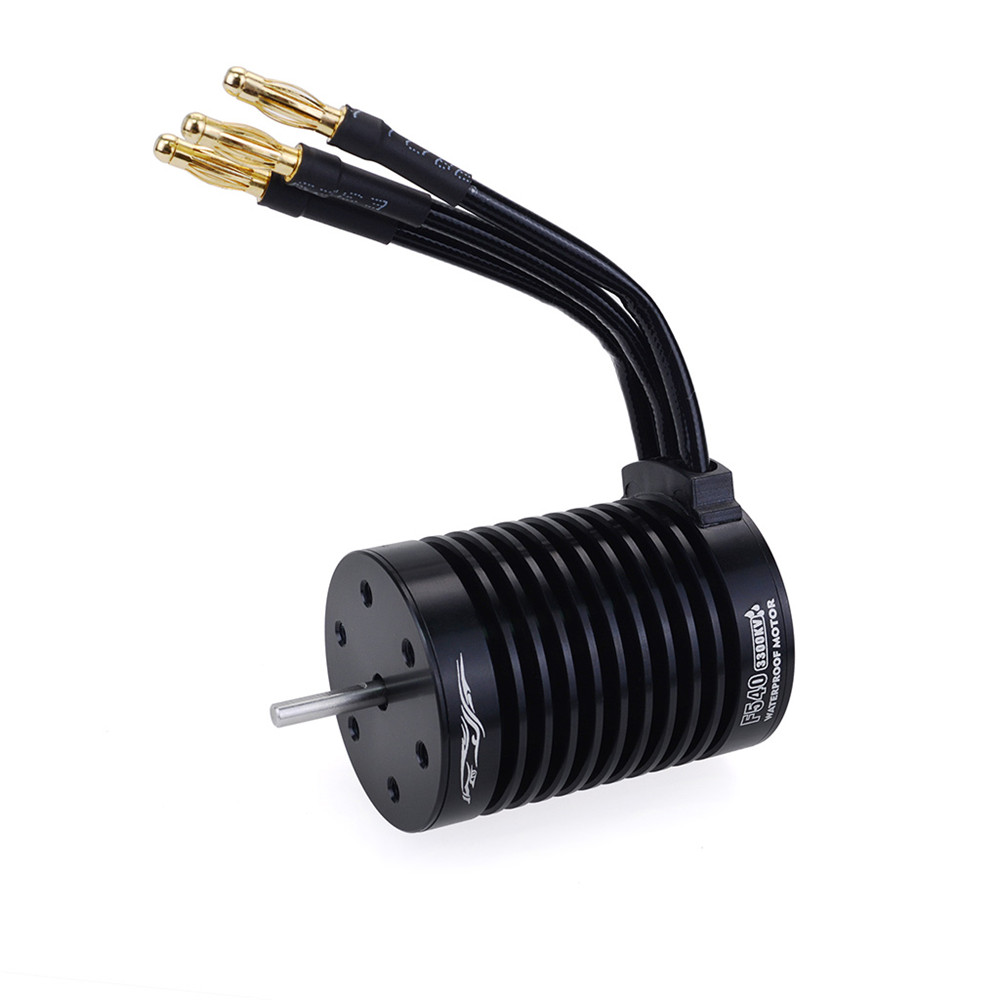

1X F540 V2 Brushless Motor
1X 60A ESC
1X Manual
