Description
Description:
Item Brand:Surpass Hobby
Item Number:F540 V2(F540/9T, F540/12T)

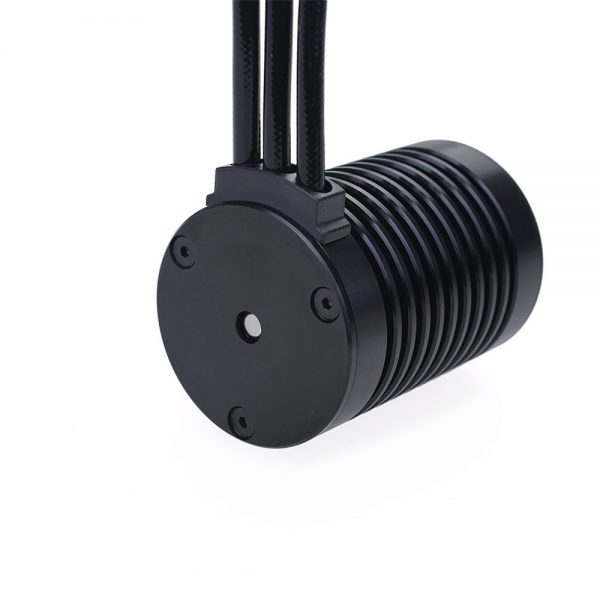

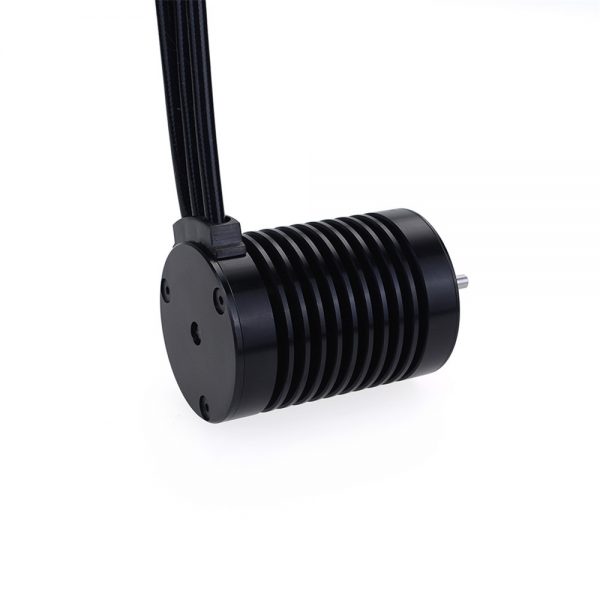

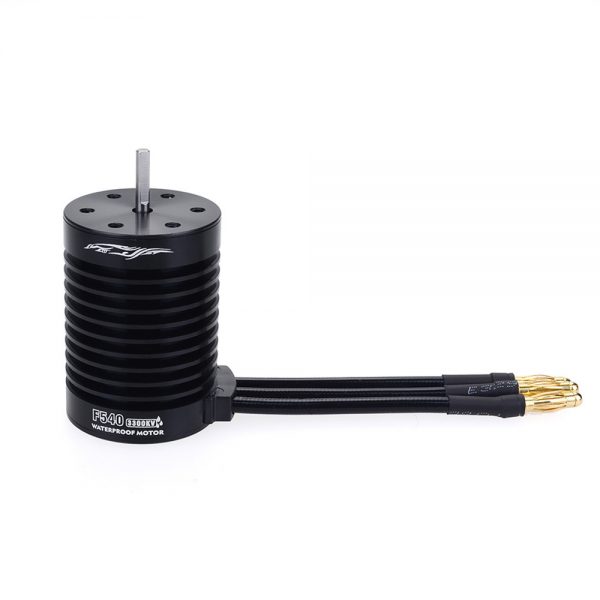

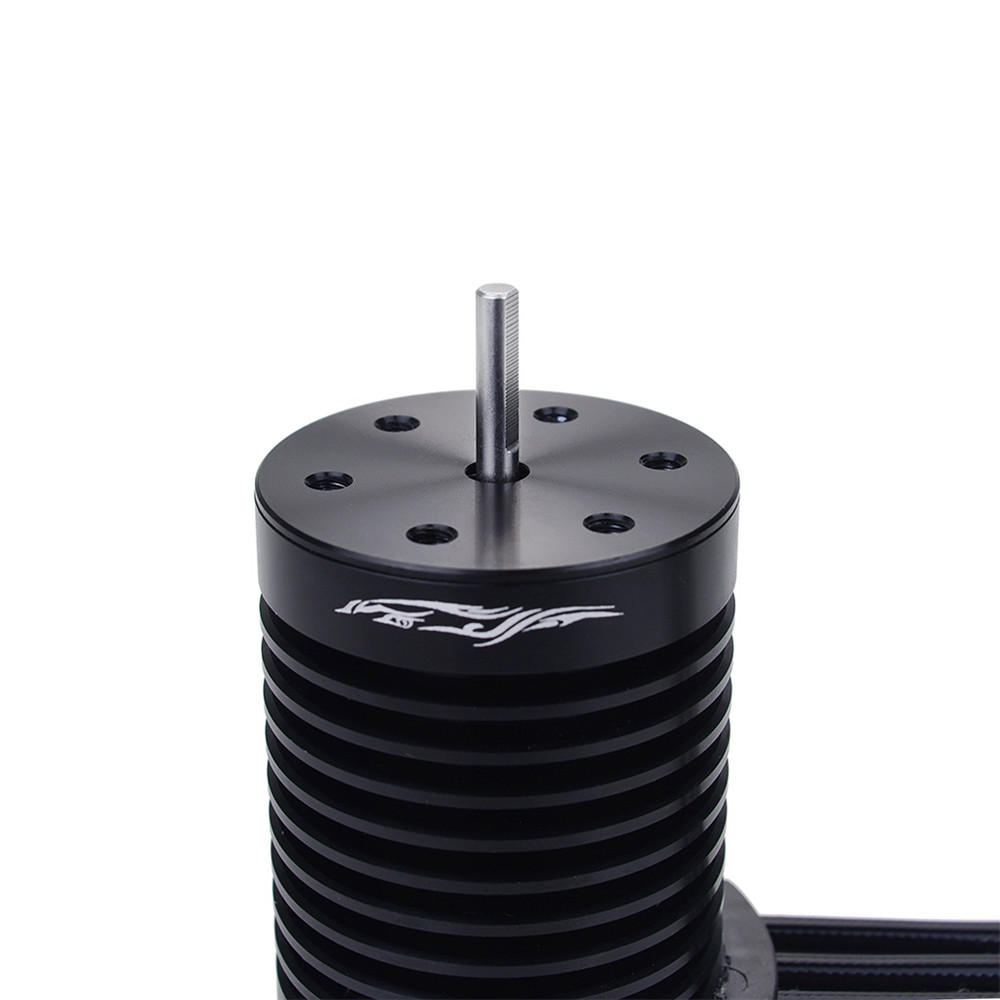

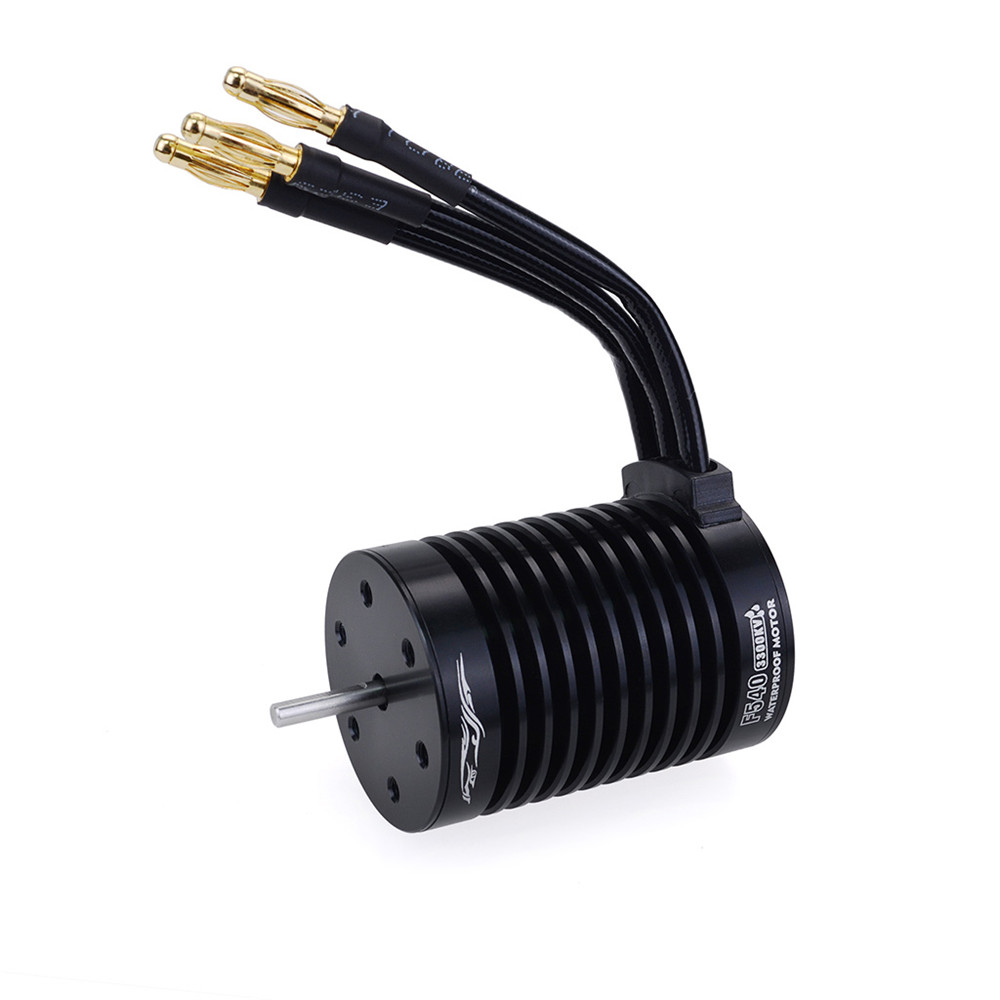

Item Name:RC car motor
Material:Metal and plastic
Color:Black
Product Size:Length 50mm,diameter 36mm,shaft diameter is 3.175mm,length of extended shaft is 15mm
Product Weight:About 125g
Recommendating ESC:surpass hobby 60a esc
Fit For:1/10 brushless rc cars
Specification:
KV:4370KV/3300KV
Watts:800
Max Voltage:<12V/<17V
Max Amps:66A/47A
Rotor Poles:4
IO:3.2A/1.9A
Resistance:0.0185/0.0285
Max RPM:50000
Connector:4.0mm gold
Features:
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator – Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion
Package included:
1X Brushless Motor
