Surpass Hobby Waterproof F540 3000KV Brushless Motor +45A ESC For 1/10 Rc Car Parts

$33.99

Local Warehouse
Cheapest Prices Worldwide
Fast Postage Available
100% Customer Satisfaction
Quality Guarantee
Buy Direct From Supplier

Category:

Description

Description:
Features:
4 pole 12 slot hi-torque motor design
CNC Machinced 6061 Billet Aluminum Heatsink Can
High purity copper windings maximizes efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator -Super Thin(0.35mm) Laminations
Removable/Replaceable Rotor
Precision engineered for maximum energy conversion

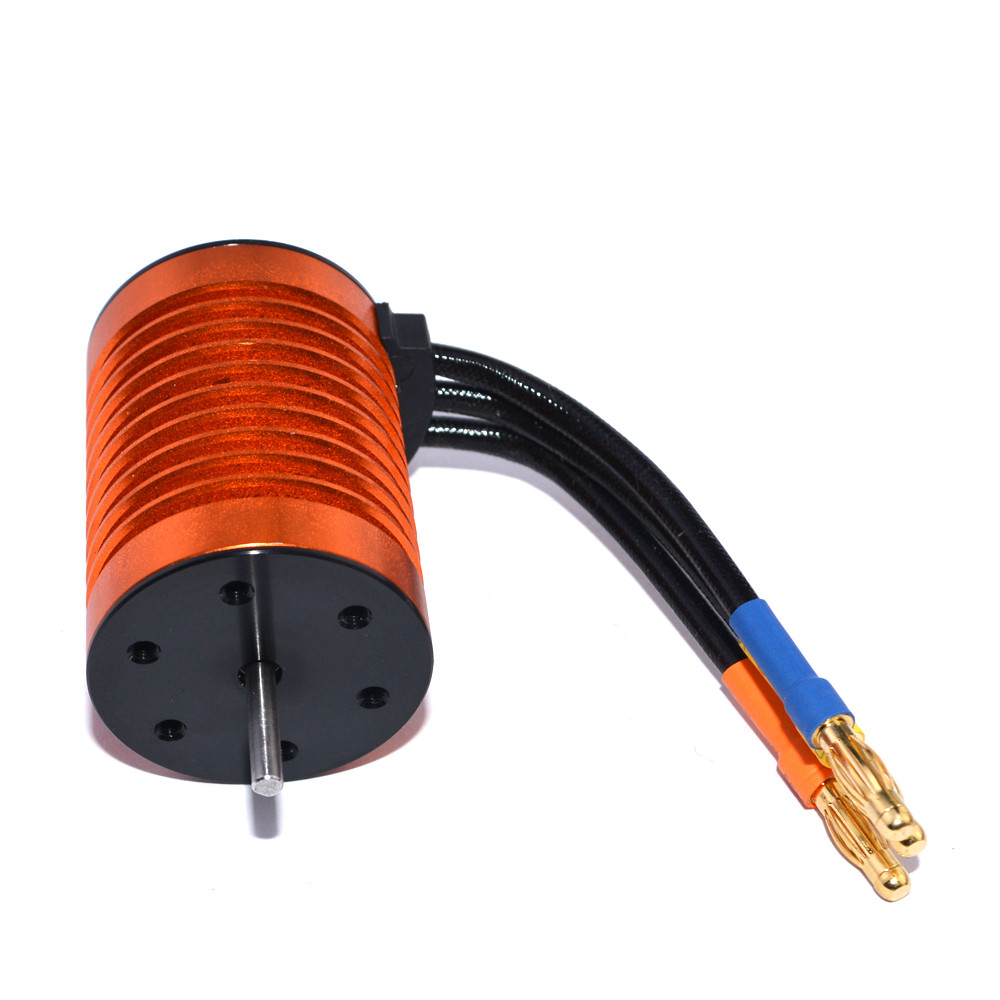

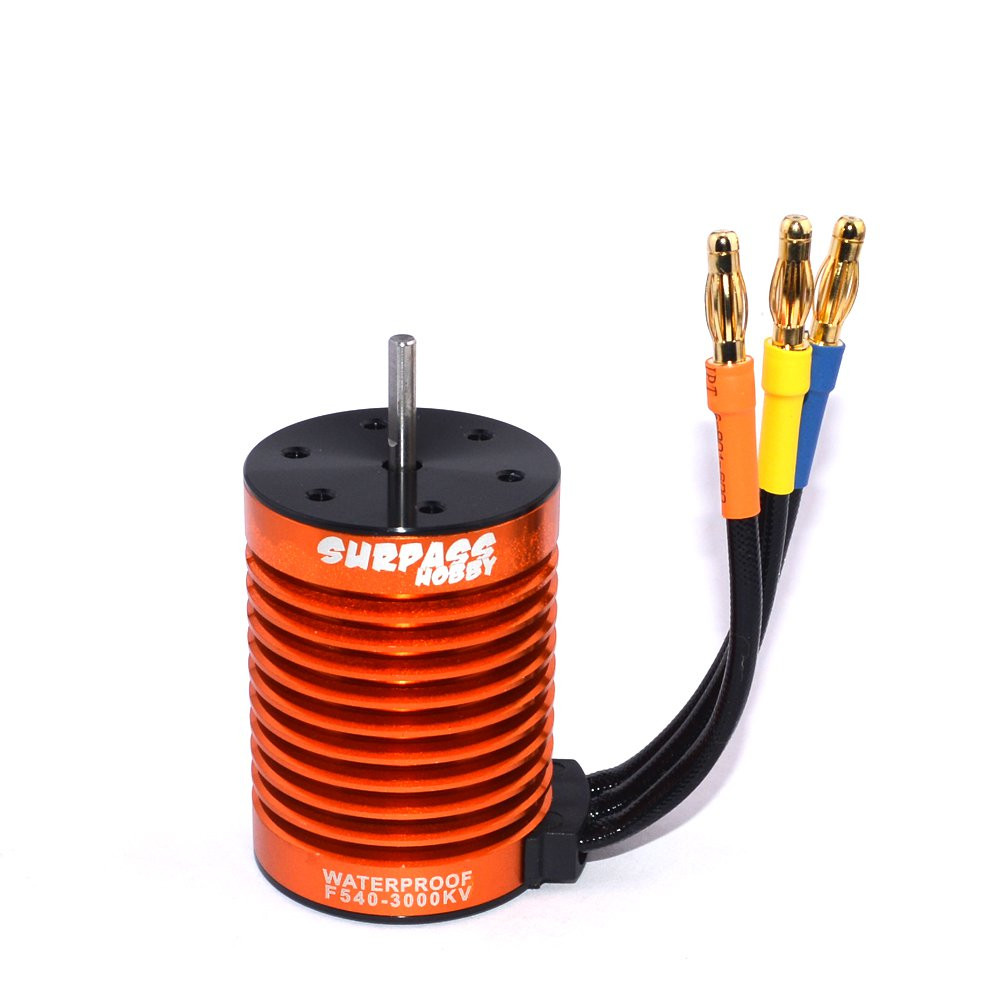

Motor Specifications:
Material: Metal
Main Color: Gold
Recommend Model: RC Model 1/10 Car
KV(RPM/Volt): 3000KV
Max RPM: 50000
Watts: 820W
Max voltage: <18V
Max Amps:45A
Diameters: 36mm with fins
Length: 50mm
Length of extend shaft:15mm
Shaft diameter: 3.175mm

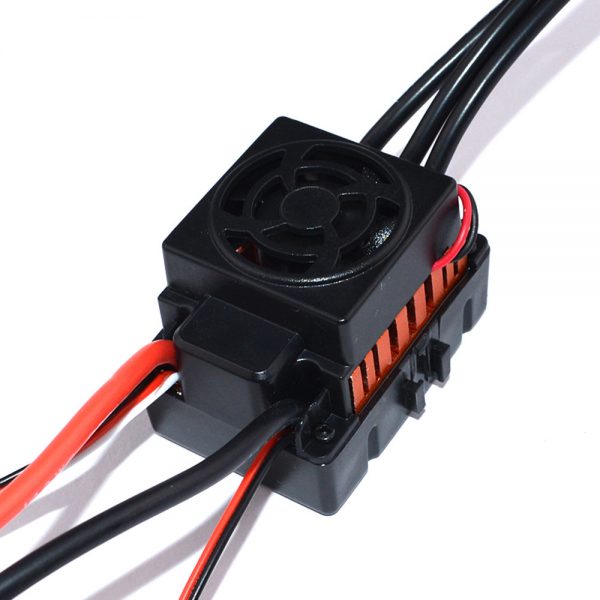

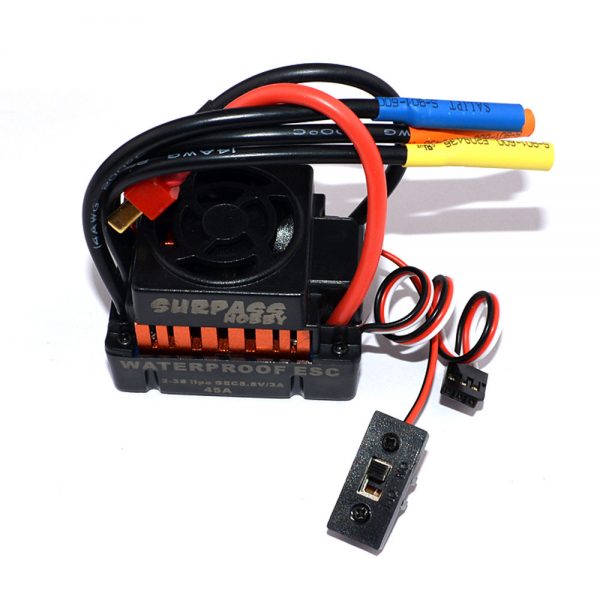

ESC Specifications:
Material: ABS
Main Color: Black
Suitable car:1/12.1/10 car
Continue current: 45A
Burst current: 180A
Resistance:0.0014ohm
Battery:2~3 cells Lipo/4~9 cells NiMH
BEC output:5.8V/3A(switch mode)
Dimension: 50*36*36mm
For the esc manual,please click here


Package included:

1x Brushless Motor
1x ESC Speed Controller
1x English Manual
