Description
Features:
4 pole 12 slot high-torque motor design
3.175mm shaft diameter
High purity copper windings maximizes efficiency
Precision engineered for maximum energy conversion
Precision balanced rotor,smoothness for best reliability and maximum RPM
Mutiple protection features: Low voltage cut-off protection, over-heat protection, throttle signal loss protection
Bulit-in 5.8V/3A BEC
Suit for 1/10 scale RC car
Motor Specifications:
Watts: 900W
Max voltage: <13V
Max Amps: 69A
KV(RPM/Volt): 3900KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
ESC Specifications:
Item name: waterproof ESC
Continue current: 60A
Burst current: 320A
Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 50 * 35 * 34mm / 2.0 * 1.4 * 1.3in (without cables)
Notice:
Please kindly refer to the sutiable battery for the Motor/ESC, don't use too large power battery when you use it at the first time.
Please kindly refer to the sutiable battery for the Motor/ESC, don't use too large power battery when you use it at the first time.
Package Information:
Package size: 10.5 * 8 * 6cm / 4.1 * 3.2 * 2.4in
Package weight: 293g / 10.3oz
Gift box package
Package List:

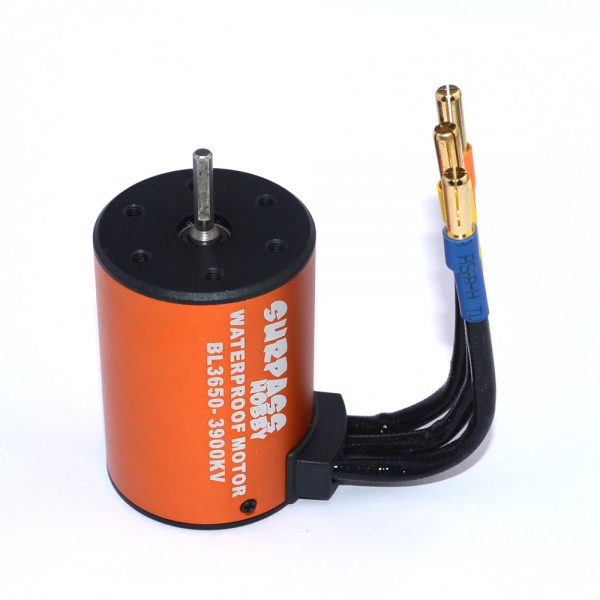

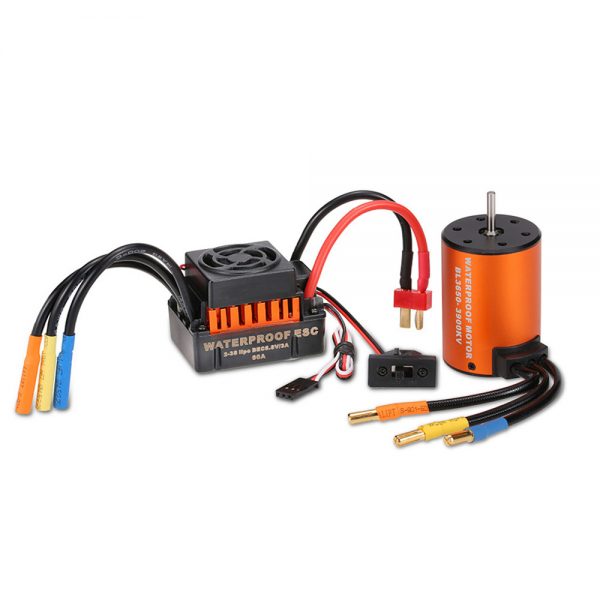

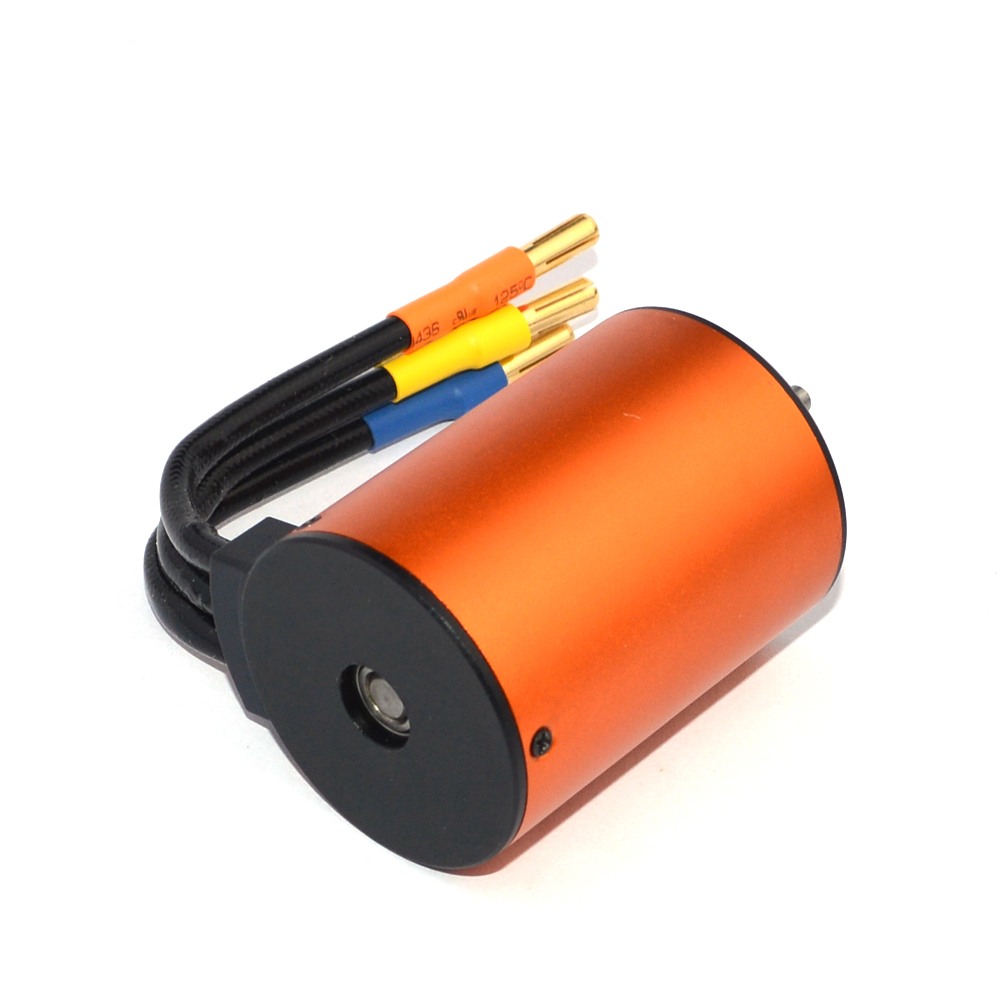

1 * 3650 3900KV Motor
1 * Waterproof 60A Brushless ESC
