DECLARATION
This is Electronic Speed Controller (ESC) for Crawler Brushed. High power system for RC model is very dangerous, so please read this manual carefully. Since we can’t control over the correct use, installation, application, or maintenance of our products, we’ve no liability shall be assumed nor accepted for any damages, losses or costs resulting from the use of the product. Any claims arising from the operating, failure of malfunctioning etc. will be denied. We assume no liability for personal injury, consequential damages resulting from our product or our workmanship.
FEATURES
1. Specially designed for RC Crawler Brushed car with excellent throttle linearity and driving feel.
2. Compatible with brush motor.
3. The strong resistant current capability, excellent heat dissipation.
4. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection /
5. Easily programmed and compatible with pocket-sized program card.
Specifications
1. Cont. Current/ Burst Current:60A/320A.
2. Resistance:0.0014ohm
3. Motor Type: brush motor.
4. Suitable Car:1/10 Crawler Brushed.
5. Battery:2~3 cells Lipo,4~9 cells NiMH.
6. BEC:6V/2A (switch mode).
7. Dimension:32mm*37mm*18mm
Instuctions
1. Connect BEC wires with the receiver
2. Connect motor wires with ESC
3. Turn on the transmitter
4. Connect battery pack with ESC then switch on the ESC.
5. When the connection of motor and battery is finished, the motor emits “Beep” tone.
6. When the throttle stick is in the neutral position, the motor re-emits “Beep” tone.
7. The ESC is workable.
Troubleshooting
1. If after power on, motor can’t work, no sound is emitted, please check the connections between battery pack and motor.
2. If the motor emits a “Beep” tone Only, please check all the connections: BEC wires, transmitter and receiver, throttle signal wires, etc. please check the transmitter TH.TRIM and adjust it to the motor re-emits “Beep” tone.
3. If the car can’t be speed up, please check either voltage of the battery pack is too low or the temperature of ESC is too high. If the voltage of the battery pack is too low, please replace the battery pack. If the temperature of ESC is too high, please check all connections. If not, please push the button EPA on your remote control.
4. If the car stops suddenly while in working state, please check the motor’s connections, and the roadblock.
5. If the car runs in the opposite direction, which the transmitter is available, please swap two wire connections between the ESC and the motor.
Package list:

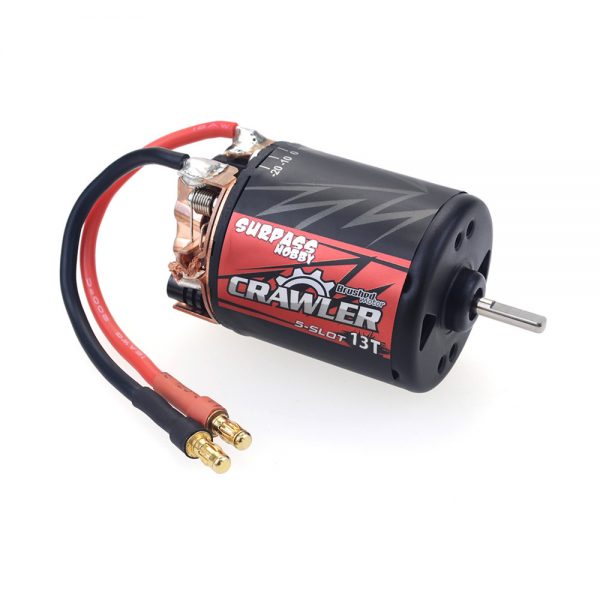

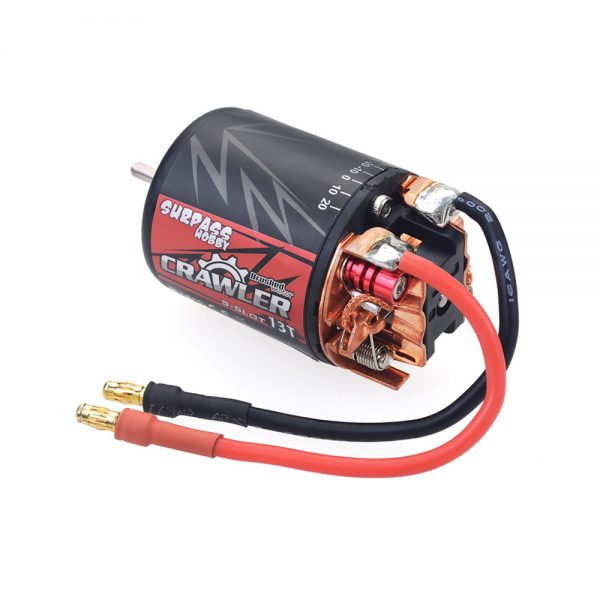

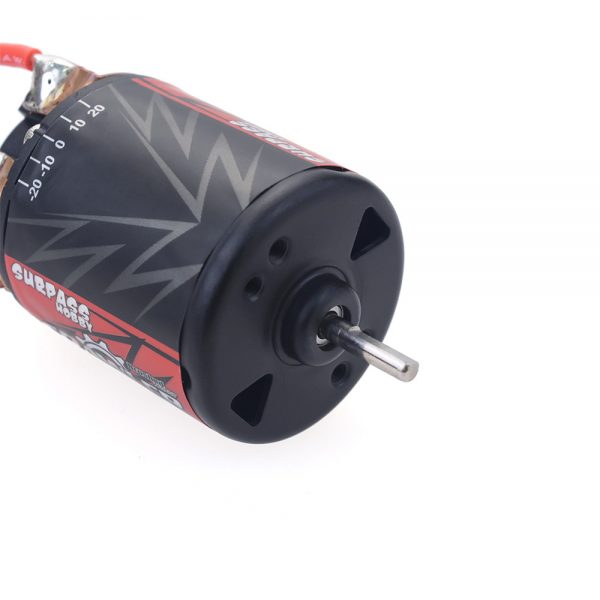

1x motor
