Description
Supra-F4-12A V1.0 F4 Flight Controller AIO OSD BEC Built-in 12A BL_S ESC & 40CH 200mW VTX Stack
Specification:
Model: Supra-F4-12A V1.0
Item Name: F4 Flight Controller AIO OSD BEC Built-in 12A BL_S ESC & 40CH 200mW VTX Stack
MCU: STM32F411
IMU: MPU6000 gyro/accelerometer (SPI)
IMU: MPU6000 gyro/accelerometer (SPI)
OSD: BetaFlight OSD w/ AT7456E chip
Barometer:NO
BEC Output: 5V@1A
Integrated LC Filter
Firmware target: MATEKF411
ESC MCU: BB21F16G
Continuous current: 12A
Input:2-4s lipo
Supports Dshot600 ,Oneshot,Multishot
Current meter: 210
Target: G_H_30
Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
Installing Hole: 25.5×25.5mm, M2
VTXinput voltage: DC 4.5-5.2V
VTX Input current: 200MW = 500 MA
Power switching: third gear 25MW, 100MW, 200MW
Signal channel: 40
Frequency switching: manual button / OSD (IRC Tramp) (simultaneous support)
Antenna interface: IPEX
Dimensions: 24mm*27.5mm, mounting holes 25mm*25mm.
Weight: 7.6g

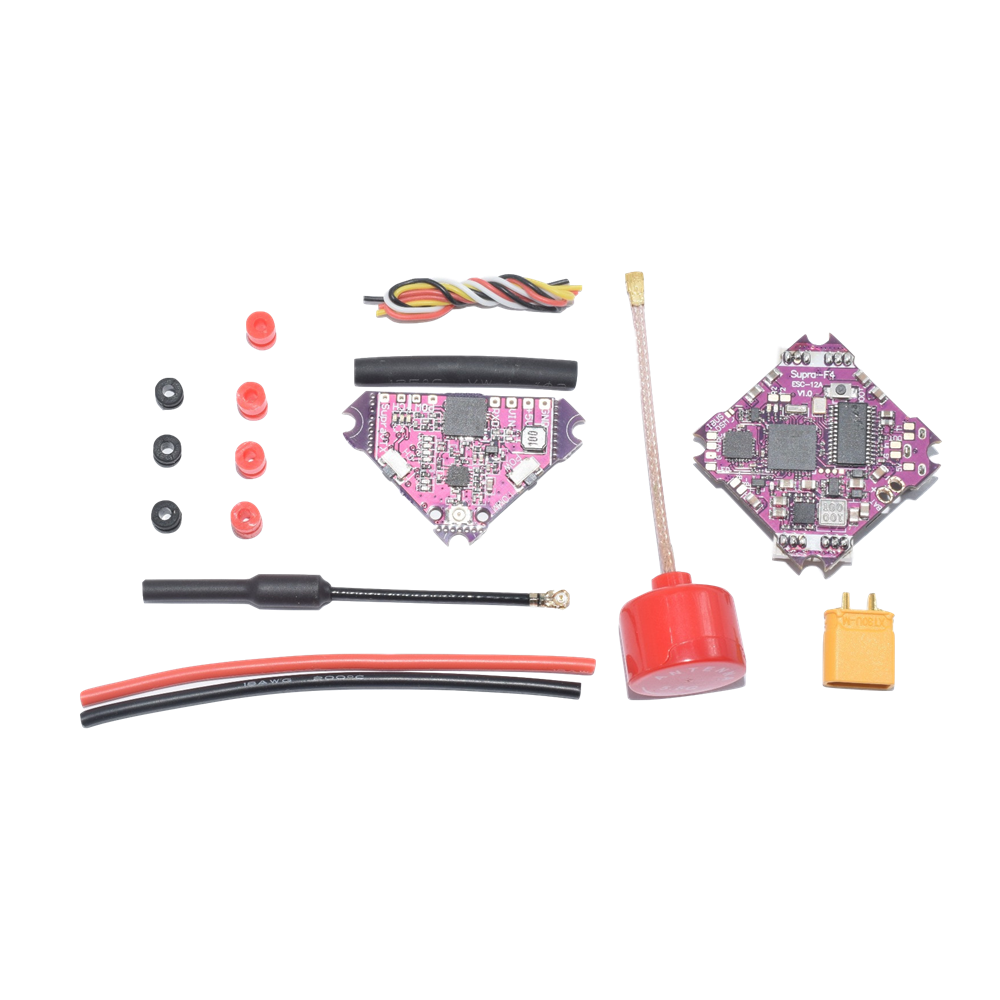

Package Included:
1 x Supra-F4-12A Board
2 x 20AWG cable
1 x AMASS XT30 Plug
7x Soft Silicone Shock Standoff

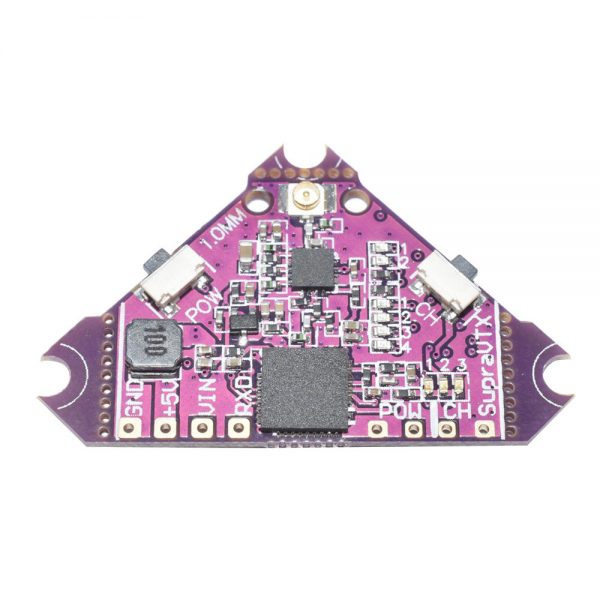

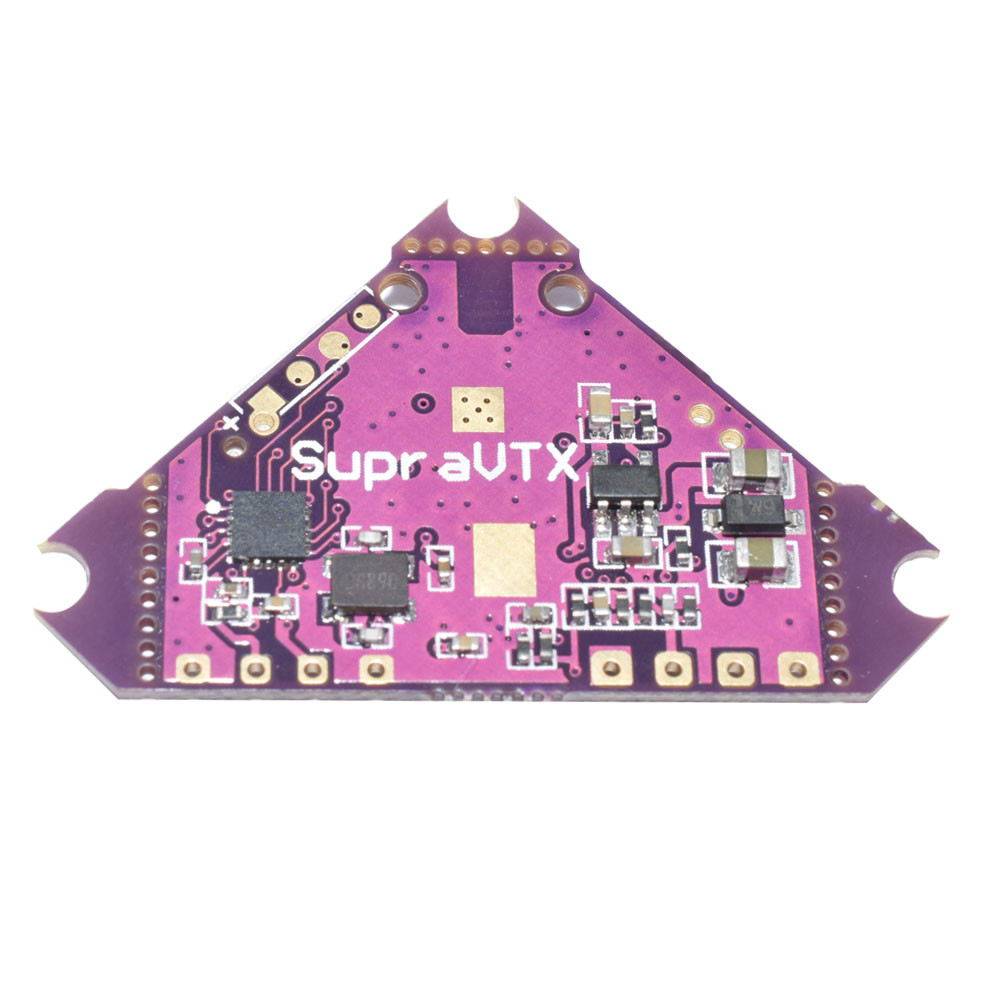

1 x Supra-VTX-5840 Image Transmission Module
1 x Antenna
